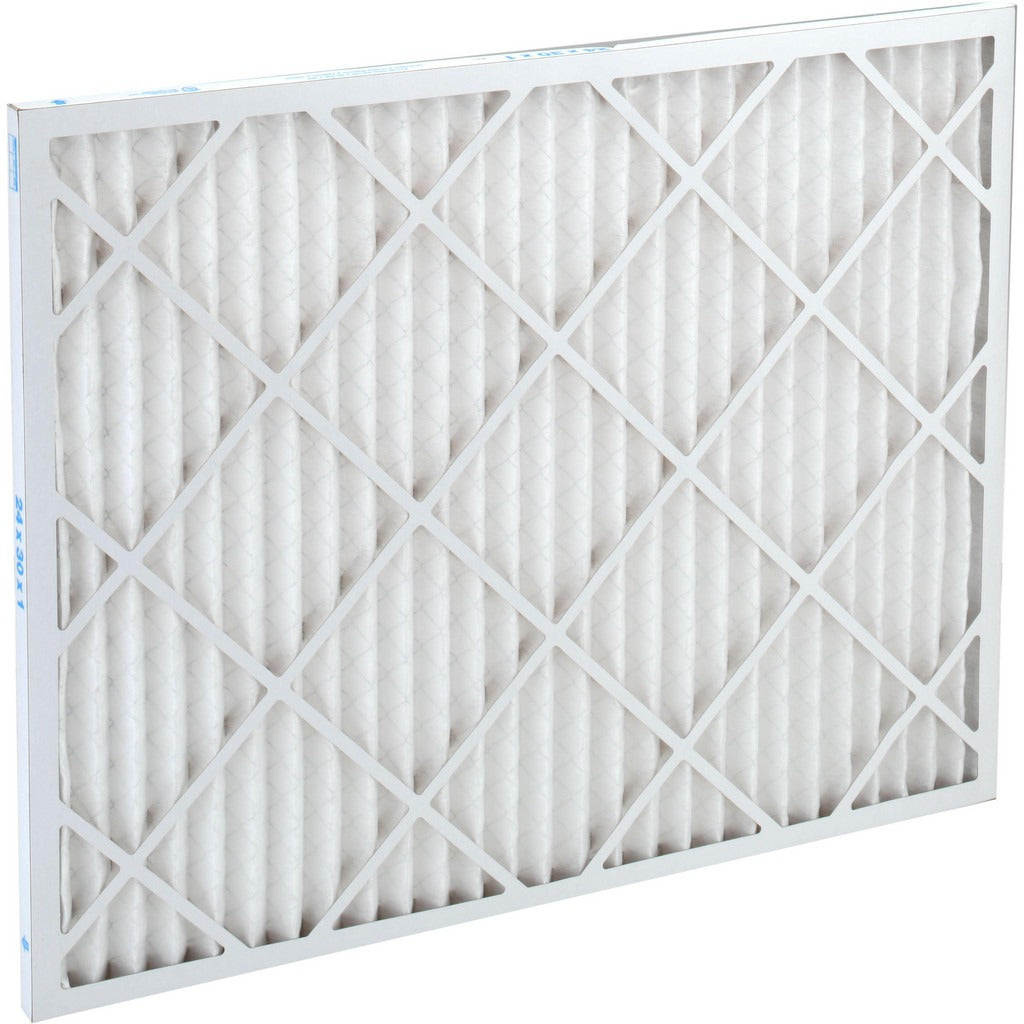

Pro-source PRO10424 Pleated Air Filter 24x30x1 Merv 8

Product Description

The PRO-SOURCE PRO10424 is a wire-backed pleated air filter rated MERV 8 with 35% particle capture efficiency. It measures 24 x 30 x 1 inches nominal, with actual dimensions of 23-1/2 x 29-1/2 x 3/4 inches. The filter uses a synthetic pleated media supported by a wire backing and enclosed in a paperboard frame. It handles airflow up to 1,500 CFM at a maximum face velocity of 300 feet per minute, with an initial resistance of 0.14 inches water gauge at 300 FPM. The maximum operating temperature is 200 degrees F. HVAC technicians and building maintenance personnel install this filter in forced-air systems as part of routine preventive maintenance.

This filter is suited for residential and light commercial forced-air HVAC applications where MERV 8 filtration is specified. It captures common airborne particles including dust, pollen, mold spores, and lint, making it appropriate for standard comfort-cooling and heating systems. The manufacturer rates it for use with any unit, so it fits a wide range of air handlers, furnaces, and fan coil units that accept a 24 x 30 x 1 inch filter. It meets ASHRAE 52.2-2012 and UL 900 standards, which are commonly required in commercial preventive maintenance programs and new construction specifications.

Key Features

• MERV 8 rating with 35% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated construction maintains media shape under high airflow conditions
• Synthetic filter media with integrated paperboard frame for easy handling and changeout
• Rated for up to 1,500 CFM and 300 FPM maximum face velocity
• Low initial resistance of 0.14 inches water gauge at rated velocity
• Rated for continuous operation up to 200 degrees F
• Meets ASHRAE 52.2-2012 and UL 900 standards

Compatibility

Rated by the manufacturer for use with any unit accepting a 24 x 30 x 1 inch nominal filter. Verify the actual filter opening dimensions against the stated actual size of 23-1/2 x 29-1/2 x 3/4 inches before installation.

Installation Notes

Power down or set the thermostat to off before opening the filter cabinet or air handler access panel. Confirm airflow direction is clearly marked on the filter frame and align the arrow with system airflow before seating. Dispose of the used filter according to local waste handling requirements. This filter is intended for installation by qualified HVAC technicians or trained maintenance personnel following applicable local codes.
