Pro-source PRO10423 Pleated Air Filter 8x30x1 Merv 8

Product Description

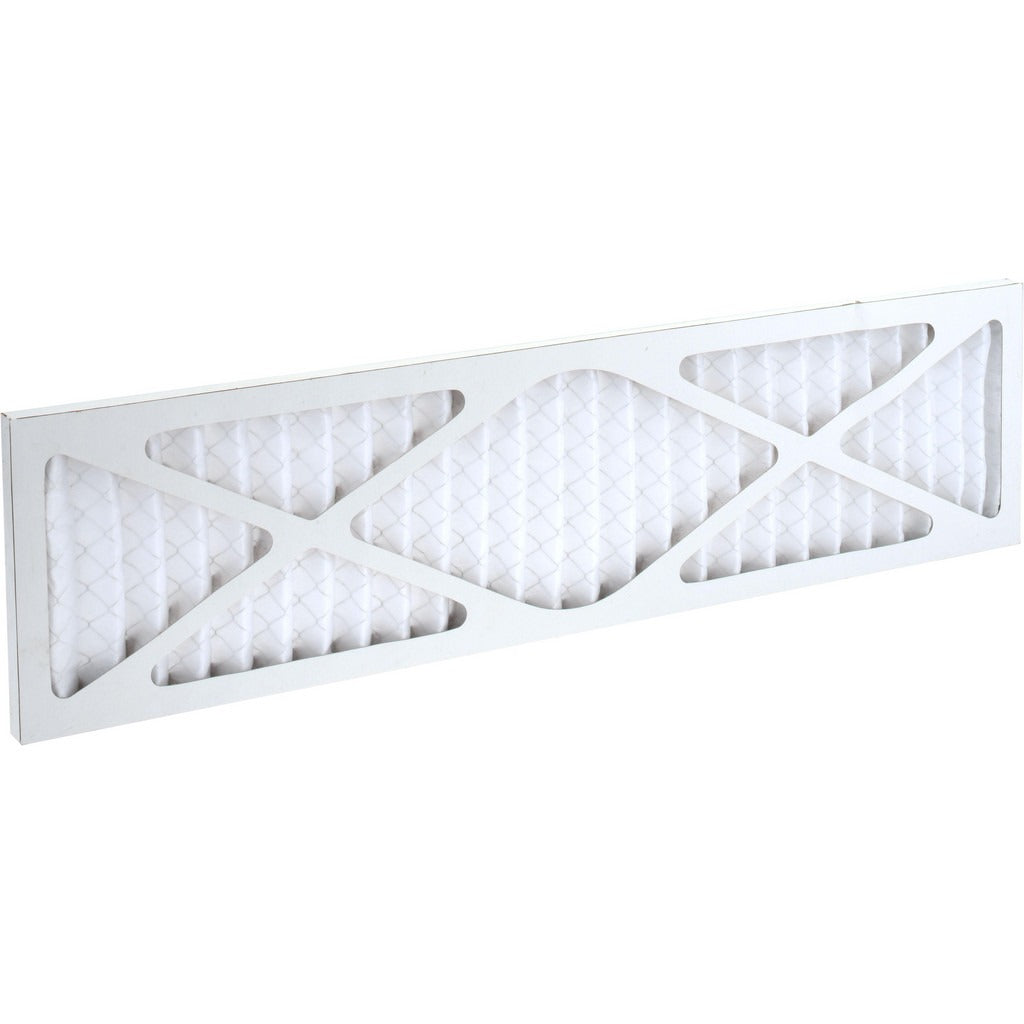

The PRO-SOURCE PRO10423 is a wire-backed pleated air filter rated MERV 8 with 35% particle capture efficiency. It measures 8 x 30 x 1 inches nominal (actual dimensions: 7-1/2 x 30-1/8 x 3/4 inches) and is built with a synthetic filter media bonded to a wire backing for structural support. The paperboard frame holds its shape under normal system static pressure. Rated for airflow up to 500 CFM at a maximum face velocity of 300 feet per minute, this filter handles standard residential and light commercial air handler applications. HVAC technicians and service pros install it as a routine maintenance filter in forced-air systems.

This filter is suited for residential and light commercial forced-air HVAC systems where MERV 8 filtration is specified. At MERV 8, it captures dust mite debris, mold spores, pet dander, and fine dust while maintaining low enough resistance to keep system airflow in range. The initial resistance is 0.14 inches water gauge at 300 FPM, with a final resistance of 1.0 inch water gauge. It is rated for use in any unit, making it a versatile stock filter for service vans and maintenance inventory. Maximum operating temperature is 200 degrees F.

Key Features

• MERV 8 rating with 35% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated synthetic media maintains pleat geometry under airflow
• Paperboard frame provides rigid, square fitment in filter rack
• Low initial resistance of 0.14 inches water gauge at 300 FPM
• Rated to 500 CFM and 300 FPM maximum face velocity
• Compliant with ASHRAE 52.2-2012 and UL 900 standards

Compatibility

Designed for use with any forced-air HVAC unit requiring an 8 x 30 x 1 inch nominal pleated filter at MERV 8 efficiency.

Installation Notes

A licensed HVAC technician or qualified service professional should power down the air handler at the disconnect before servicing the filter rack. Confirm airflow direction markings on the filter frame align with system airflow before seating the filter. Replace at regular intervals per the system manufacturer's maintenance schedule or when final resistance is reached. Dispose of used filters in accordance with local waste guidelines.
