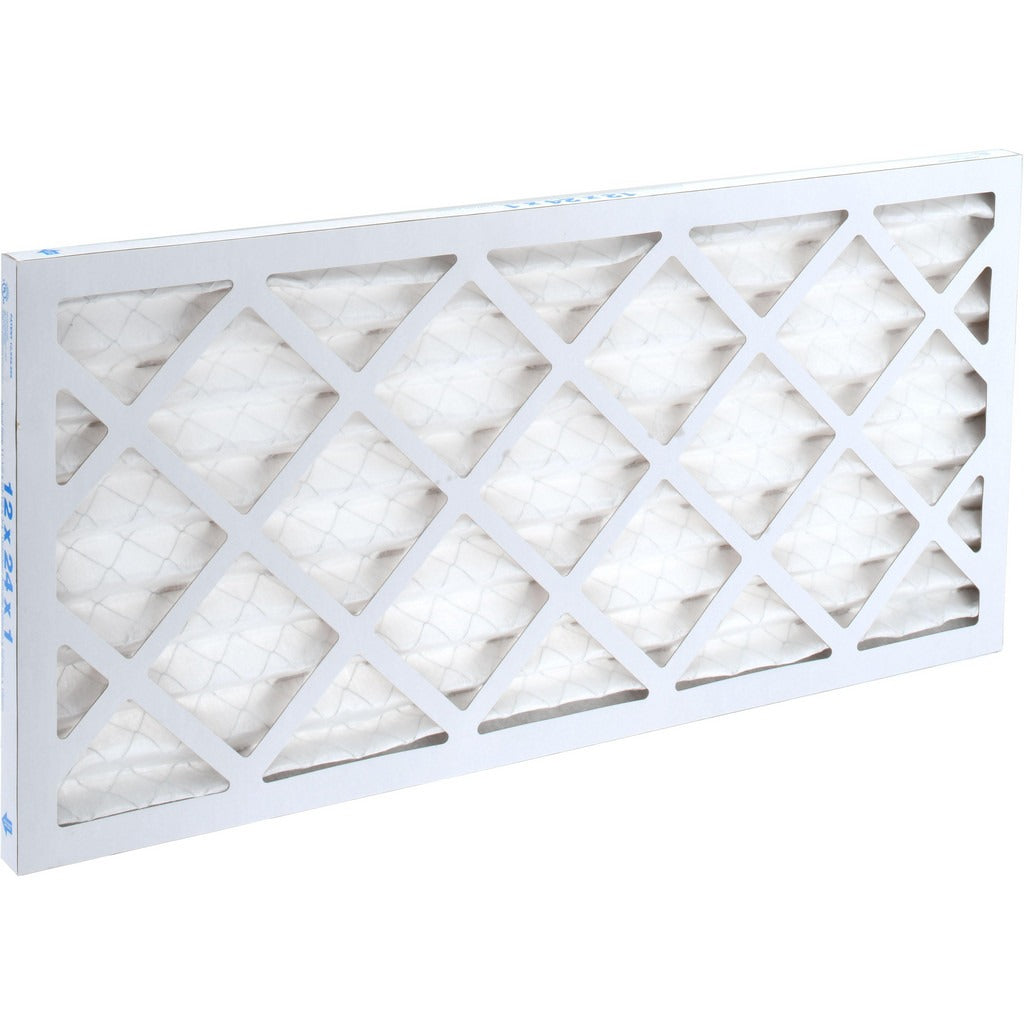

Pro-source PRO10367 Merv 8 Pleated Air Filter 12x24x1

Product Description

The PRO-SOURCE PRO10367 is a MERV 8 wire-backed pleated air filter designed for standard residential and light commercial HVAC applications. Measuring 12 x 24 x 1 inches nominal with actual dimensions of 11-1/2 x 23-1/2 x 3/4 inches, it uses a synthetic filter media bonded to a wire backing for pleat shape retention throughout its service life. The paperboard frame provides a firm, consistent fit in filter tracks. Rated at 35% particle capture efficiency per ASHRAE 52.2-2012, this filter balances dust-holding capacity with manageable static pressure drop, with an initial resistance of 0.14 inches water gauge at 300 feet per minute.

This filter suits any forced-air system accepting a 12 x 24 x 1 inch filter, including residential gas furnaces, air handlers, and packaged HVAC units. It is appropriate for commercial applications such as light-duty make-up air units and fan coil installations where a MERV 8 efficiency level meets indoor air quality requirements. Maximum operating temperature is 200 degrees F, making it compatible with most standard-duty supply and return air filter applications. Installation and filter changes are performed by HVAC technicians or qualified service personnel.

Key Features

• MERV 8 rated at 35% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated synthetic media maintains pleat geometry under airflow
• Paperboard frame with integrated construction for consistent seating in filter tracks
• Rated for up to 600 CFM airflow at a maximum face velocity of 300 FPM
• Low initial resistance of 0.14 inches water gauge at 300 FPM reduces system static pressure impact
• Maximum operating temperature of 200 degrees F

Compatibility

Designed for use with any forced-air HVAC unit accepting a nominal 12 x 24 x 1 inch filter, as stated by the manufacturer.

Installation Notes

Filter installation and replacement should be performed by a qualified HVAC technician or trained service personnel following the equipment manufacturer guidelines. Always shut down the air handling unit before removing or installing filters to prevent unfiltered airflow through the system. Confirm the airflow direction arrow on the filter frame aligns with the direction of airflow in the filter rack before securing the unit panel. Filters must be replaced before final resistance reaches 1.0 inch water gauge to avoid excessive system pressure drop.
