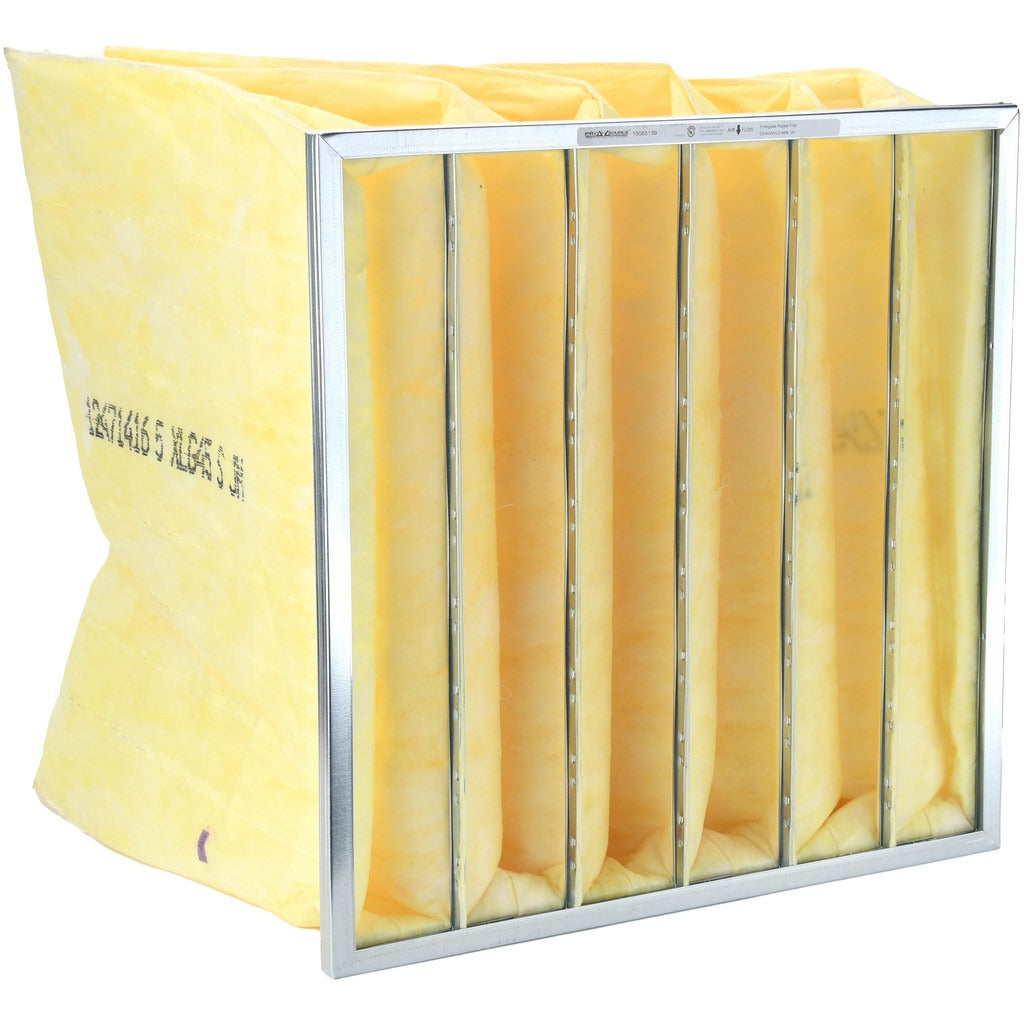

Pro-source PRO10210 Bag Air Filter Merv 8 24x24x22

Product Description

The PRO-SOURCE PRO10210 is a 6-pocket fiberglass bag air filter rated MERV 8, designed for commercial and industrial HVAC air handling units and large rooftop systems. It captures 40 to 45 percent of airborne particles in the target size range, making it suitable for general-purpose filtration in medium-duty applications. The filter handles airflow up to 2,000 CFM at a maximum face velocity of 500 feet per minute and tolerates operating temperatures up to 180 degrees F. The integrated frame provides structural rigidity during installation and service. HVAC technicians and mechanical contractors typically specify this filter for pre-filtration stages or primary filtration in light commercial systems.

This filter fits commercial air handling units and rooftop package units that accept a 24 x 24 x 22 nominal bag-style filter. The 6-pocket configuration maximizes surface area within the nominal footprint, supporting lower pressure drop across the filter bank compared to flat-panel media. It is well-suited for office buildings, light manufacturing spaces, schools, and similar occupancies where MERV 8 filtration meets the ventilation design requirement. Actual dimensions are 23.375 inches wide by 23.375 inches high by 22 inches deep, so confirm housings are sized for the nominal 24 x 24 x 22 pocket before ordering.

Key Features

• MERV 8 rating with 40 to 45 percent particle capture efficiency
• 6-pocket design maximizes media surface area and reduces pressure drop
• Fiberglass media rated to 180 degrees F maximum operating temperature
• Handles up to 2,000 CFM at a maximum face velocity of 500 FPM
• Integrated frame for secure fit and easy bag-style installation
• UL 900 listed

Compatibility

Designed as an OEM-style replacement bag filter for commercial air handling units and rooftop package units accepting a nominal 24 x 24 x 22 inch 6-pocket bag filter configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor. Always de-energize the air handling unit and verify the unit is at rest before opening the filter section. Confirm the actual housing dimension accepts the 23.375 x 23.375 x 22 inch actual filter size to ensure a proper seal and prevent bypass. Follow the equipment manufacturer and local mechanical code requirements for filter replacement intervals and disposal of used media.
