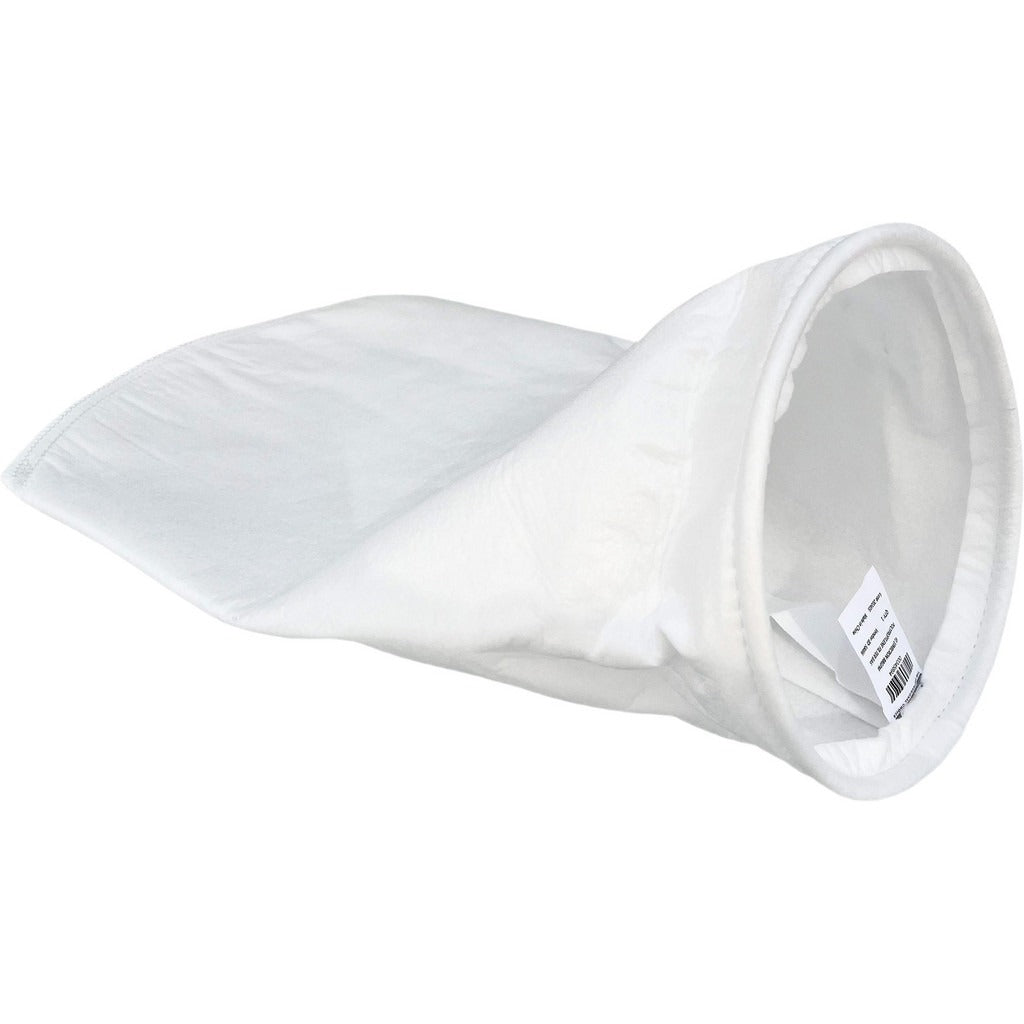

Pro-source PP10S1-PRO 10 Micron Size 1 High Flow Bag Filter

Product Description

The PRO-SOURCE PP10S1-PRO is a Size 1 high flow liquid bag filter rated at 10 microns and designed for industrial and commercial filtration systems. Constructed from polypropylene, this filter handles flow rates up to 88 GPM and withstands operating temperatures up to 194 degrees F, making it suitable for demanding process liquid applications. At 2 square feet of filter area, it delivers efficient particle capture with low differential pressure drop. HVAC system specialists, plumbers, and industrial maintenance technicians install these filters to protect downstream equipment from particulate contamination in liquid lines.

The PP10S1-PRO is suited for use in Size 1 bag filter housings handling liquid filtration duties in commercial, light industrial, and process applications. Typical installations include coolant filtration, water treatment systems, and process liquid lines where consistent particulate removal at 10 microns is required. The filter fits housings compatible with Size 1 bag filters, including the CBC1D2T and CBG1D2T filter housings.

Key Features

• 10 micron filtration rating for effective particulate removal in liquid systems
• Maximum flow rate of 88 GPM to handle high-volume liquid lines
• Polypropylene construction for chemical compatibility and durability
• 2 square feet of filter area for extended service life between changeouts
• Rated to 194 degrees F for elevated-temperature process liquid service
• Standard Size 1 form factor fits a wide range of compatible bag filter housings

Compatibility

Designed to fit Size 1 bag filter housings, including the CBC1D2T and CBG1D2T housings as noted in manufacturer data. Verify housing size and inlet configuration before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with the filtration system. Shut off flow and relieve system pressure completely before opening the filter housing or removing the spent bag. Ensure the filter bag is properly seated in the housing basket and that the gasket or sealing ring is correctly positioned to prevent bypass. Follow applicable facility safety procedures and any local codes governing the handling of process liquids.
