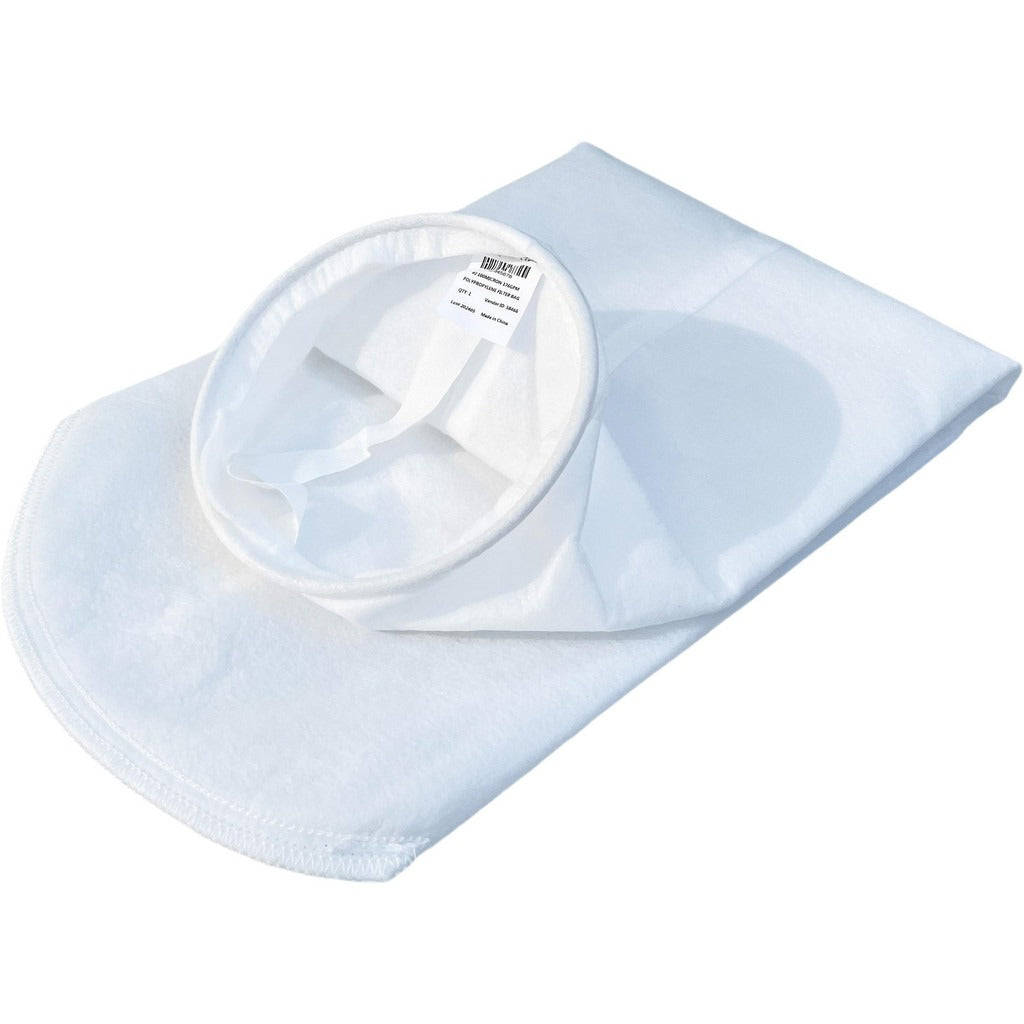

Pro-source PP100S2-PRO 100 Micron Size 2 High Flow Bag Filter

Product Description

The PRO-SOURCE PP100S2-PRO is a Size 2 high flow liquid bag filter rated at 100 microns, designed for industrial and commercial filtration systems handling high liquid throughput. Constructed from polypropylene, this filter handles maximum operating temperatures up to 194 degrees F and delivers up to 200 GPM of flow capacity through its 4.40 square feet of filter media area. At 7 inches in diameter and 32 inches in length, it fits standard Size 2 bag filter housings and is installed by plumbers, pipefitters, and industrial maintenance technicians wherever consistent particulate removal from liquid streams is required.

This filter is suited for liquid filtration applications in commercial and light industrial settings including process water, cooling loops, and general liquid line protection systems. It is compatible with CBC1D2T and CBG1D2T filter housings, making it a direct drop-in replacement for those systems. Its polypropylene construction makes it appropriate for mildly aggressive fluid environments where compatibility with that material is confirmed. The 100-micron rating targets coarser particulate removal upstream of finer filtration stages or as primary protection for pumps and equipment.

Key Features

• 100-micron filtration rating for coarse particulate removal from liquid streams
• Size 2 bag format with 4.40 square feet of filter media area for high dirt-holding capacity
• Up to 200 GPM maximum flow rate suitable for high-throughput systems
• Polypropylene construction rated to 194 degrees F maximum operating temperature
• 7-inch diameter by 32-inch length fits standard Size 2 bag filter housings
• Sold individually for single-unit replacement service

Compatibility

Designed to fit CBC1D2T and CBG1D2T filter housings. Suitable as a replacement bag for any standard Size 2 bag filter housing that accepts a 7-inch diameter by 32-inch filter bag.

Installation Notes

Installation should be performed by a qualified plumber or industrial maintenance technician. Isolate and depressurize the filter housing and relieve all system pressure before opening the vessel and replacing the bag. Ensure the bag is properly seated in the housing basket and that the collar is fully engaged before reassembly and system repressurization. Dispose of spent filter bags in accordance with local regulations, especially if the process fluid is a regulated substance.
