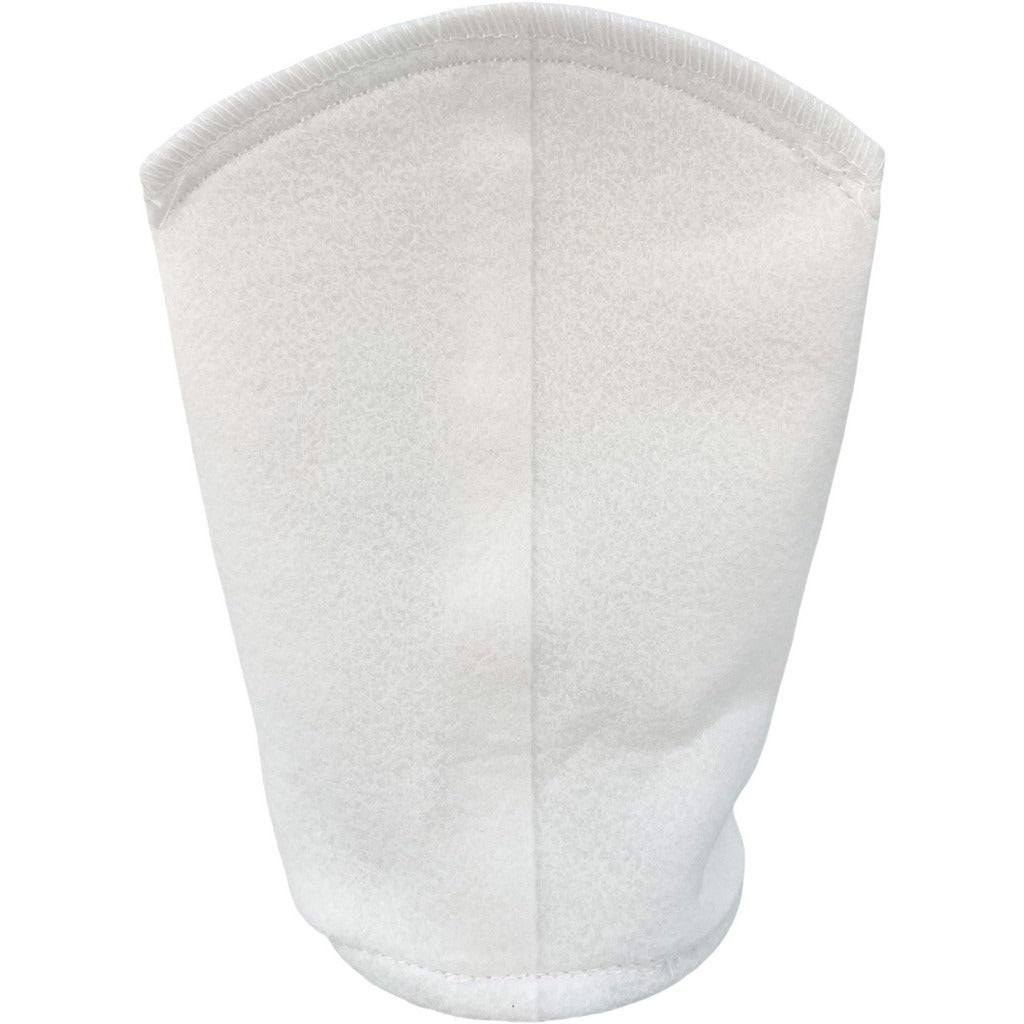

Pro-source PE5S3-PRO 100 Micron Size 3 Bag Filter 20 Gpm

Product Description

The PRO-SOURCE PE5S3-PRO is a Size 3 polyester liquid bag filter rated at 100 microns, designed for high-flow filtration in industrial and commercial fluid systems. The filter measures 4.1 inches in overall diameter and 9 inches in length, providing 0.50 square feet of filtration area. With a maximum flow rate of 26 GPM and a maximum working temperature of 266 degrees F, this bag filter handles demanding process filtration, water treatment, and general liquid filtration applications. It is typically installed and serviced by pipefitters, maintenance technicians, or plumbing contractors.

The PE5S3-PRO fits Size 3 bag filter housings, including the CBC1D2T and CBG1D2T housing models. It is suited for residential, commercial, and light industrial systems where particulate removal at 100 microns is required. Common applications include process water lines, cooling loops, chemical feed systems, and general liquid filtration where moderate flow capacity and elevated temperature tolerance are priorities.

Key Features

• 100-micron filtration rating for effective particulate removal in liquid systems
• Polyester bag construction tolerates operating temperatures up to 266 degrees F
• Maximum flow rate of 26 GPM supports high-flow system demands
• 0.50 square feet of filter area in a compact Size 3 form factor
• 4.1-inch diameter and 9-inch length fit standard Size 3 housings
• Compatible with CBC1D2T and CBG1D2T filter housings

Compatibility

Designed to fit CBC1D2T and CBG1D2T filter housings. This is a standard Size 3 bag filter replacement suitable for liquid bag filter housings rated for that size designation.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or qualified maintenance technician. Isolate and depressurize the filter housing fully before opening the vessel and replacing the bag. Inspect the housing basket and seal ring for wear or debris before inserting the new bag filter. Follow applicable local plumbing codes and the housing manufacturer guidelines for proper seating and closure torque.
