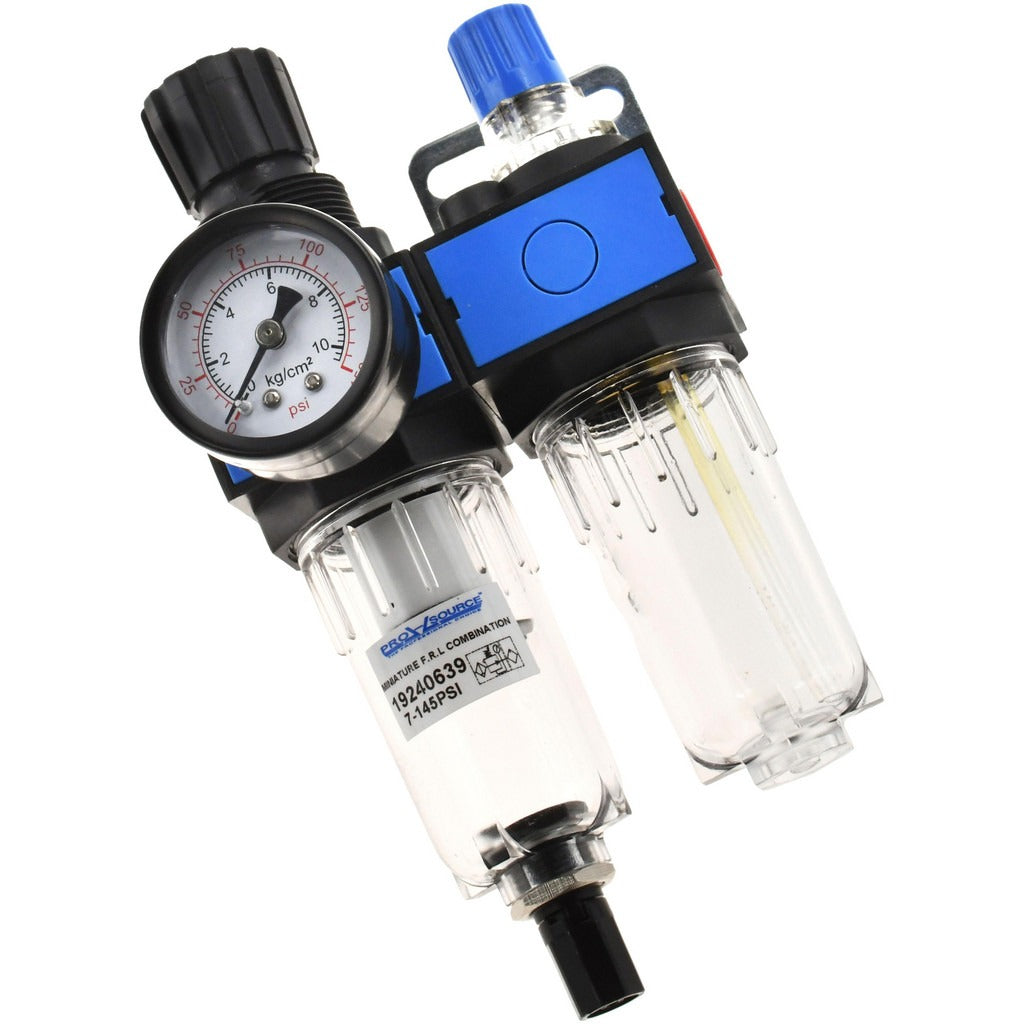

Pro-source FRL600A-02N Frl Combo Unit 1/4 Npt Miniature

Product Description

The PRO-SOURCE FRL600A-02N is a miniature filter-regulator-lubricator combination unit designed for compressed air systems in industrial and trade environments. It handles up to 145 psi supply pressure and delivers a flow rate of 65.32 SCFM through a 1/4 NPT port. The unit integrates a 0.5-micron filtration stage, a pressure regulator, and a lubricator into a single compact assembly, reducing installation footprint and plumbing complexity. A polycarbonate bowl provides visual fluid-level monitoring, and a semi-automatic drain simplifies maintenance. A 1/8 NPT gauge port accepts the included pressure gauge. This unit is installed by pneumatic system technicians, maintenance professionals, and industrial plumbers.

The FRL600A-02N is suited for miniature compressed air circuits in light industrial, manufacturing, and automation applications where space is limited but reliable air preparation is required. It supports modular connection to allow inline expansion with additional FRL components. The unit operates within a temperature range of 14 degrees F to 140 degrees F, making it appropriate for most indoor shop and plant environments. Brackets are included for panel or wall mounting. The sight glass allows quick visual inspection of bowl levels without disassembly.

Key Features

• Three-stage air preparation in one compact unit: filtration, regulation, and lubrication
• 0.5-micron filtration rating for fine particulate removal
• 65.32 SCFM flow capacity through a 1/4 NPT port
• 145 psi maximum supply pressure rating
• Semi-automatic drain reduces manual service intervals
• Modular connection design supports inline expansion
• Includes pressure gauge, sight glass, and mounting brackets

Compatibility

Designed as an OEM-style replacement or new-install FRL combination unit for miniature compressed air circuits using 1/4 NPT porting.

Installation Notes

Installation and service should be performed by a qualified pneumatic or mechanical technician. Depressurize and isolate the air supply line completely before removing or installing the unit. Verify that the supply pressure and temperature at the installation point fall within the rated limits before commissioning. Mounting brackets are included; secure the unit in an orientation that allows clear access to the drain and bowl for routine maintenance.
