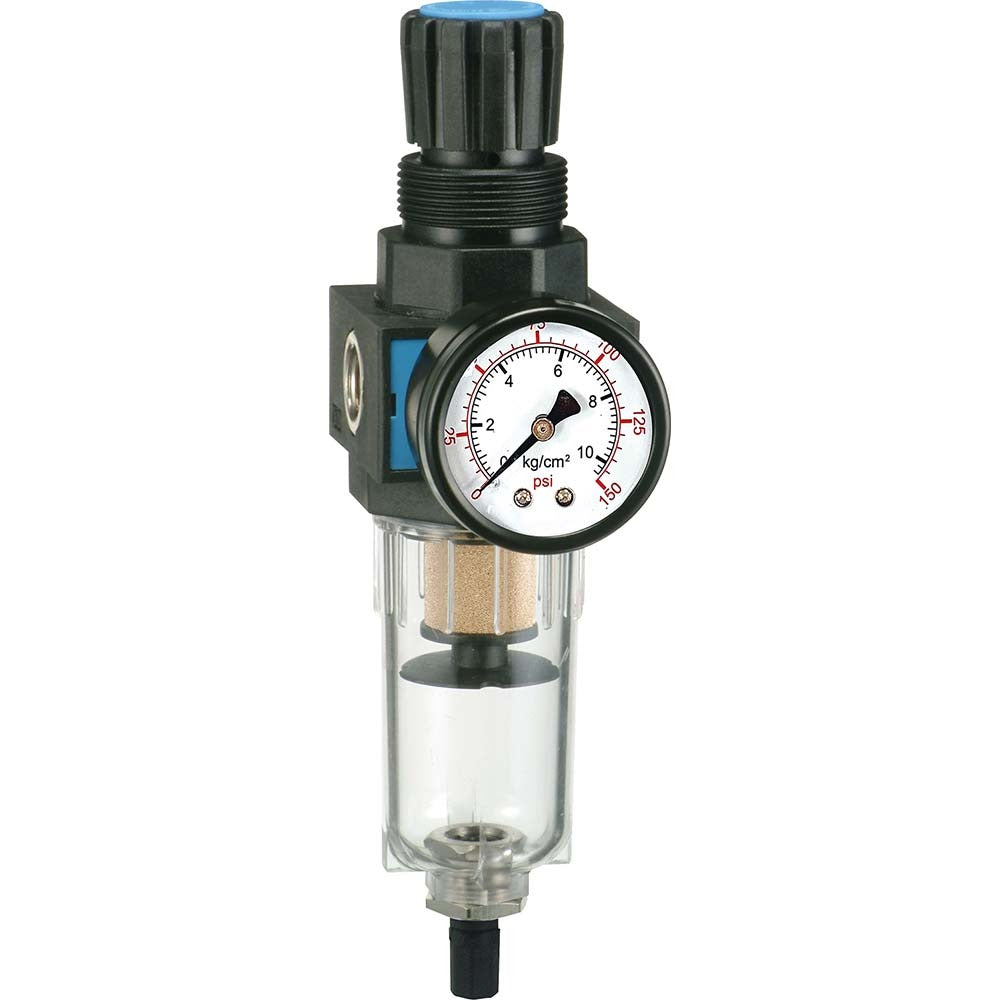

Pro-source FR500A-01N Frl Combo Unit 1/8 Npt Miniature

Product Description

The PRO-SOURCE FR500A-01N is a miniature FRL combination unit that integrates a filter, regulator, and lubricator into a single compact assembly for compressed air systems. It accepts a 1/8 NPT port connection and delivers up to 64.97 SCFM at a maximum supply pressure of 145 psi. The unit features a polycarbonate bowl with a 1.2 oz capacity, a semi-automatic drain, a 0.5 micron filter rating, and an included pressure gauge for inline monitoring. It is installed by pneumatic system technicians and maintenance professionals who need reliable air preparation in a small-footprint configuration.

This FRL unit is designed for miniature pneumatic systems where space is limited and clean, regulated air is required. Typical applications include small pneumatic tools, control panels, automation equipment, and light industrial machinery. The modular connection design allows the unit to be ganged with other compatible FRL components. A sight glass is included for quick visual inspection of bowl fluid levels without disassembly. Brackets are included for panel or inline mounting.

Key Features

• Integrated filter, regulator, and lubricator in one miniature assembly
• 64.97 SCFM flow capacity at up to 145 psi maximum supply pressure
• 0.5 micron filtration rating for fine particulate removal
• Semi-automatic drain on polycarbonate bowl with 1.2 oz capacity
• Includes pressure gauge, sight glass, and mounting brackets
• Modular connection design supports multi-unit ganging

Compatibility

Designed as an OEM-style replacement or new-installation FRL combination unit for miniature 1/8 NPT compressed air systems in light industrial and automation applications.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and isolate the compressed air supply fully before servicing or installing any FRL component. Follow local and applicable industrial safety codes for compressed air systems. Ensure flow direction matches the arrow or markings on the unit body before tightening fittings.
