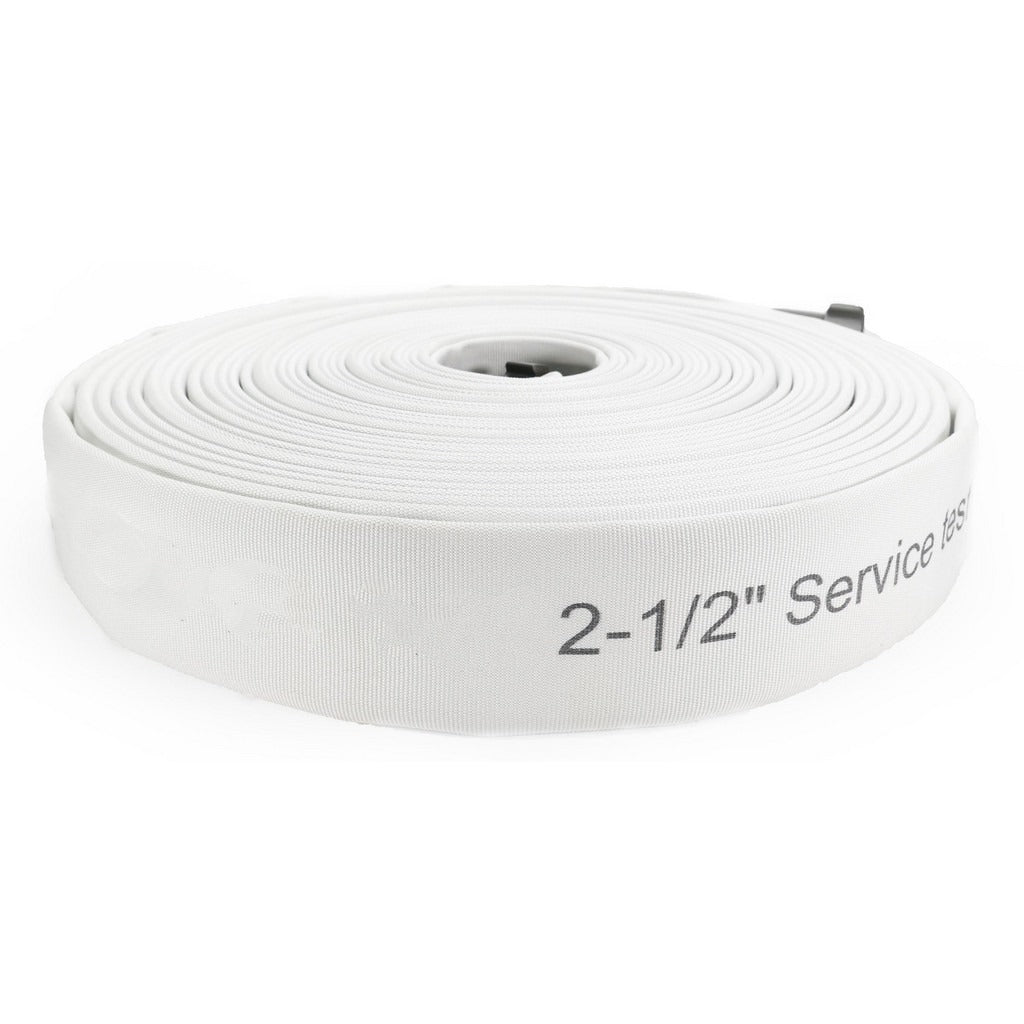

Pro-source FAD25050300ALNH Double Jacket Fire Hose 2.5in 50ft

Product Description

The PRO-SOURCE FAD25050300ALNH is a double jacket emergency fire hose designed for firefighting and fire suppression applications. Built with a polyester double-jacket construction, it delivers a maximum working pressure of 300 psi and a burst pressure of 900 psi. The hose measures 2-1/2 inches inside diameter and 50 feet in length, with a 14-inch bend radius. It is rated for temperatures from -40 degrees F to 150 degrees F. Aluminum male x female NST (NH) couplings are factory-fitted at both ends. This hose is installed and serviced by licensed fire protection contractors and municipal fire departments.

This hose is suited for use in residential, commercial, and industrial fire suppression scenarios where a durable, large-diameter supply line is required. Typical installations include standpipe connections, fire department use, and emergency water supply lines. The white color provides easy identification in emergency environments. Compatible fluid is water. The polyester jacket resists abrasion and wear under demanding field conditions, making it appropriate for both permanent installations and portable emergency response use.

Key Features

• Double jacket polyester construction for abrasion resistance and durability
• 300 psi maximum working pressure with 900 psi burst pressure rating
• 2-1/2 inch inside diameter and 50-foot length for high-volume water delivery
• Aluminum male x female NST (NH) couplings factory-installed at both ends
• Operating temperature range of -40 degrees F to 150 degrees F
• Certified to ISO-9001:2015, NFPA 1961, and UL Listed

Compatibility

Designed for use with water as the compatible fluid. Fitted with male x female NST (NH) couplings for connection to standard fire department and standpipe fittings requiring a 2-1/2 inch NST interface.

Installation Notes

Installation and service should be performed by qualified fire protection contractors in accordance with NFPA 1961 and applicable local fire codes. Ensure the water supply is fully shut off and the system is depressurized before connecting or disconnecting the hose. Inspect couplings for thread damage and ensure gaskets are properly seated before pressurizing. Do not exceed the rated maximum working pressure of 300 psi during operation or testing.
