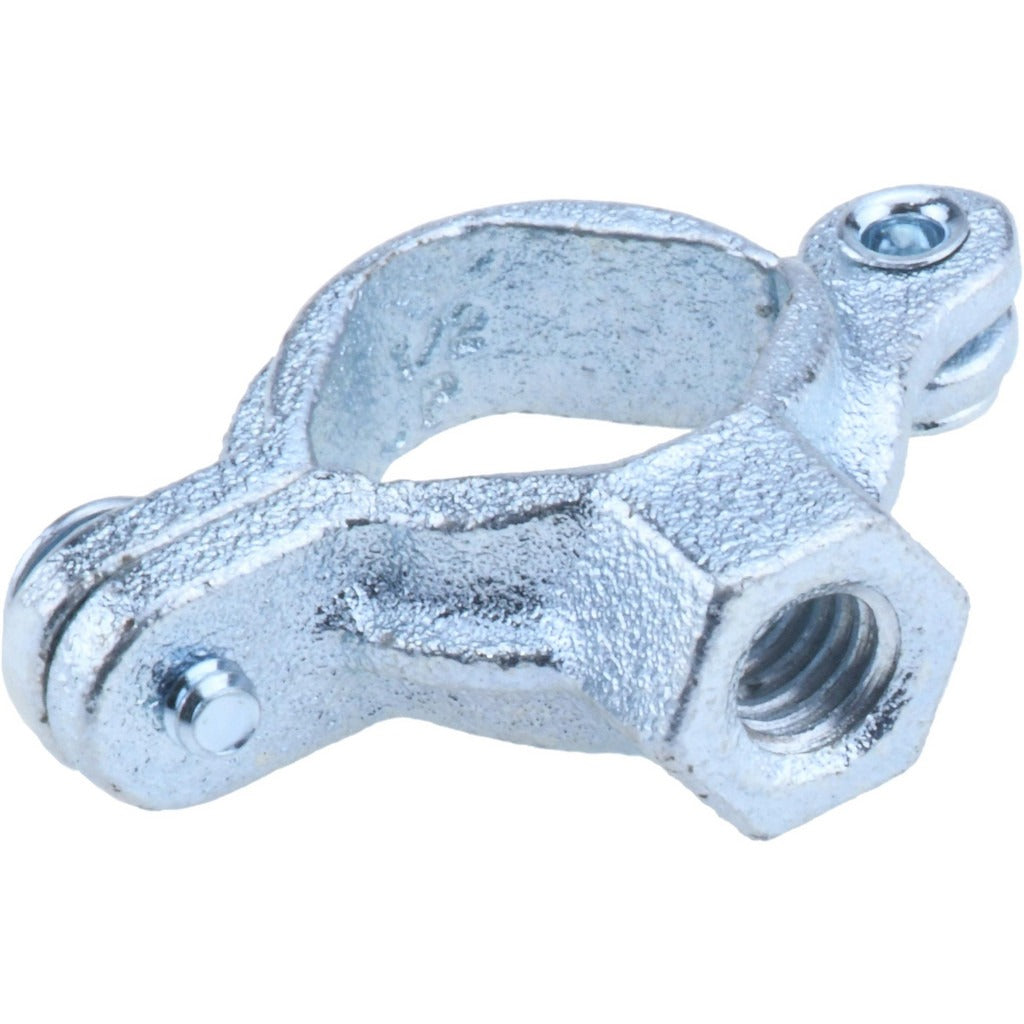

Pro-source E138R 15 Split Ring Hanger 3/8 in 562 Lb

Product Description

The PRO-SOURCE E138R 15 is a split ring hanger designed for suspending pipe and conduit runs from threaded rod in mechanical, plumbing, and HVAC installations. Constructed from malleable iron, this hanger accepts 3/8 inch threaded rod and carries a rated load capacity of 562 pounds. The split ring design allows the hanger to be installed around an existing pipe without threading it on from an end, saving time on retrofit and new-construction work alike. Licensed plumbers, pipefitters, and HVAC mechanics use split ring hangers where a secure, rod-supported suspension point is needed for horizontal pipe runs across ceilings and structural members.

This hanger is suited for residential and light commercial mechanical systems where pipe support spacing and load ratings must meet code. Typical applications include supporting copper, steel, and plastic pipe in plumbing supply lines, hydronic heating runs, refrigerant piping, and conduit arrays. The malleable iron construction handles the mechanical stress of long pipe spans and provides durability in both dry and moderately humid service environments.

Key Features

• Split ring design allows installation around existing pipe without end-threading
• Malleable iron construction for strength and resistance to mechanical stress
• Accepts 3/8 inch threaded rod for standard suspended pipe support assemblies
• 562 pound rated load capacity supports heavy pipe runs and fluid-filled lines
• Single-piece packaging suitable for spot replacements or small-quantity jobs

Compatibility

Designed as an OEM-style replacement and standard-fit split ring hanger for use with 3/8 inch threaded rod suspended pipe support systems in residential and commercial mechanical applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC mechanics following applicable IPC and IMC support-spacing requirements. Shut down and depressurize any active pipe system before adding or repositioning hangers. Verify that the overhead structure and threaded rod assembly are rated to handle the combined load of the hanger, pipe, and fluid weight. Do not exceed the 562 pound rated load capacity of this hanger.
