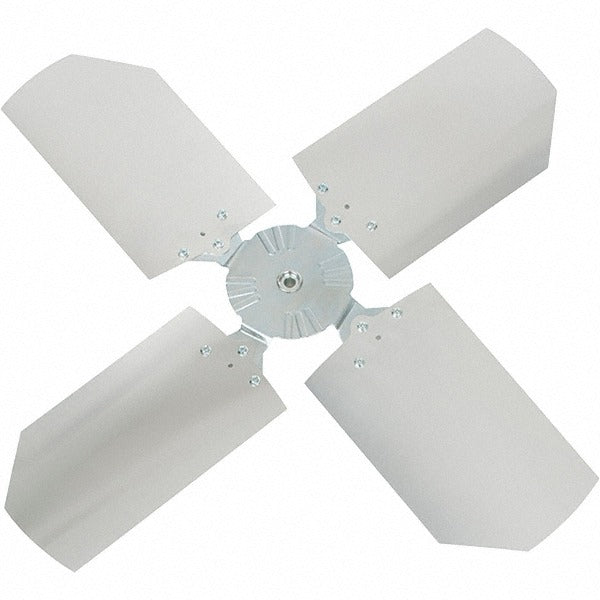

Pro-source CED4329 Commercial Fan Blade 600mm 4 Blade Cw

Product Description

The PRO-SOURCE CED4329 is a four-blade commercial fan blade designed as an OEM-style replacement for commercial HVAC and refrigeration equipment. The blade assembly measures 600mm (approximately 23.6 inches) in diameter with a 12mm bore and a 20.5-degree pitch. Clockwise rotation is built into the blade geometry, so correct airflow direction depends on proper orientation during installation. Weighing approximately 2.27 pounds, this unit is sized for commercial-duty evaporator, condenser, or air-handler fan assemblies where moving large air volumes at a controlled pitch is required. HVAC service technicians and commercial refrigeration mechanics are the typical installers.

This blade is suited for commercial HVAC systems and refrigeration units that accept a 600mm diameter, 12mm bore fan blade with clockwise rotation. The four-blade configuration and 20.5-degree pitch make it appropriate for condenser fan or evaporator fan sections in commercial rooftop units, walk-in coolers, and similar forced-air systems. Verify bore size, blade diameter, rotation direction, and pitch angle against the unit nameplate and existing blade data before ordering.

Key Features

• 600mm (approximately 23.6 inches) blade diameter for commercial-scale airflow
• 12mm bore for direct shaft mounting
• Clockwise (CW) rotation - verify against existing equipment rotation before installation
• Four-blade design with 20.5-degree pitch for balanced static pressure and airflow
• Lightweight at approximately 2.27 pounds for straightforward handling during service

Compatibility

Designed as an OEM-style replacement for commercial HVAC and refrigeration fan assemblies requiring a 600mm diameter, 12mm bore, four-blade, clockwise-rotation fan blade with a 20.5-degree pitch.

Installation Notes

Installation should be performed by a qualified HVAC technician or commercial refrigeration mechanic. Disconnect and lock out all electrical power to the unit before removing or installing the fan blade. Confirm shaft diameter, rotation direction, and blade pitch match the equipment specifications before mounting. Torque the set screw or hub fastener to the equipment manufacturer's specification and verify blade clearance and balance before restoring power.
