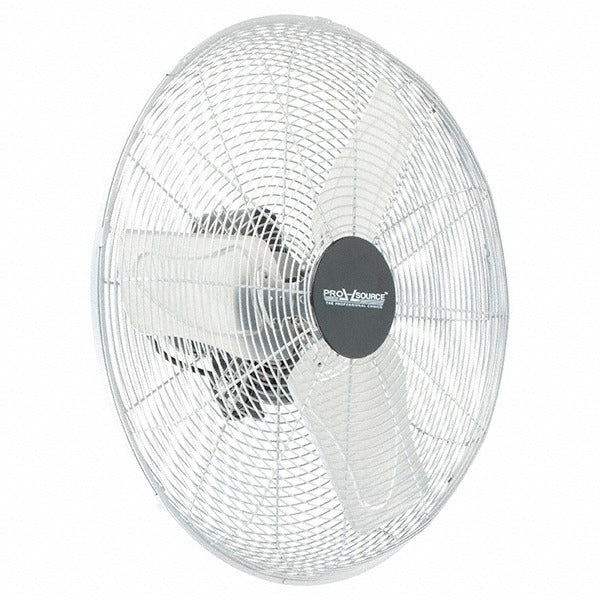

Pro-source CED4045-WP 24 Inch Industrial Circulation Fan

Product Description

The PRO-SOURCE CED4045-WP is a single-phase industrial circulation fan built for continuous-duty air movement in commercial and industrial environments. It runs on 120 volts and draws 1.6 to 1.9 amps through a 1/4 HP motor, delivering up to 1,115 RPM across three selectable speeds. The 24-inch blade diameter moves significant air volume, making it well suited for workshops, warehouses, loading docks, and manufacturing floors. The motor carries an IP44 enclosure rating, providing protection against solid particles and splash water. A licensed electrician or facilities maintenance technician typically handles installation and wiring for this class of fan.

This fan is designed for industrial and commercial circulation applications where reliable, adjustable airflow is needed over extended duty cycles. The back-mount configuration allows wall or structural mounting, keeping the floor clear and directing airflow where it is needed most. The 12-foot cord provides installation flexibility. With no oscillation, airflow is fixed and directional, which is preferred in applications targeting specific zones such as equipment cooling, spot ventilation, or personnel comfort in large open bays.

Key Features

• 24-inch blade diameter for high-volume industrial air circulation
• Three selectable speeds with a maximum of 1,115 RPM
• 1/4 HP single-phase motor rated at 120 volts, 1.6 to 1.9 amps
• IP44 motor enclosure rating resists dust ingress and water splash
• Back-mount design for wall or structural installation
• 12-foot power cord for flexible placement

Compatibility

Designed as a back-mount industrial circulation fan suitable for general commercial and industrial ventilation applications requiring a 24-inch single-phase fan.

Installation Notes

Installation should be performed by a qualified electrician or licensed facilities maintenance technician in accordance with NEC requirements for motor branch circuits. Disconnect and lock out all power to the circuit before mounting or making electrical connections. Verify that the mounting surface or structure is rated to support the fan weight before securing. Do not bypass or modify the factory cord or plug assembly.
