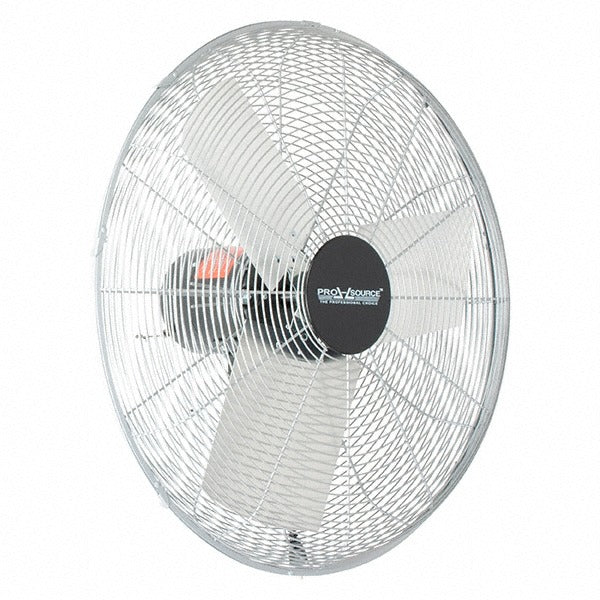

Pro-source CED4045 Industrial Fan 1/4 Hp 24 Inch 2-speed

Product Description

The PRO-SOURCE CED4045 is a fixed industrial circulation fan designed for high-volume air movement in commercial and industrial environments. Equipped with a 24-inch blade and a 1/4 HP motor, it delivers two selectable airflow rates: 5,000 CFM at low speed and 6,800 CFM at high speed. Running on 115 volts, this fan head ships ready for hardwired or plug-in installation by qualified electricians or facility maintenance technicians. The two-speed design gives operators control over airflow intensity without additional speed controllers. At 40 pounds, the unit is built for stationary, fixed-mount applications where consistent air circulation is required.

This fan is suited for warehouses, manufacturing floors, garages, loading docks, and other large open spaces requiring continuous air circulation. The fixed-mount configuration makes it appropriate for wall, post, or structural column installations where a permanent airflow solution is needed. The fan head-only configuration assumes the installer will supply or reuse existing mounting hardware and structural supports appropriate for the installation location.

Key Features

• 24-inch blade diameter for wide-area air circulation coverage
• Two-speed operation: 5,000 CFM low and 6,800 CFM high
• 1/4 HP motor on 115-volt single-phase power
• Fixed industrial design for permanent stationary mounting
• Fan head-only unit for use with existing or field-supplied mounting structure
• 40-pound construction suited for heavy-duty industrial environments

Compatibility

Designed as an OEM-style replacement or direct-install industrial circulation fan head for fixed-mount applications requiring a 24-inch blade, 115-volt, two-speed configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for motor-driven equipment. Disconnect and lock out all power to the circuit before mounting or wiring the fan head. Ensure the mounting structure is rated to support at least 40 pounds continuously and is appropriate for the intended environment. Do not operate the fan without confirming that blade clearance meets local safety and code requirements.
