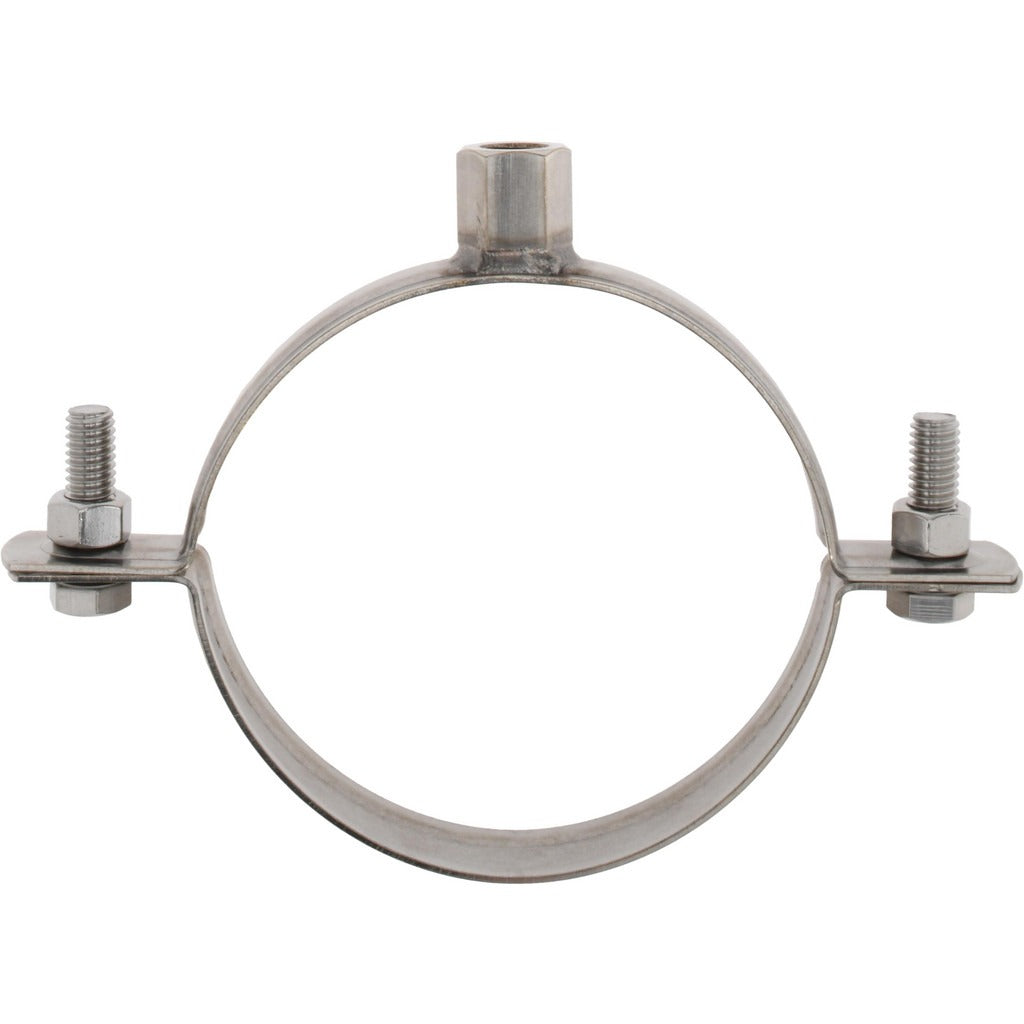

Pro-source Bgss 114 Split Ring Hanger 4 in Stainless Steel

Product Description

The PRO-SOURCE BGSS 114 is a split ring hanger designed to support 4-inch pipe from 1/2-inch threaded rod in mechanical, plumbing, and HVAC piping systems. Constructed from 304 stainless steel, it provides corrosion resistance in wet, outdoor, and chemically active environments where carbon steel hangers would degrade. The split ring design allows the hanger to be installed around existing pipe runs without full disassembly of adjacent fittings or supports. Plumbers, pipefitters, and mechanical contractors use this type of hanger in commercial and industrial applications where long-term material integrity is required.

This hanger is suited for horizontal pipe support installations in both new construction and retrofit projects. It is commonly used in plumbing, HVAC, and process piping systems where 4-inch pipe must be suspended from structural members via 1/2-inch threaded rod. The 304 stainless steel construction makes it appropriate for corrosive environments including coastal installations, food service facilities, and chemical plant areas where standard steel hardware is not acceptable.

Key Features

• Fits 4-inch pipe for consistent, secure support along horizontal runs
• Accepts 1/2-inch threaded rod for standard suspended pipe support assemblies
• 304 stainless steel construction resists corrosion in wet and chemically active environments
• Split ring design allows installation without full pipe disassembly
• Sold individually, compatible with standard threaded rod hanger assemblies

Compatibility

Designed as an OEM-style replacement and new-installation split ring hanger for 4-inch pipe systems utilizing 1/2-inch threaded rod support, typical of commercial and industrial plumbing and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including IPC and ASME B31 standards where applicable. Shut off and depressurize the pipe system before making any modifications to existing hangers or supports. Use appropriate rod couplings, nuts, and washers rated for stainless steel hardware to avoid galvanic corrosion when pairing with other metals. Torque all threaded connections per the project specifications or the authority having jurisdiction.
