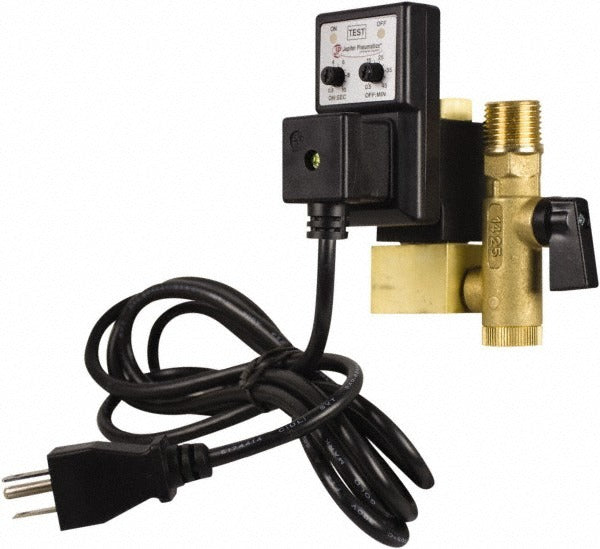

Pro-source 9836514015JP Condensate Drain Valve

Product Description

The PRO-SOURCE 9836514015JP is an electronic condensate drain valve designed to automatically discharge accumulated condensate from compressed air systems, air compressors, filters, dryers, and receivers. The valve features a 1/4 inch NPT inlet and outlet configuration and handles operating pressures from 1.5 to 725 psi, making it suitable for a wide range of industrial and commercial compressed air applications. Electronically controlled discharge eliminates the need for manual draining and reduces condensate-related contamination in downstream air lines. Licensed HVAC technicians, pipefitters, and industrial maintenance technicians are the typical installers of this component.

This electronic condensate drain valve is suited for use on compressed air receivers, filter housings, refrigerated air dryers, and aftercoolers where automatic timed or demand-based condensate removal is required. It fits both light-duty shop compressor setups and heavier commercial or industrial compressed air systems operating within its rated pressure range. The 1/4 inch NPT connection is a common port size found on a broad range of compressed air filtration and separation equipment.

Key Features

• Electronic automatic discharge eliminates manual draining intervals
• Rated for 1.5 to 725 psi operating pressure range
• 1/4 inch NPT inlet and outlet connections
• Compact footprint at approximately 6 inches length by 5 inches width by 5 inches height
• Maximum 50 bar pressure rating consistent with industrial compressed air service
• Package quantity of 1 unit per order

Compatibility

Designed as an OEM-style electronic condensate drain replacement for compressed air filters, receivers, dryers, and aftercoolers equipped with 1/4 inch NPT condensate discharge ports and operating within the 1.5 to 725 psi pressure range.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize and isolate the compressed air system fully before removing the existing drain fitting or valve. Verify that the supply voltage matches the valve's electrical requirements before making any wiring connections, and follow applicable NFPA 70 (NEC) guidelines for electrical terminations. Do not exceed the rated maximum operating pressure of 725 psi.
