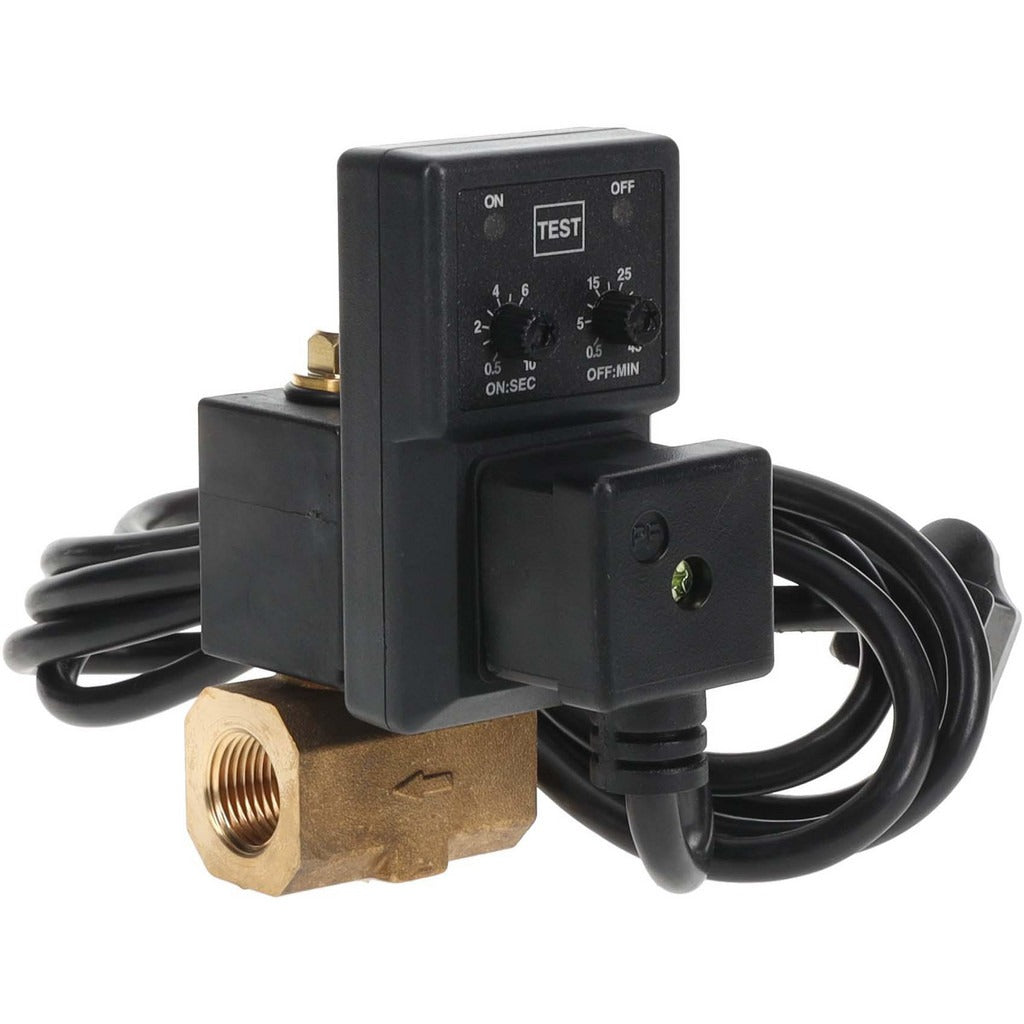

Pro-source 9818738015JP Electronic Condensate Drain Valve

Product Description

The PRO-SOURCE 9818738015JP is an electronic condensate drain valve designed to automatically discharge accumulated condensate from compressed air systems, air compressors, dryers, and filters. Featuring a 3/8 inch NPT inlet and a 3/8 inch NPT outlet, this valve handles system pressures from 1.5 to 250 psi. It eliminates the need for manual drain intervals by opening on a timed or demand-driven cycle, reducing moisture-related contamination and unplanned maintenance. HVAC technicians, pipefitters, and compressed air system specialists install this valve as a reliable, low-maintenance alternative to manual float drains or timed solenoid valves.

This electronic condensate drain valve is suited for compressed air distribution systems in both light commercial and industrial environments. It is commonly installed at the low points of air receivers, refrigerated air dryers, filters, and aftercoolers where condensate accumulates. The valve is appropriate for any system operating within the 1.5 to 250 psi pressure range and requiring automatic condensate removal to protect downstream equipment and air quality.

Key Features

• 3/8 inch NPT inlet and outlet connections for standard compressed air plumbing integration
• Operating pressure range of 1.5 to 250 psi accommodates a wide variety of system pressures
• Electronic actuation eliminates manual draining and reduces moisture-related system damage
• Compact form factor with a 6 inch length, 5 inch width, and 5 inch height for installation in tight spaces
• Lightweight at 1 pound, simplifying mounting and positioning

Compatibility

Designed as an OEM-style replacement or upgrade electronic condensate drain valve for compressed air systems, receivers, dryers, and filtration assemblies using 3/8 inch NPT connections and operating within a 1.5 to 250 psi pressure range.

Installation Notes

Installation should be performed by a qualified pipefitter or compressed air system technician. Depressurize and isolate the system completely before removing any existing drain valve or making new connections. Use appropriate thread sealant on all NPT connections and verify there are no leaks before returning the system to full operating pressure. Ensure the valve is mounted at a low point in the system to allow gravity-assisted condensate flow to the drain outlet.
