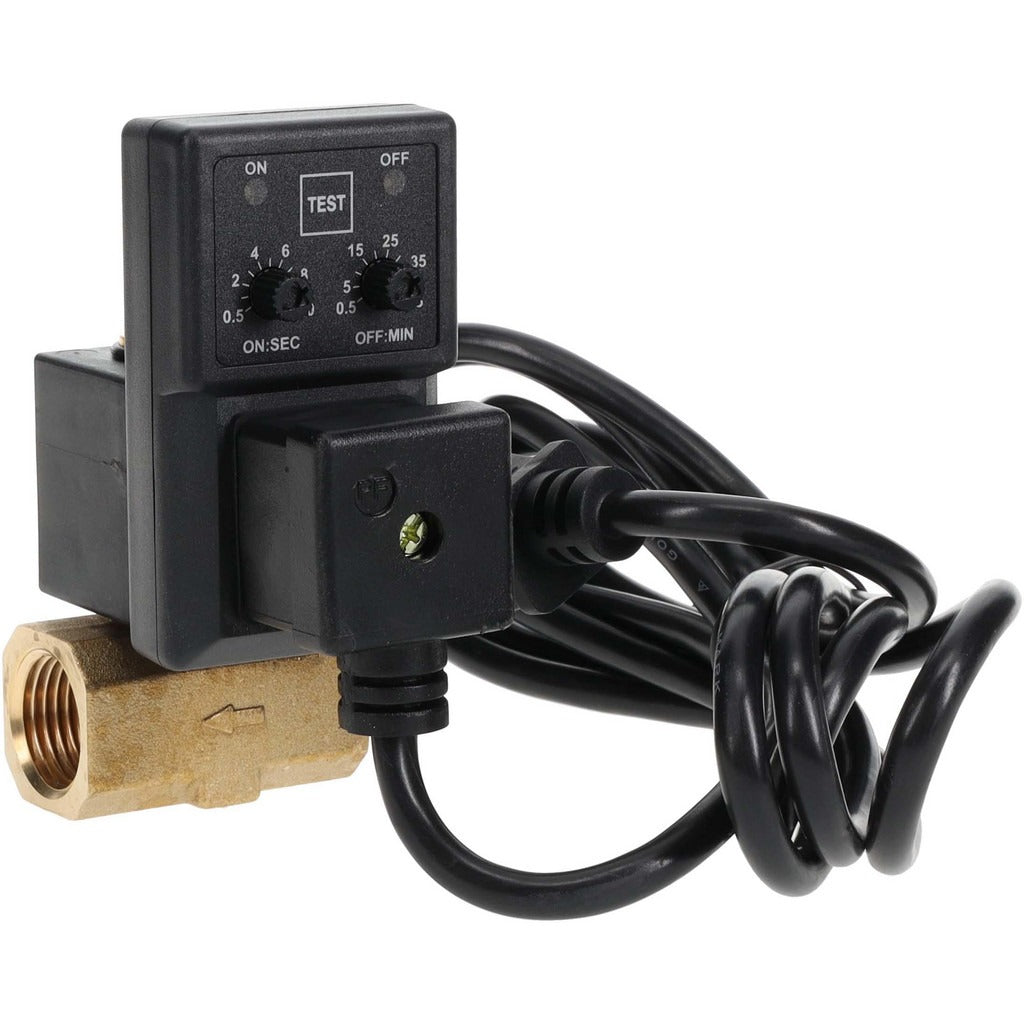

Pro-source 9818712015JP Condensate Drain Valve 1/2 Inch Npt

Product Description

The PRO-SOURCE 9818712015JP is an electronic condensate drain valve designed to automatically discharge accumulated condensate from compressed air systems, refrigeration equipment, and HVAC air handlers. The valve accepts a 1/2 inch NPT inlet and outlet connection and handles operating pressures from 1.5 to 250 psi, making it suitable for a wide range of system pressures found in commercial and industrial service. Automatic electronic operation eliminates the need for manual draining and reduces the risk of moisture carryover into downstream components. Licensed HVAC technicians and compressed air system technicians are the primary installers of this type of valve.

This condensate drain valve is used in applications where reliable, timed or demand-based condensate removal is required. Typical installations include refrigerated air dryers, air compressor receivers, filters, separators, and HVAC air handler drain pans where continuous or periodic automatic discharge is preferred over float-operated or manual drain assemblies. The 1/2 inch NPT connections suit standard compressed air and HVAC piping found in both light commercial and industrial environments.

Key Features

• Electronic automatic operation for hands-free condensate discharge
• 1/2 inch NPT inlet and outlet connections for standard piping integration
• Wide operating pressure range of 1.5 to 250 psi suits diverse system types
• Compact footprint at 6 inches length, 5 inches width, and 5 inches height
• Lightweight at 1 pound for easy mounting in tight mechanical spaces

Compatibility

Designed as an OEM-style replacement electronic condensate drain valve for compressed air dryers, receivers, and HVAC air handling equipment using 1/2 inch NPT drain connections and operating within 1.5 to 250 psi system pressure ranges.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified compressed air system mechanic. Depressurize and isolate the system completely before removing the existing drain valve or making any piping connections. Apply appropriate thread sealant to NPT fittings per IPC and local mechanical code requirements. Verify that the electrical supply to the valve matches the unit specifications before energizing, and confirm the discharge line routes condensate safely to an approved drain point.
