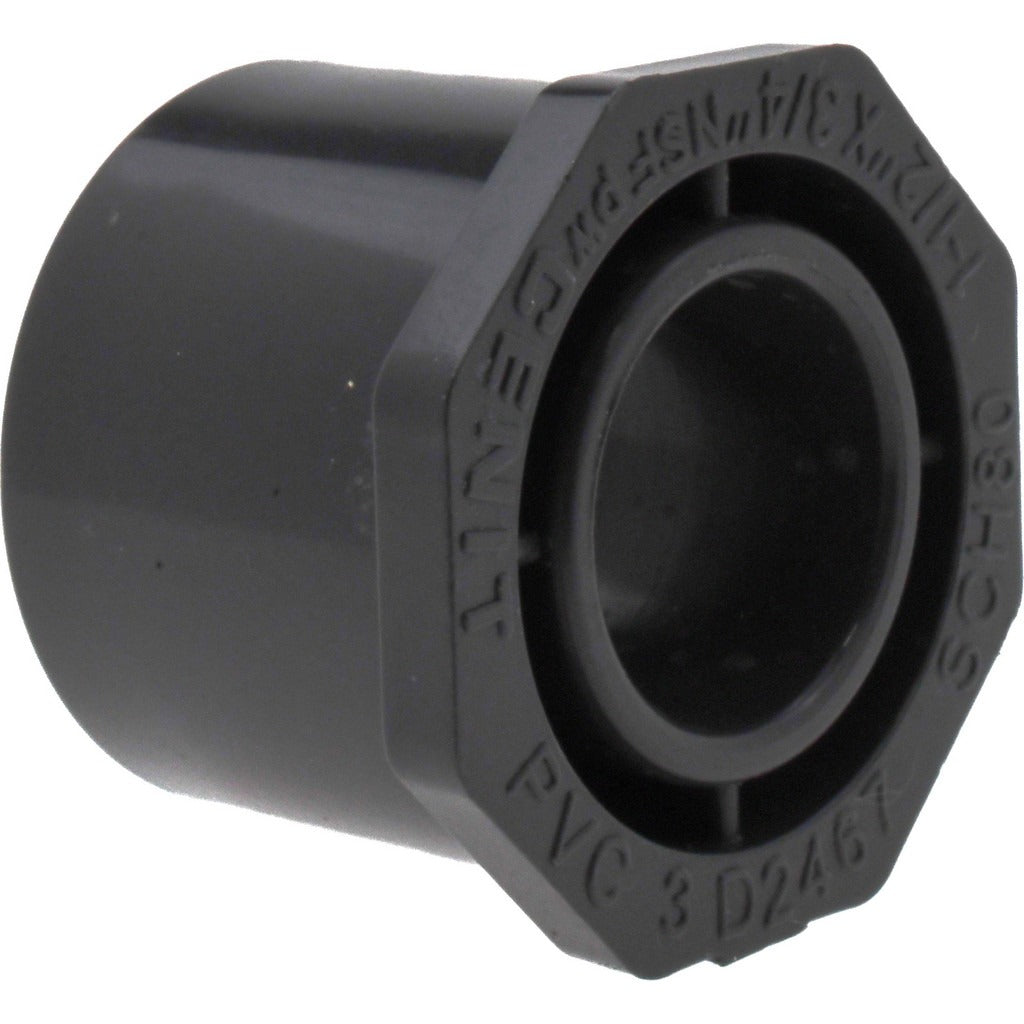

Pro-source 90380500909 Pvc Bushing 1-1/2x3/4 in Sch 80

Product Description

The PRO-SOURCE 90380500909 is a Schedule 80 PVC pipe bushing designed to reduce a 1-1/2-inch pipe connection down to a 3/4-inch line. It features a spigot on the inlet end and a slip socket on the outlet end, allowing it to integrate directly into standard solvent-weld PVC systems. At 0.45 pounds, this fitting is lightweight but built to the heavier wall thickness of Schedule 80, which provides greater pressure tolerance and impact resistance compared to Schedule 40. Plumbers and pipefitters install this bushing wherever a line-size reduction is needed within a PVC pressure or drainage system.

This bushing is suited for residential and light commercial plumbing applications including water distribution, irrigation, and chemical-handling systems where PVC is the specified material. The spigot-by-slip end configuration allows it to insert into an existing slip-socket fitting on the larger end while accepting a slip fitting or pipe on the smaller end. It is sold individually and is compatible with standard solvent-cement joining methods.

Key Features

• Schedule 80 PVC construction provides heavier wall thickness and higher pressure ratings than Schedule 40
• Spigot x Slip end connections support standard solvent-weld assembly
• Reduces 1-1/2-inch connections to 3/4-inch line size in a single fitting
• Lightweight at 0.45 pounds for easy handling in tight spaces
• UNSPSC Code 40175300 for procurement and cataloging compliance

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC piping systems using solvent-weld connections at 1-1/2 x 3/4 inch line sizes.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter following applicable IPC guidelines. Shut off and depressurize the system completely before cutting into any existing line. Use only PVC-rated solvent cement and primer appropriate for Schedule 80 fittings, and allow full cure time before restoring pressure. Do not apply heat or use this fitting with threaded connections without an appropriate adapter.
