Pro-source 90341100009 Cpvc Pipe Flange 1/2 Inch Slip

Product Description

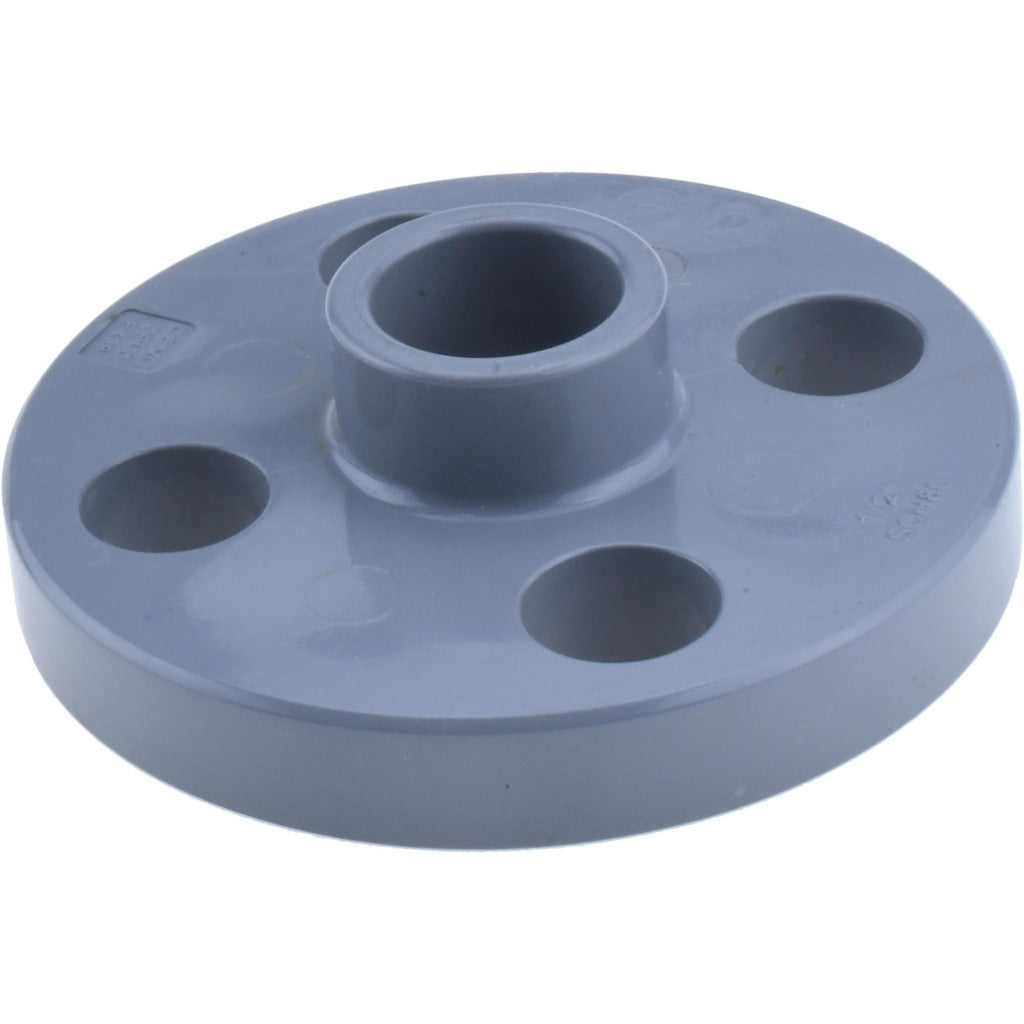

The PRO-SOURCE 90341100009 is a one-piece CPVC pipe flange sized for 1/2-inch pipe with slip end connections. CPVC construction provides reliable chemical and temperature resistance for both hot and cold water plumbing systems. The one-piece design eliminates the need for a separate backing ring, reducing parts count and installation time. This flange is installed by licensed plumbers and pipefitters working on residential and light commercial piping systems where a bolted flange joint is required. At 0.57 pounds, the fitting is lightweight and easy to handle in confined spaces.

This flange is suited for CPVC piping systems in residential hot and cold water distribution, as well as light commercial plumbing applications where CPVC is the specified pipe material. The slip end connection allows the fitting to be solvent-cemented directly onto standard 1/2-inch CPVC pipe, making it compatible with typical Schedule 40 and Schedule 80 CPVC piping systems. It is a practical choice wherever a flanged termination point is needed on a small-diameter CPVC run, such as at pump connections, valve stations, or equipment tie-ins.

Key Features

• One-piece flange design eliminates separate backing ring for a simpler installation
• CPVC material offers resistance to corrosion, scale, and elevated water temperatures
• Slip end connection accepts standard 1/2-inch CPVC pipe for solvent-cement joining
• Lightweight at 0.57 pounds, suitable for use in tight or overhead installation spaces
• Compatible with common CPVC solvent cements and primers per ASTM standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2-inch CPVC piping systems using slip-style solvent-cement connections.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off and depressurize the water supply completely before cutting into any existing piping. Use a CPVC-compatible primer and solvent cement rated for the pipe schedule in use, and allow full cure time before pressurizing the system. Do not use this fitting with PVC solvent cement or on copper, PEX, or other non-CPVC pipe materials.
