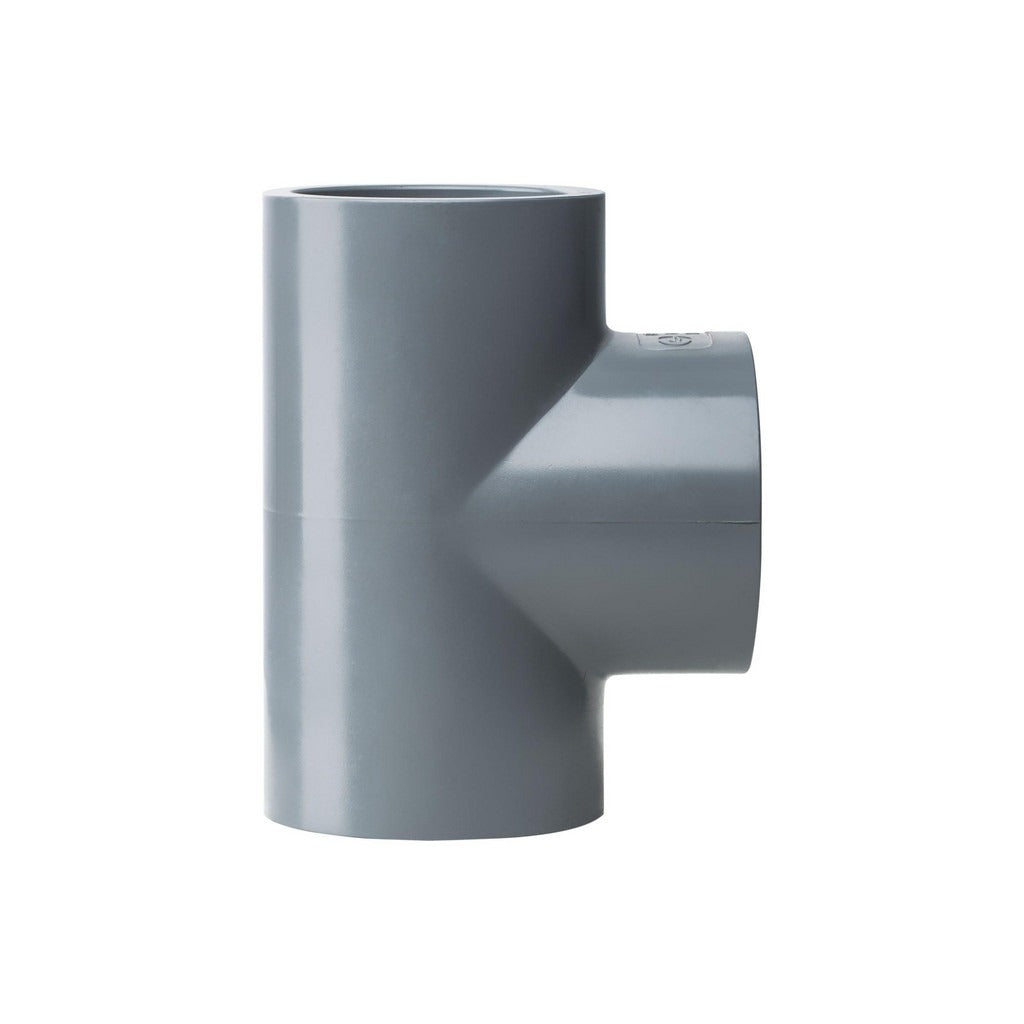

Pro-source 90340600309 Cpvc Tee 1-1/4 in Sch 80 Fipt

Product Description

The PRO-SOURCE 90340600309 is a Schedule 80 CPVC pipe tee designed for threaded piping systems requiring female iron pipe thread connections on all three ports. Rated at Schedule 80 wall thickness, this fitting handles higher pressure and temperature demands than standard Schedule 40 CPVC components. The 1-1/4-inch size fits common branch and run configurations in both supply and distribution lines. CPVC construction provides corrosion resistance and is suitable for hot and cold water service as well as many chemical handling applications. Licensed plumbers and pipefitters install this fitting in conjunction with CPVC-compatible thread sealants and standard pipe wrenches.

This tee is used in residential and light commercial plumbing systems where a threaded branch connection is required at a 1-1/4-inch line. Typical applications include domestic hot and cold water distribution, irrigation headers, and industrial process piping where CPVC material is specified. The FIPT x FIPT x FIPT end connections allow direct threaded assembly onto male-threaded pipe ends or nipples without solvent cementing, making it adaptable for field repairs and retrofit installations where disassembly may be needed in the future.

Key Features

• Schedule 80 wall thickness for elevated pressure and temperature service
• CPVC material provides corrosion resistance and suitability for hot water lines
• FIPT x FIPT x FIPT end connections on all three ports for fully threaded assembly
• 1-1/4-inch fitting size for standard branch tee configurations
• Lightweight construction at 0.9 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement and standard-duty fitting for Schedule 80 CPVC threaded piping systems using 1-1/4-inch female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply line completely before removing any existing fitting or threading this tee into the system. Use a CPVC-compatible thread sealant or PTFE tape on all male threads before assembly and tighten with a pipe wrench to a snug fit, avoiding over-tightening that can crack CPVC fittings. Do not mix CPVC fittings with incompatible solvents, lubricants, or thread compounds not rated for CPVC service.
