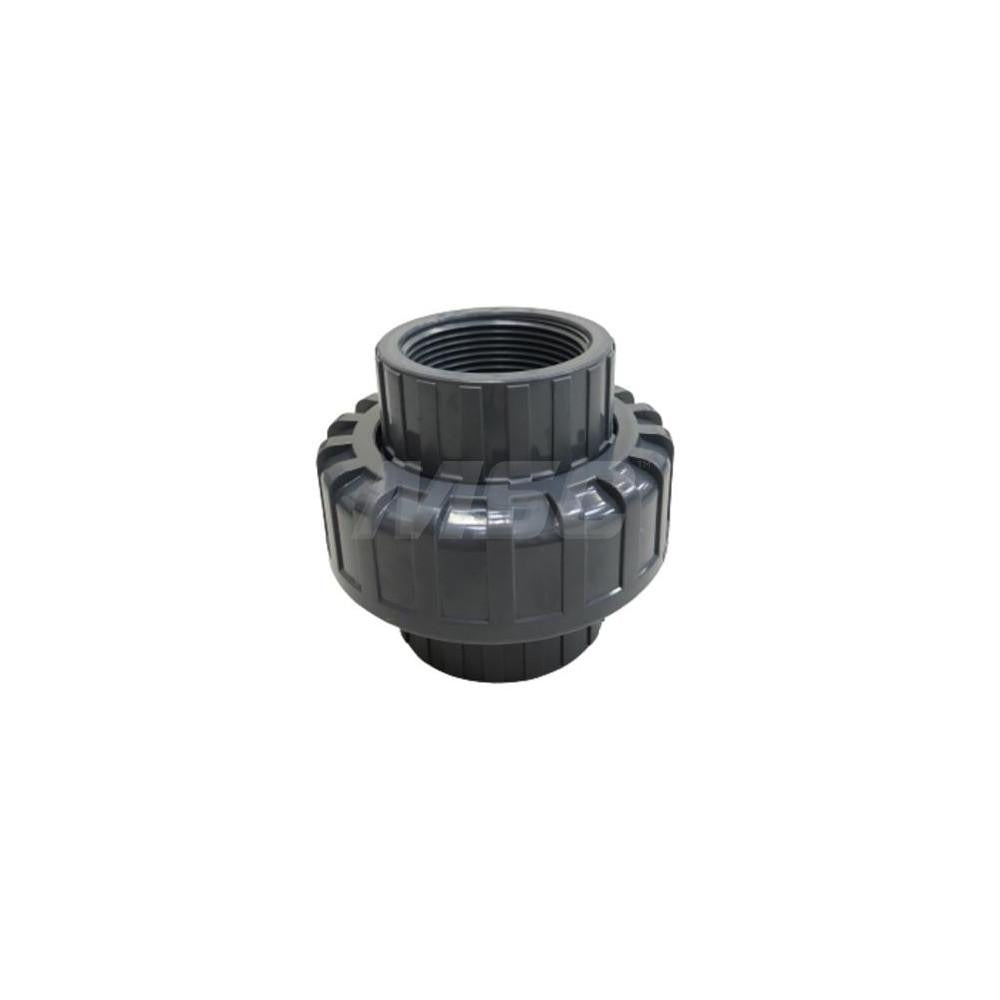

Pro-source 898-030 Pvc Pipe Union 3 in Sch 80 Fipt Epdm

Product Description

The PRO-SOURCE 898-030 is a Schedule 80 PVC pipe union designed for 3-inch FIPT x FIPT connections in pressure-rated piping systems. It features an EPDM O-ring seal at the union joint, which provides a reliable, chemical-resistant connection that can be disassembled without cutting the line. Schedule 80 wall thickness gives this fitting the pressure rating needed for demanding industrial, commercial, and mechanical system applications. Plumbers and pipefitters install this union wherever a serviceable break point is required in a PVC run. The fitting weighs 3.36 pounds and is suited for systems where periodic component removal or inspection is expected.

This union is appropriate for use in cold and hot water distribution, chemical process lines, irrigation systems, and pool or spa plumbing where Schedule 80 PVC is specified. The FIPT x FIPT end connections thread onto male-threaded pipe or fittings on both sides, making it a straightforward drop-in for threaded PVC piping systems. It is a common choice in both new construction and retrofit work where the system must remain accessible for future service.

Key Features

• Schedule 80 PVC construction for elevated pressure ratings compared to Schedule 40
• EPDM O-ring union seal provides chemical resistance and a leak-free joint
• FIPT x FIPT end connections thread onto standard male-threaded PVC pipe and fittings
• 3-inch fitting size suits main-line and larger-diameter branch piping runs
• Disassembles without cutting, enabling in-line component service or removal

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3-inch Schedule 80 threaded PVC piping systems with female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC. Depressurize and drain the line fully before disassembling or installing the union. Use appropriate PVC-rated thread sealant on FIPT connections and do not overtighten, as PVC threads can crack under excessive torque. Inspect the EPDM O-ring for damage before assembly and replace it if any deformation or cracking is present.
