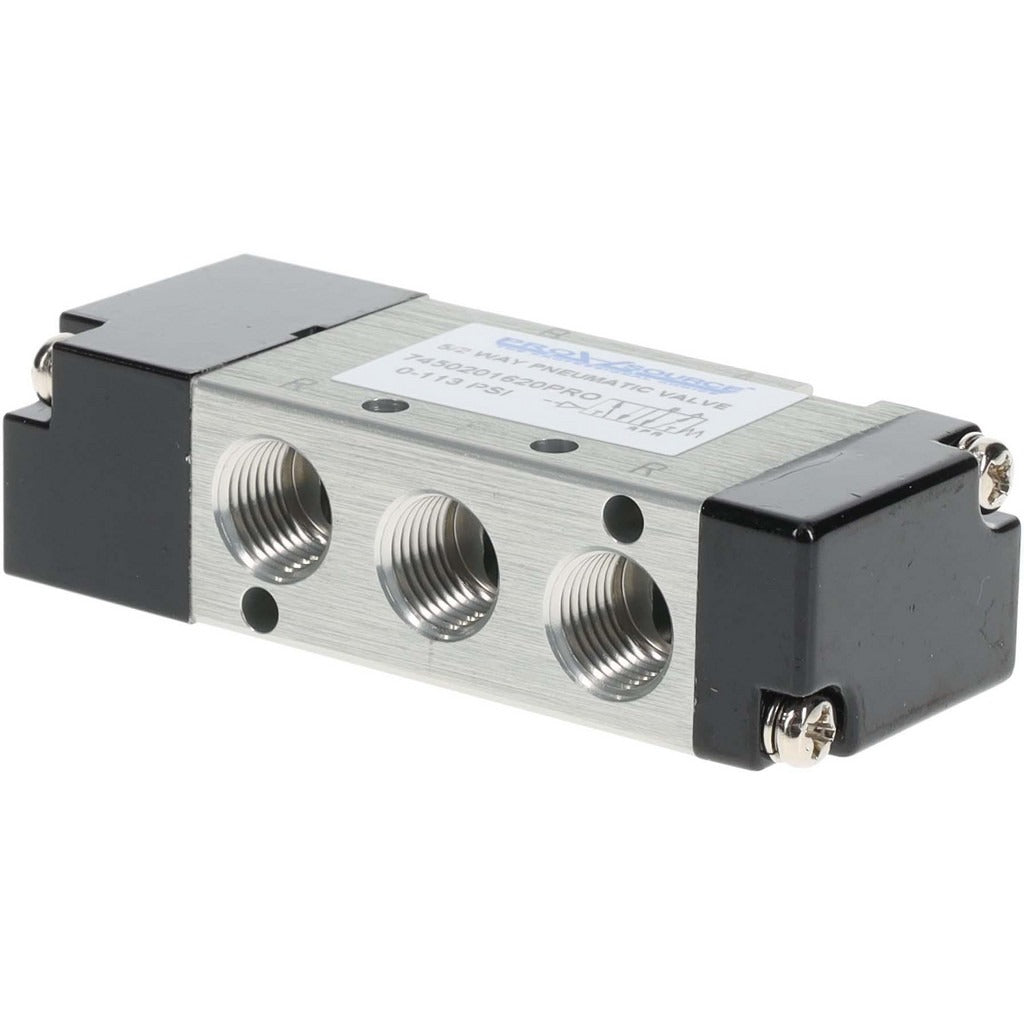

Pro-source 7450201620PRO 5-way 2-position Pneumatic Valve

Product Description

The PRO-SOURCE 7450201620PRO is a 5-way, 2-position pneumatic directional control valve designed for compressed air circuits in industrial and automation applications. It carries a Cv rating of 0.6 and a maximum working pressure of 113 psi, making it suited for light-duty pneumatic actuation tasks. The body is constructed from aluminum alloy for a low-weight, corrosion-resistant build. Port connections are 1/8 inch NPT thread. At 0.15 pounds, this compact valve fits tight panel or manifold installations where space is limited. Pneumatic technicians and automation specialists are the primary installers.

This valve is used in pneumatic control systems where a single pilot signal directs airflow through five ports across two switching positions. Typical applications include actuating small pneumatic cylinders, directing air to tooling, or controlling downstream pneumatic logic in manufacturing, assembly, and process automation environments. It is rated for working temperatures up to 176 degrees F, supporting use in moderately warm industrial settings. The 1/8 inch port size suits low-flow, compact circuit designs where space and weight are priorities.

Key Features

• 5-way, 2-position configuration for directional airflow control in pneumatic circuits
• Cv rating of 0.6 with a flow capacity of 17.66 cubic feet per minute
• Maximum working pressure of 113 psi for light-duty pneumatic actuation
• Aluminum alloy body for lightweight, corrosion-resistant construction
• 1/8 inch NPT port thread size for compact circuit integration
• Maximum working temperature of 176 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation component for compact 5-way, 2-position pneumatic directional control valve applications using 1/8 inch NPT ported circuits at or below 113 psi.

Installation Notes

Installation should be performed by a qualified pneumatic technician or automation specialist familiar with compressed air system design. Depressurize and lockout the air supply before removing or installing any valve in the circuit. Verify all port connections are properly sealed with appropriate thread sealant rated for compressed air service. Confirm system operating pressure does not exceed the 113 psi maximum rating before returning the circuit to service.
