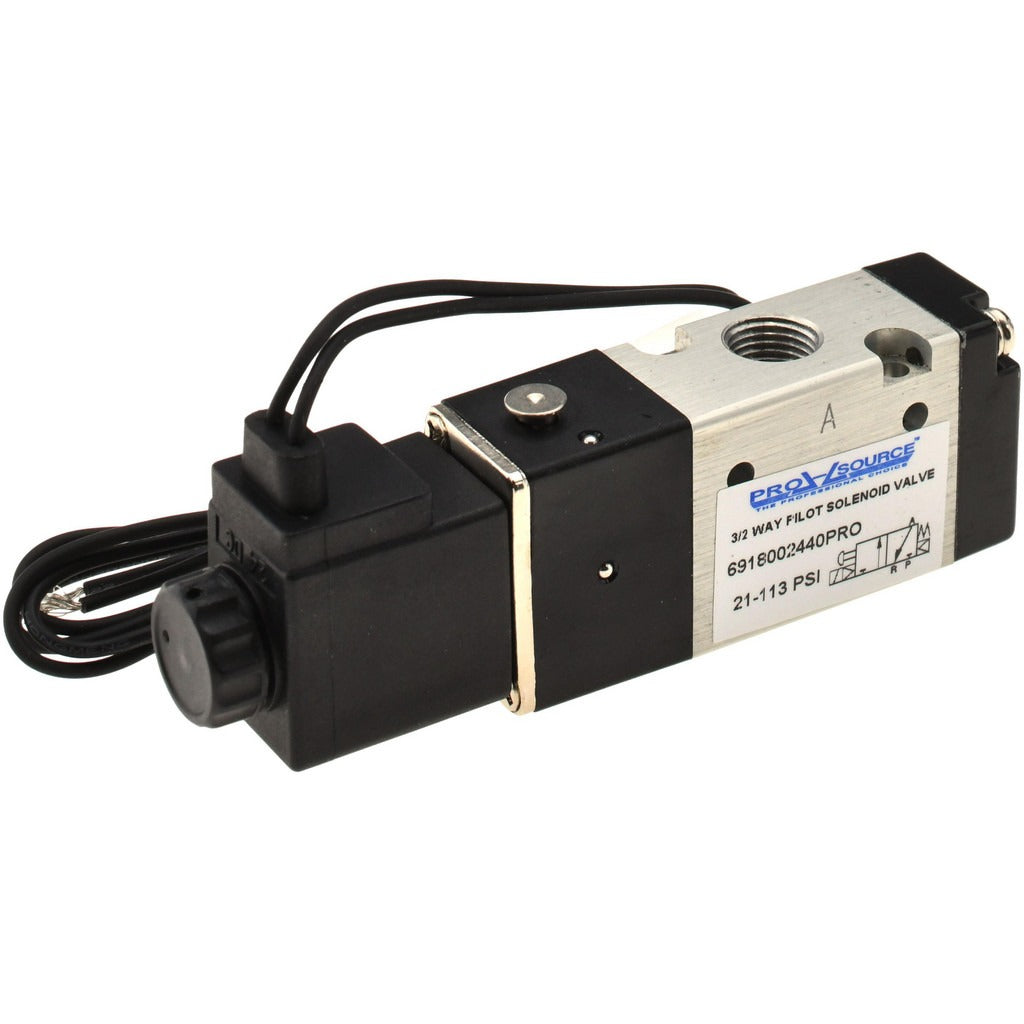

Pro-source 6918002440PRO Stacking Solenoid Valve 24VDC

Product Description

The PRO-SOURCE 6918002440PRO is a stacking solenoid valve designed for compressed air pneumatic circuits requiring precise directional control. This 3-way, 2-position valve uses an internal pilot actuator with spring return, allowing it to default to a known state when de-energized. Operating at 24 volts DC, it delivers a Cv rating of 0.650 and handles flow up to 39.92 cubic feet per minute. Rated for pressures up to 113 psi and temperatures up to 122 degrees F, it suits a wide range of light industrial and automation applications. Licensed pneumatic technicians and industrial maintenance professionals are the primary installers.

This valve is intended for use with compressed air systems in both light industrial and automation environments. Its stacking design allows multiple valves to be assembled in a manifold configuration, making it well suited for compact panel builds and multi-actuator control circuits. The 1/8 inch inlet and 1/8 inch outlet ports fit standard pneumatic tubing and fittings common in small-cylinder and instrument air applications. The compact footprint makes it a practical choice where panel space is limited.

Key Features

• 3-way, 2-position configuration with spring return for fail-safe de-energized state
• Internal pilot actuation eliminates the need for an external pilot supply
• 24 volts DC coil voltage compatible with standard PLC output circuits
• Cv rating of 0.650 with flow capacity of 39.92 cubic feet per minute
• Stacking body design supports manifold assembly for multi-valve installations
• Rated to 113 psi maximum working pressure and 122 degrees F maximum temperature

Compatibility

Designed for use with compressed air systems. Compatible with standard pneumatic manifold stacking configurations using 1/8 inch port connections at 24 volts DC.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. De-pressurize and lock out the air supply before removing or installing any valve in the manifold stack. Verify that the supply voltage matches the 24 volt DC coil rating before energizing. Consult applicable local codes and manufacturer manifold assembly guidelines when configuring stacked valve banks.
