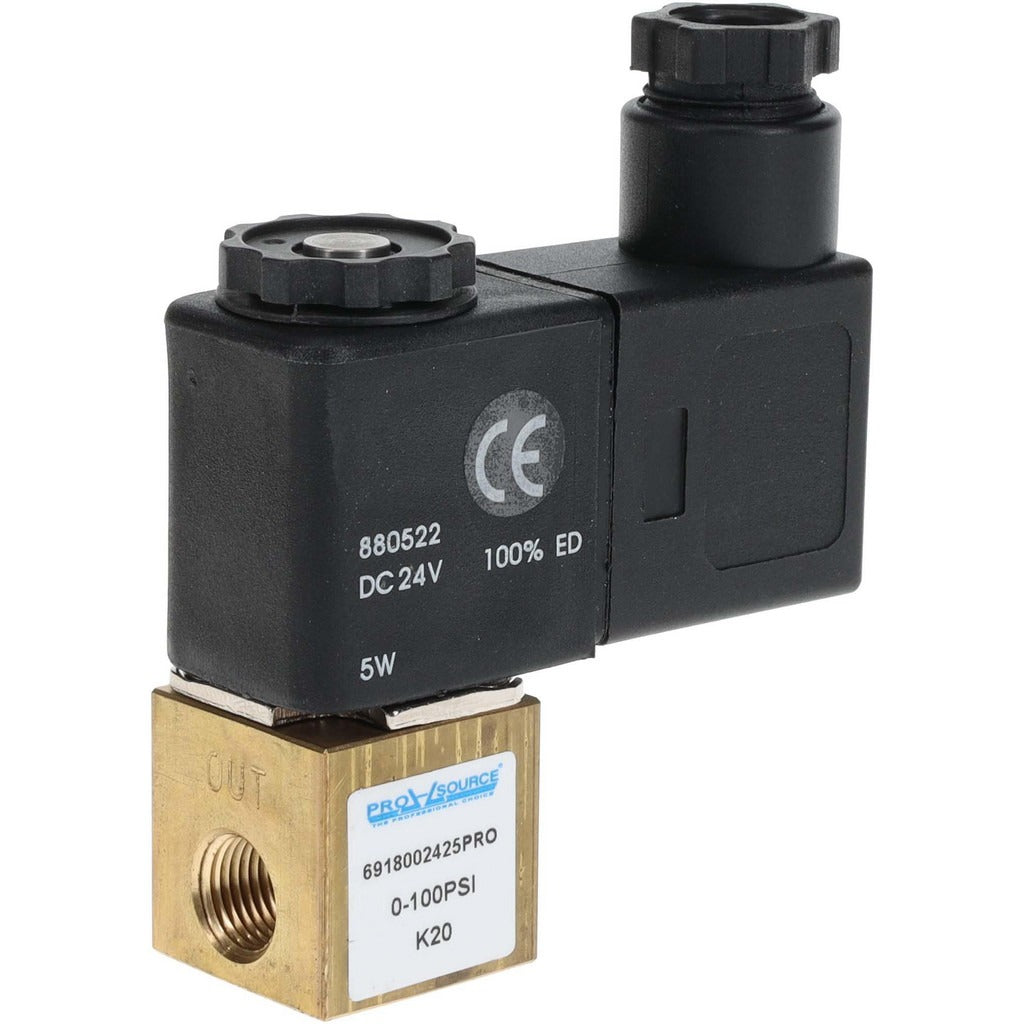

Pro-source 6918002425PRO Stacking Solenoid Valve 24VDC

Product Description

The PRO-SOURCE 6918002425PRO is a direct-acting, 2-way, 2-position stacking solenoid valve designed for precise flow control in pneumatic and fluid systems. Operating on 24 volts DC, it features a spring-return actuator that returns the valve to its default position when de-energized. With a Cv rating of 0.100 and a maximum working pressure of 100 psi, this valve is suited for low-flow applications requiring reliable on/off control. The compact square-body design measures 2.83 inches high, 0.87 inches wide, and 2.3 inches in length, making it practical for space-constrained installations.

This valve is intended for use with compressed air, light oil, and water in industrial and commercial fluid control systems. Its 1/8 inch inlet and 1/8 inch outlet ports fit standard small-bore pneumatic and hydraulic circuits. The stacking body style allows multiple valves to be ganged together in manifold assemblies, a common configuration in automated machinery, process control panels, and fluid distribution systems. It is typically installed by industrial maintenance technicians, automation specialists, or licensed plumbers working with light-duty fluid control circuits.

Key Features

• Direct-acting solenoid operation requires no minimum pressure differential to open or close
• Spring-return design automatically returns to default position on power loss for fail-safe operation
• 24 volt DC coil voltage compatible with standard low-voltage control circuits
• 1/8 inch inlet and outlet ports fit common small-bore pneumatic and hydraulic fittings
• Stacking square-body design supports manifold assembly configurations
• Rated for compressed air, light oil, and water service up to 194 degrees F

Compatibility

Designed for use with compressed air, light oil, and water systems requiring direct-acting 2-way solenoid valve control with 1/8 inch port connections and 24 volt DC actuation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid control systems. De-energize the circuit and relieve all system pressure before removing or installing any solenoid valve. Verify that supply voltage matches the 24 volt DC coil rating before energizing. Ensure port connections are properly sealed and torqued to fitting manufacturer specifications to prevent leakage.
