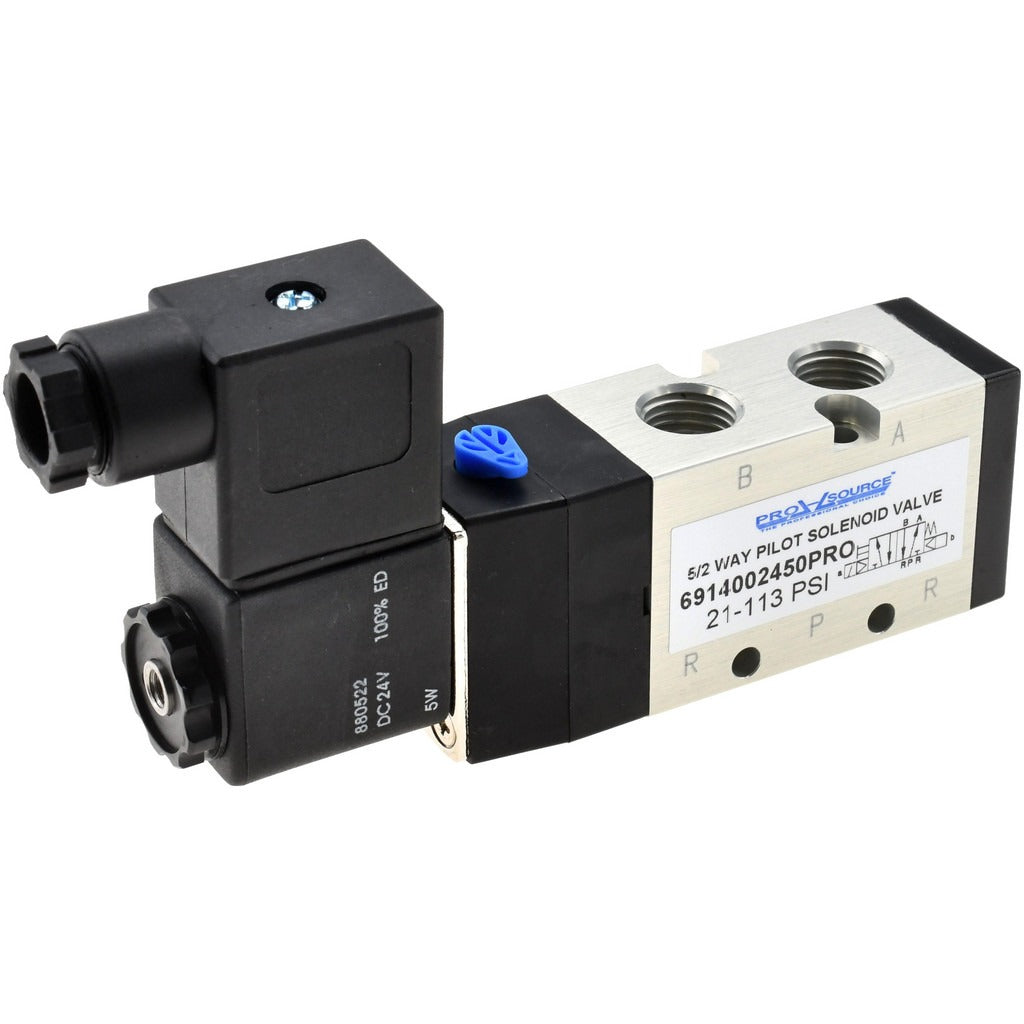

Pro-source 6914002450PRO 5-way Solenoid Valve 24VDC

Product Description

The PRO-SOURCE 6914002450PRO is a stacking solenoid valve designed for directional control of compressed air in pneumatic systems. It operates as a 5-way, 2-position valve with a single solenoid and spring return, using an internal pilot actuator to shift the spool. Running on 24 volts DC, it delivers a Cv rating of 0.98 and a flow capacity of 50.79 cubic feet per minute. At 2.6 inches tall and 5.12 inches long, it fits standard stacking manifold assemblies. Licensed pneumatic technicians and automation system integrators are the typical installers for this type of valve.

This valve is suited for industrial and commercial pneumatic automation applications where directional control of compressed air is required. It handles working pressures up to 113 psi and operating temperatures up to 140 degrees F. The spring return configuration means the valve defaults to its rest position on de-energization, which is a common requirement in safety-oriented machine circuits. Its compact stacking design makes it appropriate for manifold-mounted multi-valve assemblies on actuators, cylinders, and other pneumatic devices.

Key Features

• 5-way, 2-position directional control with single solenoid and spring return
• Internal pilot actuation for reliable spool shifting without external pilot supply
• 24 volts DC coil voltage for compatibility with standard PLC and control system outputs
• Cv rating of 0.98 with 50.79 CFM flow capacity
• Rated to 113 psi maximum working pressure and 140 degrees F maximum temperature
• Stacking manifold design with 1/4 inch inlet and 1/8 inch outlet port sizes

Compatibility

Designed for use with compressed air systems in stacking manifold configurations where 5-way, 2-position directional control valves are specified.

Installation Notes

Installation is typically performed by a qualified pneumatic or automation technician. Depressurize the air supply and de-energize all control circuits before removing or installing the valve. Verify that the manifold port pattern and electrical connector type match before mounting. Confirm coil voltage against the control system output before energizing.
