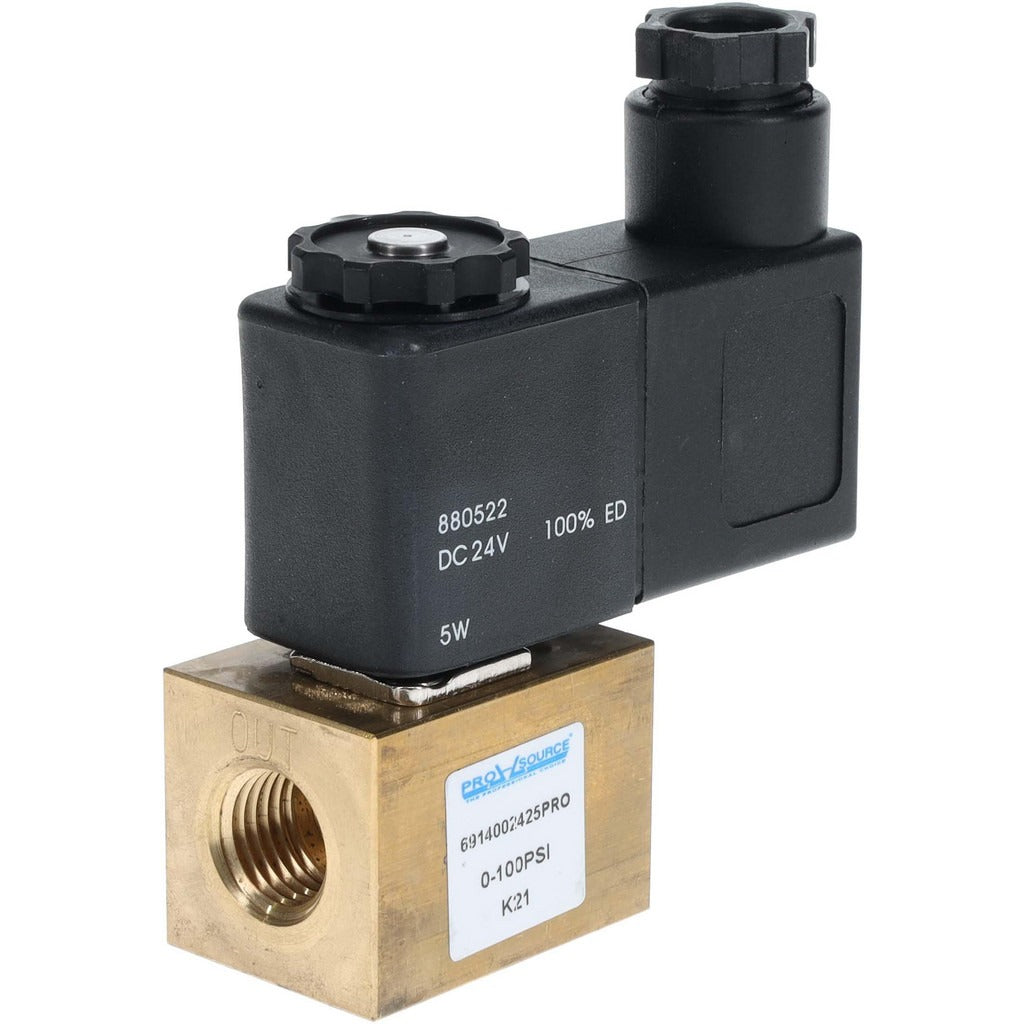

Pro-source 6914002425PRO Stacking Solenoid Valve 24V Dc

Product Description

The PRO-SOURCE 6914002425PRO is a direct-acting, 2-way, 2-position stacking solenoid valve designed for precise flow control in pneumatic and fluid system applications. Operating on 24 volts DC, it features a spring-return actuator that moves the valve to its default position when the solenoid is de-energized. With a Cv rating of 0.18 and a maximum working pressure of 100 psi, it is suited for low-flow, controlled-pressure circuits. The valve accepts 1/4-inch inlet and outlet connections and is installed by qualified automation technicians, fluid power specialists, and maintenance professionals working on compressed air, light oil, or water systems.

This valve is intended for use in compact hydraulic and pneumatic control assemblies where stacking or manifold-mount configurations are required. It handles compressed air, light oil, and water media at temperatures up to 194 degrees F. With a flow capacity of 5.30 cubic feet per minute, it fits well in small-bore actuator circuits, point-of-use control stations, and modular valve bank installations common in light industrial and OEM equipment environments.

Key Features

• Direct-acting solenoid operation with spring return for fail-safe positioning
• 24V DC coil voltage for compatibility with standard PLC and low-voltage control systems
• Cv rating of 0.18 supports controlled low-flow applications up to 5.30 CFM
• Rated to 100 psi maximum working pressure
• Compatible with compressed air, light oil, and water media
• 1/4-inch inlet and outlet ports in a compact square-body form factor

Compatibility

Designed for use with compressed air, light oil, and water media in direct-acting 2-way solenoid valve applications requiring a 1/4-inch port size and 24V DC coil voltage.

Installation Notes

Installation should be performed by a qualified fluid power technician or automation professional. De-energize and depressurize the system completely before removing or installing any solenoid valve. Verify that supply voltage matches the 24V DC coil rating before energizing. Ensure port fittings are compatible with the 1/4-inch connections and that system media does not exceed the rated pressure or temperature limits.
