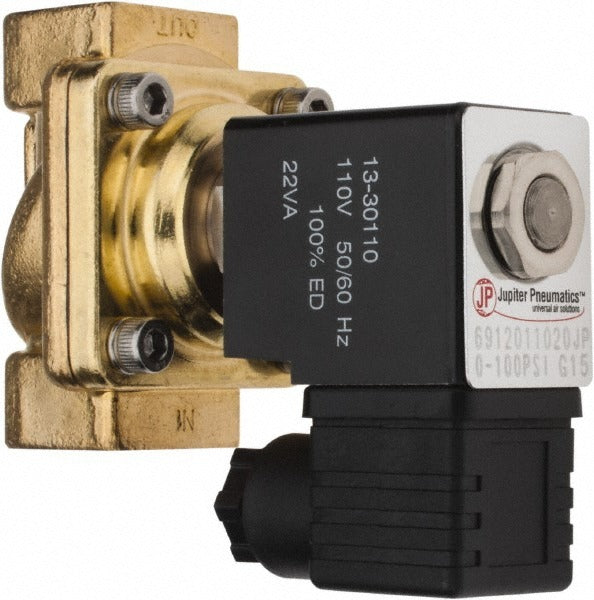

Pro-source 6912011020PRO Stacking Solenoid Valve 110V Ac

Product Description

The PRO-SOURCE 6912011020PRO is a 2-way, 2-position stacking solenoid valve with an assisted lift actuator and spring return mechanism. It controls the flow of compressed air, light oil, or water in pneumatic and fluid control systems. The valve operates at 110 volts AC and delivers a Cv rating of 4.12, supporting flow rates up to 87.9 cubic feet per minute. With 1/2-inch inlet and outlet ports, it fits standard plumbing and pneumatic manifold configurations. Rated to a maximum working pressure of 100 psi and a maximum working temperature of 194 degrees F, it suits demanding industrial and mechanical system environments. Installation is typically performed by licensed mechanics, pipefitters, or pneumatic system technicians.

This stacking solenoid valve is designed for use in compressed air circuits, light oil distribution lines, and water control systems. Its stacking configuration makes it well suited for manifold-mounted multi-valve assemblies common in automated machinery, HVAC pneumatic controls, and fluid handling equipment. The spring return design ensures the valve returns to its default position on power loss, which is essential in fail-safe system designs. The compact footprint allows installation in tight panel or manifold spaces where multiple valves must operate in parallel.

Key Features

• Assisted lift actuator for reliable valve actuation at rated voltage
• Spring return ensures fail-safe default position on power loss
• Cv rating of 4.12 with flow capacity up to 87.9 cubic feet per minute
• Compatible with compressed air, light oil, and water media
• Rated to 100 psi maximum working pressure and 194 degrees F maximum temperature
• Stacking design supports manifold-mounted multi-valve assemblies

Compatibility

Designed for use with compressed air, light oil, and water systems. Suitable for manifold-stacking solenoid valve assemblies in industrial automation, pneumatic controls, and fluid handling applications requiring a 1/2-inch port, 2-way, 2-position valve at 110 volts AC.

Installation Notes

Installation should be performed by a qualified pipefitter, pneumatic systems technician, or licensed mechanic familiar with fluid and pneumatic control systems. De-energize the system and relieve all line pressure before removing or installing the valve. Verify that the supply voltage matches the 110-volt AC coil rating before energizing. Follow applicable NFPA and local mechanical codes for fluid and pneumatic control system installations.
