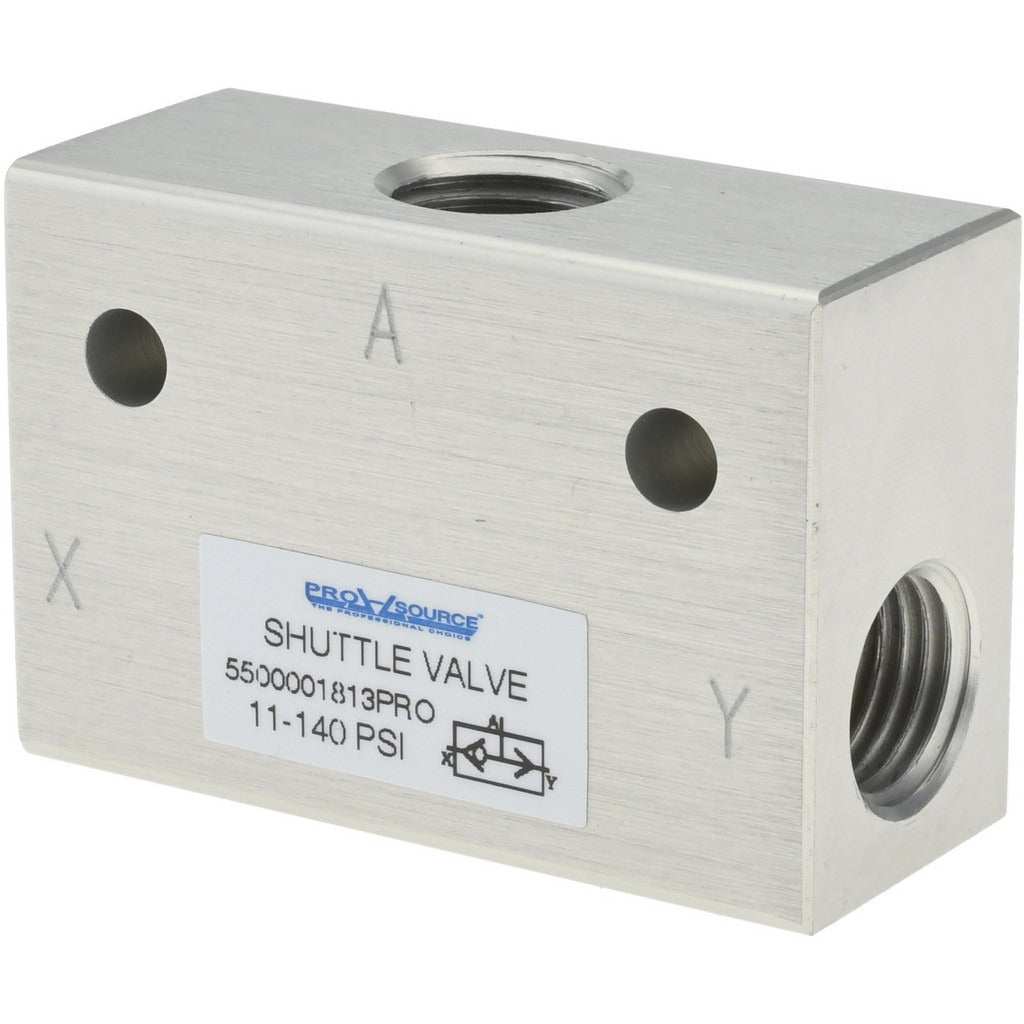

Pro-source 5500001813PRO Shuttle Air Flow Control Valve

Product Description

The PRO-SOURCE 5500001813PRO is a shuttle-type air flow control valve designed to regulate airflow direction in pneumatic systems. Built from aluminum alloy, this valve uses a 1/4 inch NPT female thread connection and provides reliable, low-maintenance flow control in compressed air circuits. The shuttle mechanism redirects or blocks air flow based on pressure differentials, making it a dependable component for automated and manually actuated pneumatic lines. At 0.21 pounds, it is a compact, lightweight fitting suited for tight panel or manifold installations. Typical installers include industrial maintenance technicians, pneumatic system assemblers, and experienced mechanical tradespeople working with compressed air controls.

This shuttle valve is appropriate for use in light industrial, commercial, and mechanical systems that rely on compressed air flow management. It fits into pneumatic control circuits where directional air flow regulation is required, such as actuator supply lines, cylinder control circuits, or air logic systems. The 1/4 inch NPT female thread allows direct connection to standard pipe fittings, quick-connect manifolds, or threaded component ports found in common pneumatic assemblies. The aluminum alloy body holds up well in dry or lightly lubricated air environments.

Key Features

• Shuttle valve design for directional air flow control in pneumatic circuits
• Aluminum alloy body for lightweight construction and corrosion resistance in dry air service
• 1/4 inch NPT female thread for standard pipe and fitting compatibility
• Compact footprint: 2.05 inches wide, 1.38 inches tall, 0.87 inches in length
• Lightweight at 0.21 pounds, suitable for space-constrained panel or manifold mounting

Compatibility

Designed as a standard shuttle-type pneumatic flow control valve with 1/4 inch NPT female threading, compatible with compressed air systems using standard NPT-threaded components and fittings.

Installation Notes

Installation should be performed by a qualified pneumatic technician or licensed mechanical tradesperson. Depressurize and lock out the compressed air supply completely before removing or installing any pneumatic component. Use thread sealant rated for pneumatic service on NPT connections and torque fittings to the fitting manufacturer's standard recommendation. Verify flow direction orientation before pressurizing the system to ensure the shuttle mechanism operates as intended.
