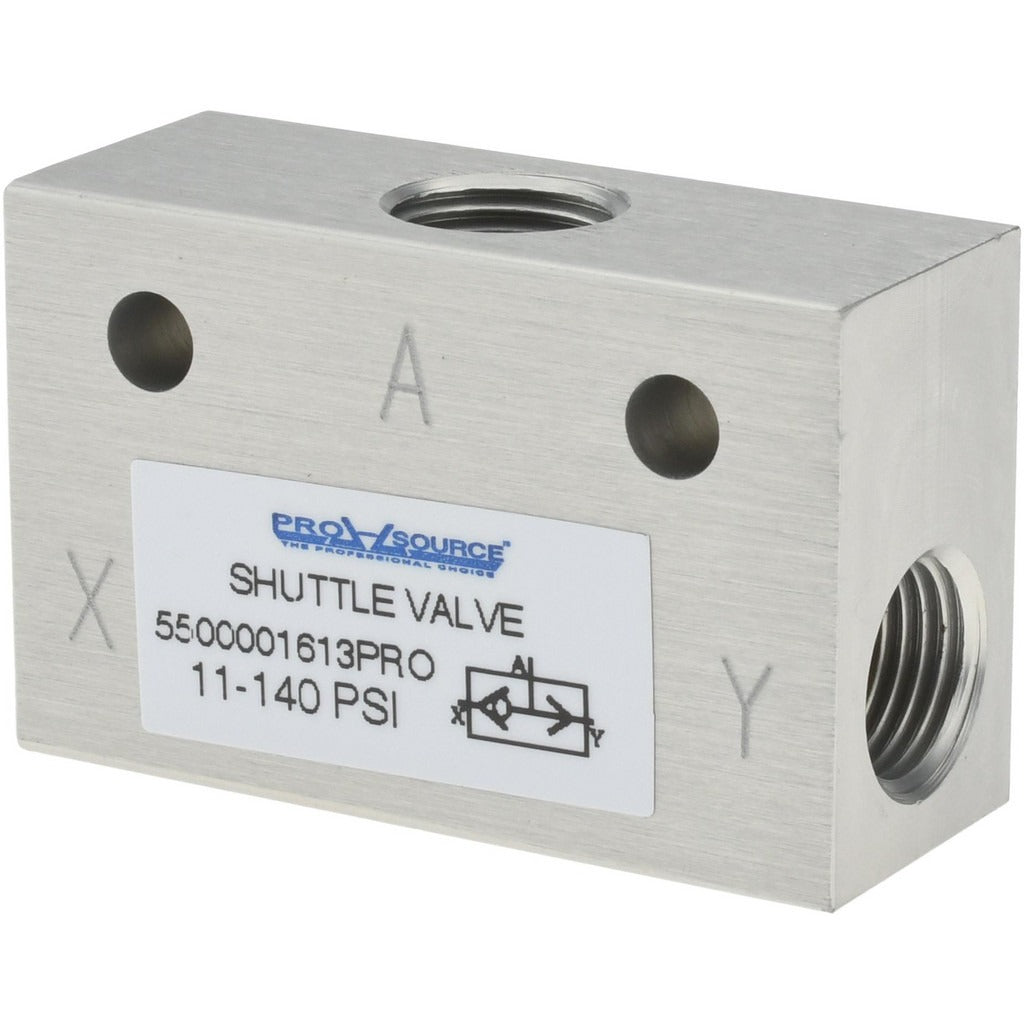

Pro-source 5500001613PRO Shuttle Air Flow Control Valve

Product Description

The PRO-SOURCE 5500001613PRO is a shuttle-type air flow control valve designed to regulate airflow direction in pneumatic systems. The body is constructed from aluminum alloy for a balance of light weight and durability in compressed air applications. Threaded with a 1/8 inch female NPS connection, this valve is a compact unit measuring 1 inch in height, 1.57 inches in width, and 0.63 inches in length. It weighs 0.08 pounds. Pneumatic technicians and maintenance professionals install this type of valve in air circuits where directional flow control is required.

This shuttle valve is suited for use in industrial and commercial pneumatic systems where a reliable, low-weight flow control component is needed. Typical applications include compressed air circuits requiring shuttle logic - allowing flow from one of two inlet sources to a common outlet while blocking the opposing inlet. Its compact dimensions make it well suited for installations with limited panel or manifold space.

Key Features

• Shuttle valve design for directional air flow control in pneumatic circuits
• Aluminum alloy body for lightweight, corrosion-resistant construction
• 1/8 inch female NPS thread for standard pneumatic line connections
• Compact form factor: 1 inch height, 1.57 inches width, 0.63 inches length
• Lightweight at 0.08 pounds for space- and weight-sensitive installations

Compatibility

Designed as a replacement or add-on shuttle air flow control valve for pneumatic systems using 1/8 inch female NPS threaded connections in industrial and commercial compressed air applications.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize the air system completely before removing or installing any valve components. Use appropriate thread sealant compatible with compressed air systems on NPS connections. Verify inlet and outlet orientation matches the shuttle valve flow direction required by the circuit before pressurizing.
