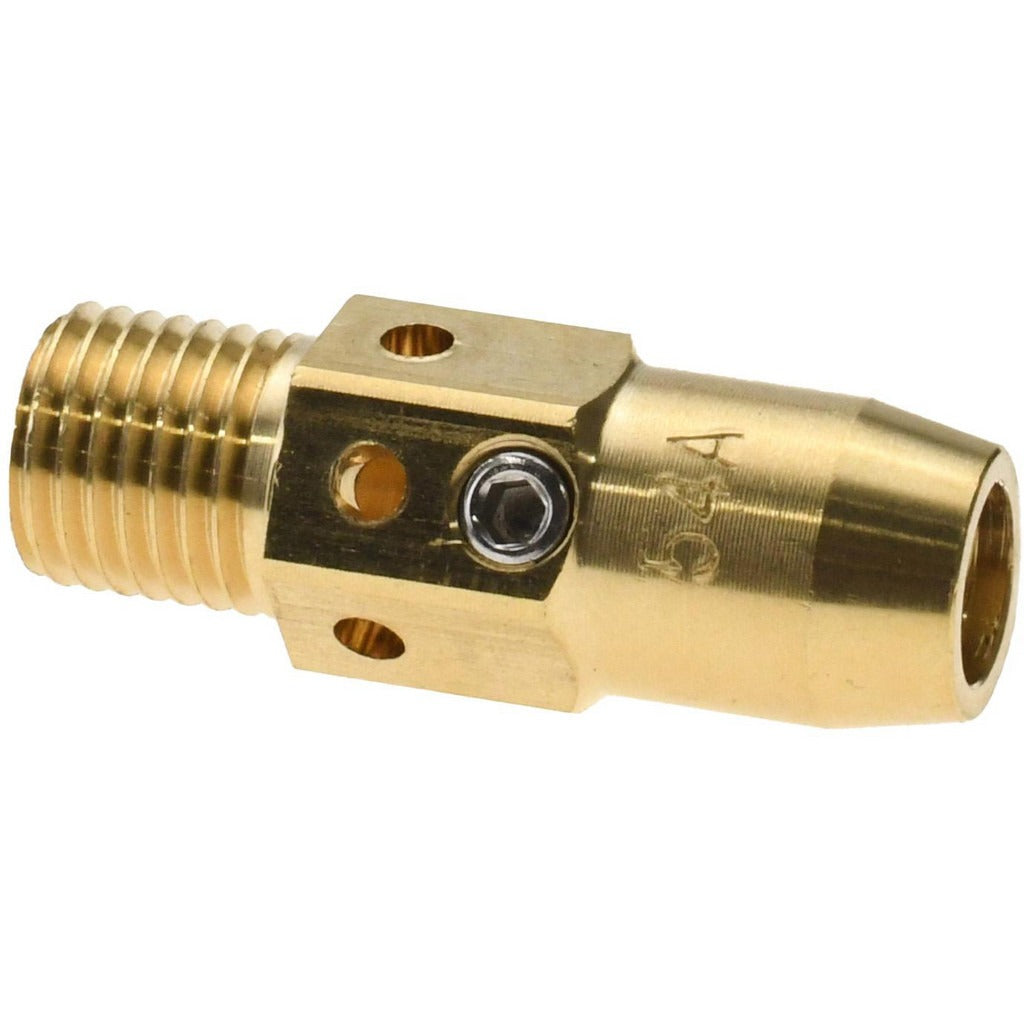

Pro-source 54A Mig Welder Gas Diffuser

Product Description

The PRO-SOURCE 54A is a gas diffuser designed for MIG welding applications. It mounts between the contact tip and the gun body, distributing shielding gas evenly around the weld pool to protect the arc from atmospheric contamination. The 54A accepts wire diameters from 0.023 inches up to 0.94 inches, covering a broad range of MIG wire sizes used in fabrication and maintenance welding. At 0.034 pounds, it is a lightweight consumable replacement part. Welders and fabricators performing routine MIG gun maintenance will find this a direct service item during contact tip or liner changes.

This gas diffuser is suited for MIG welding setups in light industrial, fabrication shop, and field maintenance environments. It is a consumable component replaced during routine gun service when shielding gas flow becomes uneven, spatter buildup restricts gas ports, or when the diffuser threads show wear. Compatible with MIG guns that accept a 54A-style diffuser, it supports both solid wire and flux-core wire processes where shielding gas is used.

Key Features

• Accepts wire outside diameters from 0.023 inches to 0.94 inches
• Distributes shielding gas uniformly around the contact tip and weld zone
• Lightweight at 0.034 pounds for minimal added gun weight
• Compact form factor: 1.25 inches length by 0.44 inches width by 0.44 inches height
• Sold individually as a single-unit package

Compatibility

Designed as an OEM-style replacement gas diffuser for MIG welding guns that accept a 54A-series diffuser. Verify gun manufacturer specifications before installation to confirm thread type and tip seating compatibility.

Installation Notes

Gas diffuser replacement is performed by qualified welders or maintenance technicians. Disconnect the welding machine from power and allow the gun to cool completely before disassembling the gun neck. Remove the nozzle and contact tip before unthreading the diffuser. Do not overtighten the replacement diffuser, as cross-threading or cracking the diffuser body will disrupt gas flow and shorten service life.
