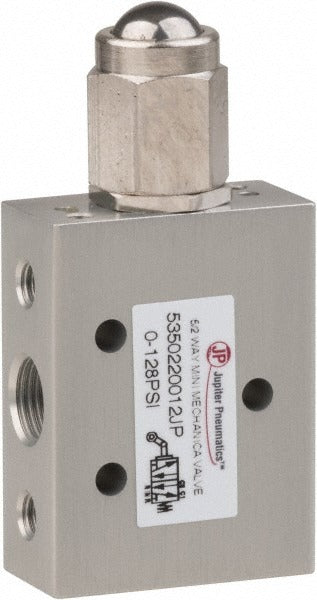

Pro-source 5350220012PRO 5-way 2-position Air Valve

Product Description

The PRO-SOURCE 5350220012PRO is a 5-way, 2-position pneumatic directional control valve designed for compressed-air circuit switching in industrial and mechanical systems. It uses a ball plunger with spring return actuation, delivering a Cv rating of 0.340 and a maximum working pressure of 127.98 psi. Flow capacity is rated at 9.00 cubic feet per minute. The valve is compact in profile, with a 1/8 inch port thread size, making it suitable for space-constrained pneumatic panel builds. Installation is handled by pneumatic system technicians and mechanical trades working with directional-control circuitry.

This valve is suited for applications requiring reliable 5-way, 2-position directional control in compressed-air systems. Typical use cases include actuating double-acting cylinders, switching air circuits in automated machinery, and controlling airflow direction in industrial or light-commercial pneumatic assemblies. The ball plunger actuator allows mechanical trip actuation from a cam, lever, or contact surface, with the spring providing consistent return to the home position without secondary air signal input.

Key Features

• 5-way, 2-position directional control valve for compressed-air systems
• Ball plunger actuator with spring return for reliable mechanical trip operation
• Cv rating of 0.340 with 9.00 CFM flow capacity
• Maximum working pressure of 127.98 psi
• 1/8 inch port thread size for compact pneumatic circuit integration
• Single-unit packaging with no minimum order multiplier

Compatibility

Designed as an OEM-style replacement or new-install directional control valve for compressed-air pneumatic circuits using 1/8 inch ported connections and ball plunger mechanical actuation.

Installation Notes

Installation is performed by qualified pneumatic technicians or mechanical trades familiar with directional-control valve circuits. De-pressurize and lock out the air supply before removing or installing any valve in the circuit. Verify that system operating pressure does not exceed 127.98 psi at any point during operation. Confirm port thread compatibility and use appropriate thread sealant rated for compressed-air service before making connections.
