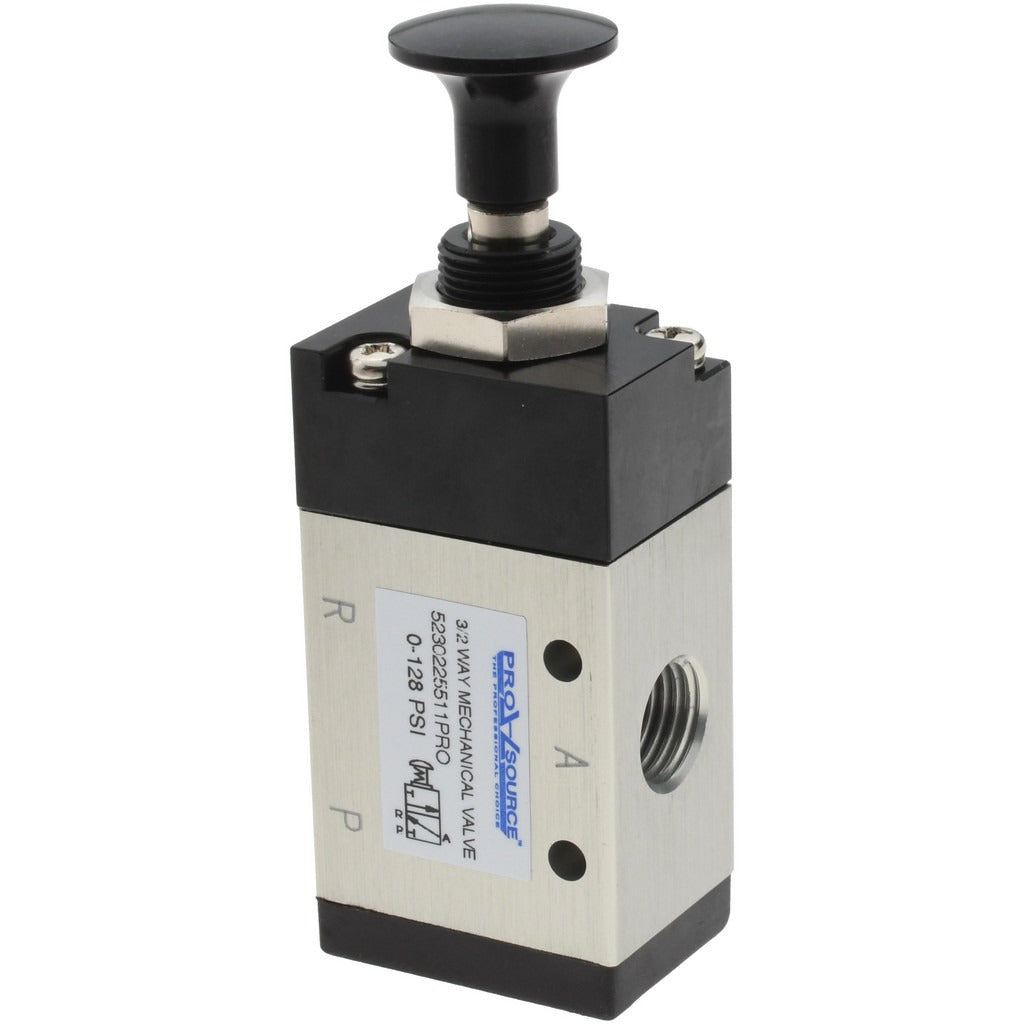

Pro-source 5230225511PRO 3-way Manual Air Valve 0.976 Cv

Product Description

The PRO-SOURCE 5230225511PRO is a 3-way, manually operated pneumatic air valve with a push-pull mechanical actuator. It controls airflow direction in pneumatic circuits by shifting between two positions via direct manual input. The valve carries a Cv rating of 0.976, indicating its flow capacity at a given pressure differential. Threaded NPT ports allow standard pipe connections in compressed-air plumbing setups. This type of valve is typically installed by industrial maintenance technicians, pneumatic system integrators, or mechanical contractors working on air-actuated equipment. Its palm-button style actuator is suited for applications requiring direct, tactile operator control at the point of use.

This valve fits into pneumatic control circuits where manual direction control is needed without an electrical solenoid. Common applications include workstation air controls, machine tool pneumatics, and small-scale automation where an operator manually cycles a downstream actuator or cylinder. The 3-way configuration allows the valve to supply pressure to one port while exhausting another, making it practical for single-acting cylinder control or similar circuits. Its compact footprint makes it suitable for panel mounting or inline placement in confined pneumatic assemblies.

Key Features

• 3-way, 2-position valve design for directional pneumatic control
• Push-pull palm button actuator for direct manual operation
• Cv rating of 0.976 for defined airflow capacity
• NPT threaded ports for standard pipe and fitting connections
• Compact body at 3.80 inches tall and 1.38 inches wide
• No electrical components, reducing complexity in non-electric control zones

Compatibility

Designed as an OEM-style replacement or drop-in addition for 3-way manual mechanical pneumatic valve applications using NPT-threaded connections in compressed-air systems.

Installation Notes

Installation is performed by qualified pneumatic system technicians or industrial mechanical contractors. Depressurize and lock out the air supply before removing or installing any valve in a pneumatic circuit, following applicable OSHA lockout/tagout procedures. Use appropriate thread sealant rated for compressed air on all NPT connections, and verify flow direction and port assignment before returning the system to service. Do not exceed the system pressure rating of the connected circuit or downstream components.
