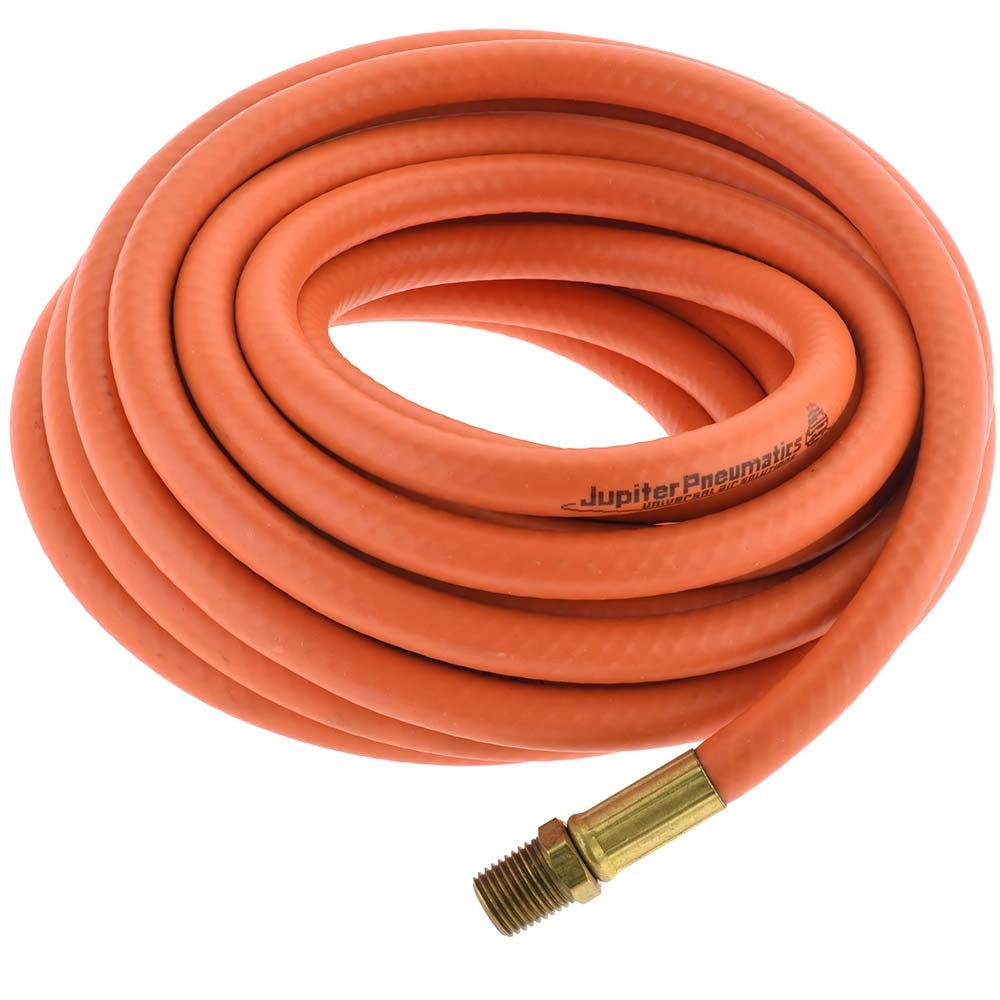

Pro-source 5002502513JP Air Hose 1/4 in 25 Ft 300 Psi

Product Description

The PRO-SOURCE 5002502513JP is a multipurpose compressed air hose built for general-purpose pneumatic applications in shops, job sites, and mechanical service environments. Constructed from PVC, this hose measures 1/4 inch inside diameter and 15/32 inch outside diameter at a 25-foot working length. It handles a maximum working pressure of 300 psi and operates across a temperature range of 23 degrees F to 150 degrees F. Both ends terminate in 1/4 inch MNPT fittings, making it compatible with standard air tool couplers and compressor outlets. The orange exterior improves visibility on busy work surfaces. This hose is suited for light to medium pneumatic tool use and is a standard stocking item for HVAC techs, plumbers, and general maintenance crews.

This hose fits typical compressed air service scenarios including connecting air compressors to impact wrenches, ratchets, blow guns, and inflation equipment. The 25-foot length provides working reach without the weight penalty of longer rubber hoses. The PVC construction keeps the hose lightweight and manageable in moderate shop and field conditions. MNPT end connections allow direct thread-in attachment to standard 1/4 inch air fittings without additional adapters. It is appropriate for residential and light commercial trade work where a mid-length, lightweight air hose is needed for pneumatic tool operation.

Key Features

• 300 psi maximum working pressure for general pneumatic tool use
• 1/4 inch ID with 15/32 inch OD, 25-foot length
• PVC construction — lightweight and kink-resistant in moderate temperatures
• Temperature rated from 23 degrees F to 150 degrees F
• 1/4 inch MNPT x MNPT end connections for direct attachment to standard air fittings
• High-visibility orange exterior

Compatibility

Designed for use with standard 1/4 inch MNPT air tool couplers and compressor outlets commonly found in residential and light commercial pneumatic service setups.

Installation Notes

Installation is performed by threading the MNPT fittings directly into mating female NPT couplers on the compressor outlet and air tool. Depressurize the air supply completely before connecting or disconnecting the hose. Inspect the hose for cuts, abrasions, or bubbling before each use and remove from service if damage is found. Do not exceed the rated working pressure of 300 psi or operate outside the listed temperature range.
