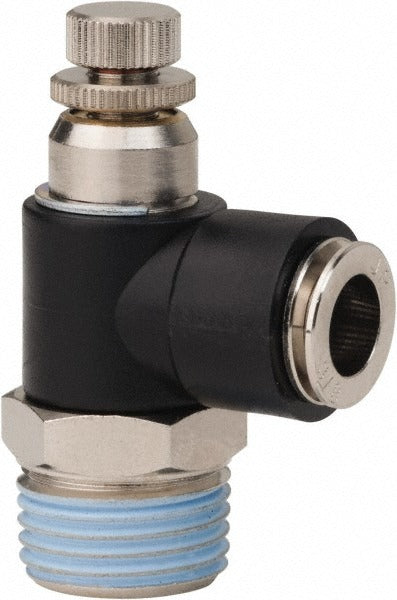

Pro-source 4827101415PRO Air Flow Control Valve 3/8 Tube Od

Product Description

The PRO-SOURCE 4827101415PRO is a right-angle air flow control valve designed to regulate airflow direction and volume in pneumatic tubing systems. It features a tube-to-NPT connection, accepting a 3/8-inch OD tube on the inlet and a 1/2-inch male NPT thread on the outlet. The body is constructed from plastic and plated brass, with nitrile rubber O-rings for sealing. Flow direction is out-type, meaning flow control is applied on the outlet side. This valve is rated for working pressures up to 113.76 psi and operates across a temperature range of 32 to 140 degrees F. HVAC technicians, pneumatic system installers, and industrial maintenance professionals are the typical end users.

This flow control valve is suited for pneumatic control circuits in light commercial and residential HVAC applications, as well as general industrial pneumatic systems where directional airflow regulation is required. The right-angle body orientation makes it well-suited for installations with limited inline space or where tubing must change direction at the connection point. The 3/8-inch tube OD inlet pairs with standard push-to-connect or compression-style pneumatic tubing commonly used in control and actuation circuits.

Key Features

• Right-angle body configuration for space-constrained pneumatic installations
• Tube x NPT connection: 3/8-inch OD tube inlet, 1/2-inch male NPT outlet
• Out-type flow control regulates flow on the exhaust or outlet side
• Maximum working pressure of 113.76 psi
• Operating temperature range: 32 to 140 degrees F
• Plastic and plated brass body with nitrile rubber O-rings for durability and seal integrity

Compatibility

Designed as an OEM-style replacement or new-installation flow control valve for pneumatic tubing circuits using 3/8-inch OD tube and 1/2-inch NPT male threaded connections.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic control systems. Depressurize the pneumatic circuit fully before removing or installing any flow control valves. Verify thread type and tube OD sizing before assembly to avoid connection failure. Follow applicable mechanical and pneumatic codes for the jurisdiction in which the system is installed.
