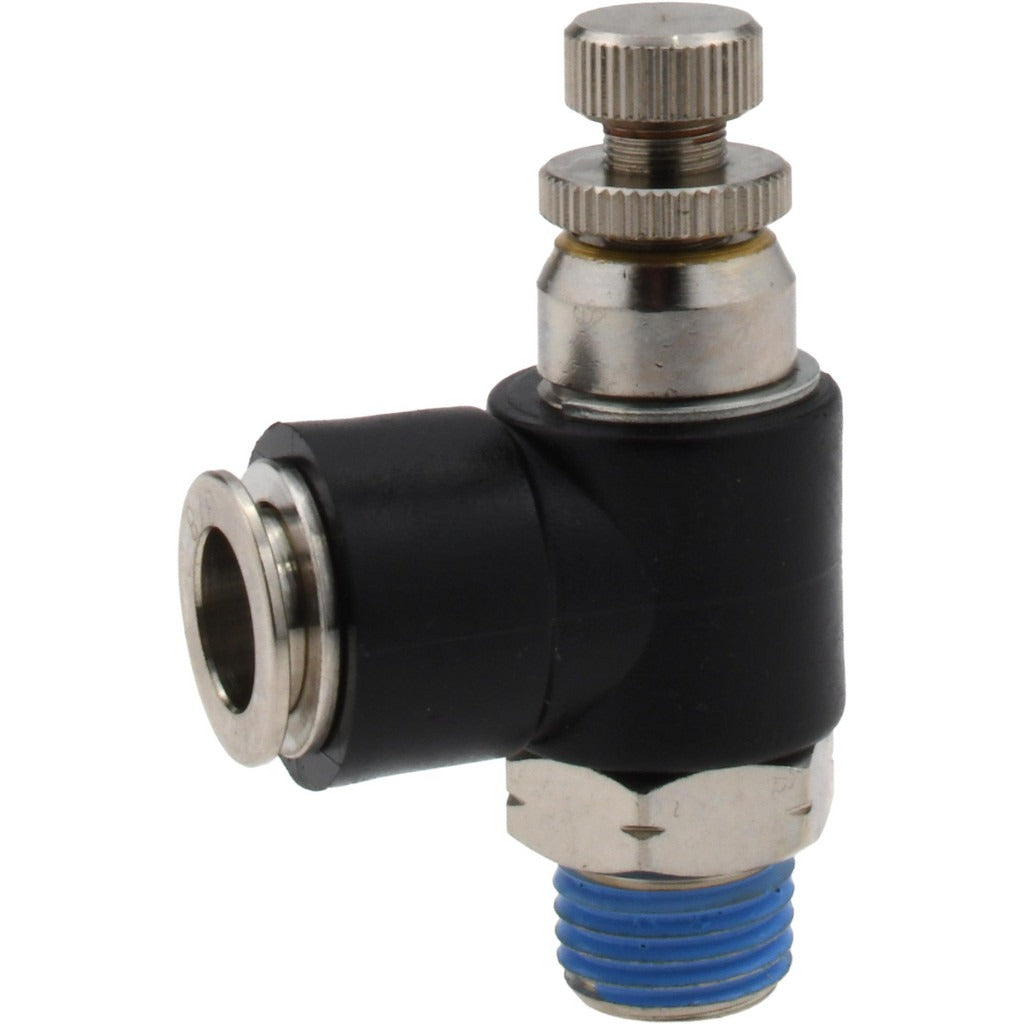

Pro-source 4827100815PRO Right Angle Flow Control Valve

Product Description

The PRO-SOURCE 4827100815PRO is a right angle air flow control valve designed to regulate airflow in pneumatic plumbing and fluid control lines. The valve features a 3/8 inch tube outside diameter (OD) inlet and a 1/4 inch male thread connection, making it a straightforward inline component for controlling flow direction and rate at a 90-degree angle. At 0.132 pounds, the unit is compact and lightweight, measuring 1.42 inches in length, 1.81 inches in height, and 0.75 inches in width. Plumbers, pipefitters, and pneumatic system technicians typically install this valve where a right-angle transition and flow regulation are both required in a single fitting.

This valve is suited for pneumatic and fluid control applications where tubing must change direction while maintaining flow regulation. The right angle body style is particularly useful in tight enclosures or panel-mounted systems where straight inline valves cannot be routed cleanly. It is compatible with 3/8 inch OD tubing and threads into 1/4 inch male-threaded ports, making it applicable across a range of light industrial, HVAC, and plumbing pneumatic control circuits.

Key Features

• Right angle body routes tubing at 90 degrees while controlling airflow in a single component
• 3/8 inch tube OD connection for standard pneumatic and fluid tubing
• 1/4 inch male thread port for direct integration into threaded manifolds or valve bodies
• Compact footprint at 1.42 x 0.75 x 1.81 inches suits space-restricted installations
• Lightweight construction at 0.132 pounds minimizes load on tubing and fittings

Compatibility

Designed as an OEM-style replacement or new-installation flow control valve for pneumatic and fluid systems using 3/8 inch OD tubing with 1/4 inch male threaded ports.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the pneumatic or fluid line completely before removing any existing fitting or valve. Verify thread type and tube OD compatibility before installation to avoid leaks or fitting damage. Follow applicable codes including ASME and local mechanical codes for pneumatic and compressed-air system work.
