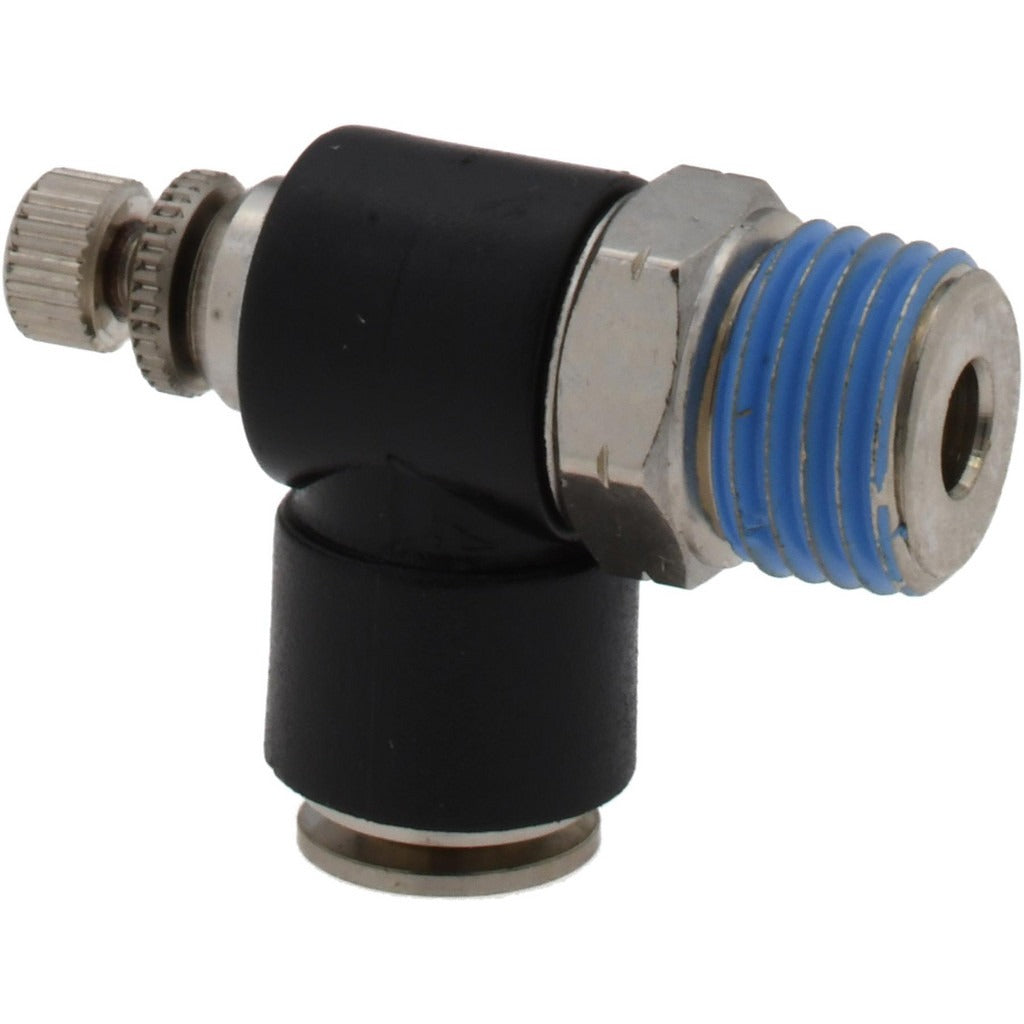

Pro-source 4827100615PRO Air Flow Control Valve 1/4 in

Product Description

The PRO-SOURCE 4827100615PRO is a right-angle air flow control valve designed to regulate airflow in pneumatic lines and compressed-air systems. The valve accepts a 1/4-inch tube OD and includes a 1/4-inch male thread connection, making it suitable for inline flow adjustment in a compact, space-saving right-angle configuration. At 0.084 pounds and measuring 1.34 inches tall by 1.04 inches long by 0.55 inches wide, this valve fits easily into tight panel or manifold installations. Licensed tradespeople and pneumatic system technicians use this type of valve to fine-tune actuator speed or cylinder feed rates without replacing larger components.

This valve is used in pneumatic control systems found in light industrial, HVAC automation, and mechanical equipment panels. The right-angle body style is specified when straight inline fittings cannot clear adjacent components or enclosure walls. The 1/4-inch tube OD size is one of the most common pneumatic line sizes, making this valve a practical stocking item for service technicians working on compressed-air-controlled dampers, actuators, and similar devices.

Key Features

• Right-angle body routes tubing at 90 degrees to save space in tight installations
• 1/4-inch tube OD inlet for standard push-to-connect or compression fittings
• 1/4-inch male thread outlet for direct port or manifold mounting
• Compact footprint: 1.34 inches height, 1.04 inches length, 0.55 inches width
• Lightweight at 0.084 pounds, suitable for panel and enclosure mounting
• Flow control type allows adjustable restriction of airflow in one direction

Compatibility

Designed as an OEM-style replacement or service fitting for pneumatic control systems using 1/4-inch OD tubing with 1/4-inch male threaded port connections.

Installation Notes

Installation is typically performed by a pneumatic systems technician or licensed mechanical contractor. Depressurize the pneumatic circuit fully before removing or installing any flow control valve. Confirm thread type and pitch on the receiving port before installation to avoid cross-threading or seal failure. Follow applicable codes and equipment manufacturer guidelines for compressed-air system service.
