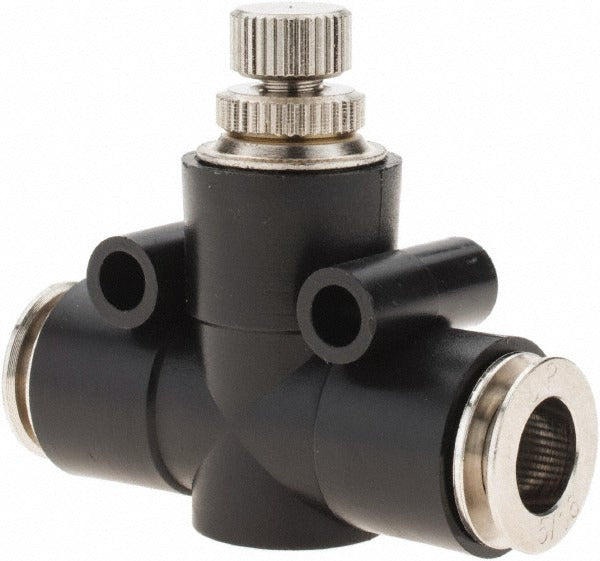

Pro-source 4826801914PRO In-line Air Flow Control Valve

Product Description

The PRO-SOURCE 4826801914PRO is an in-line air flow control valve designed to regulate airflow within pneumatic tubing systems. It accepts 5/16-inch tube outside diameter connections and is rated for pressures from 0 to 113.76 psi. The valve body is constructed from a combination of techno polymer, brass, and steel, providing durability across a range of industrial and light-commercial pneumatic applications. Licensed technicians and industrial maintenance professionals typically install and service this type of fitting. At 0.088 pounds, the valve is compact and lightweight, measuring approximately 2.13 inches in length, 1.83 inches in height, and 0.63 inches in width.

This in-line flow control valve is suited for pneumatic control circuits where precise airflow regulation is required. It fits directly into pneumatic tubing runs using 5/16-inch OD tubing and is appropriate for use in compressed air systems found in HVAC controls, automated equipment, and light industrial machinery. The valve is sold individually and is intended for professional installation in systems where consistent air flow management is critical to proper operation.

Key Features

• In-line flow control design for direct integration into pneumatic tubing runs
• Accepts 5/16-inch tube outside diameter connections
• Rated from 0 to 113.76 psi operating pressure
• Multi-material construction: techno polymer, brass, and steel for durability
• Compact form factor at 2.13 inches long and 0.088 pounds

Compatibility

Designed as an OEM-style replacement or direct-fit addition for pneumatic systems using 5/16-inch OD tubing operating within a 0 to 113.76 psi pressure range.

Installation Notes

This valve should be installed by a qualified technician familiar with pneumatic control systems. Depressurize the entire pneumatic circuit and relieve all residual air pressure before removing or installing any flow control components. Ensure tubing is cut cleanly and squarely before insertion to maintain a proper seal. Verify the valve orientation and flow direction markings before final connection.
