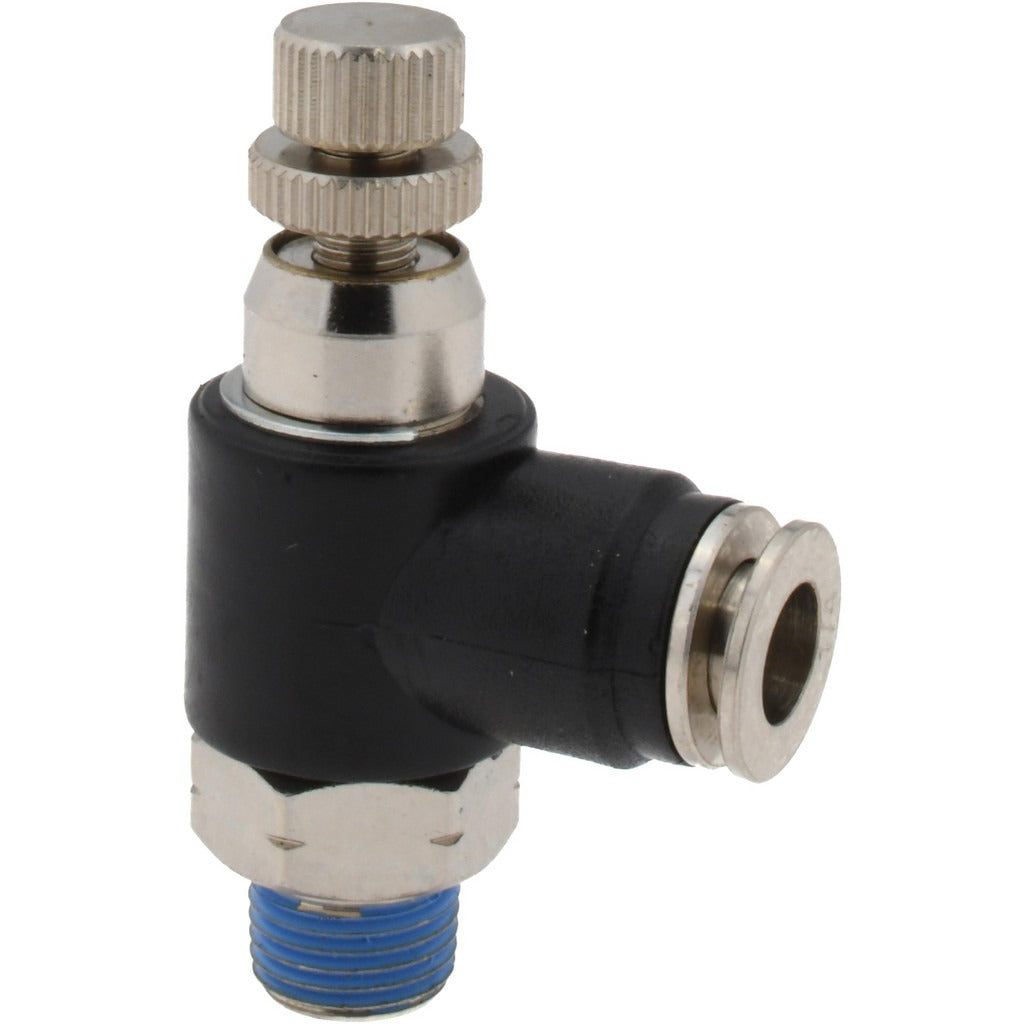

Pro-source 4826600314PRO Air Flow Control Valve Compact Banjo

Product Description

The PRO-SOURCE 4826600314PRO is a compact banjo-style air flow control valve designed to regulate airflow in pneumatic tubing systems. It accepts 1/4 inch outside diameter tubing and connects via a 1/8 inch male thread fitting. At 0.079 pounds and measuring 1.22 inches in length, 0.55 inches in width, and 1.5 inches in height, this valve fits into tight installation spaces where a standard inline flow control is impractical. Pneumatic technicians and automation maintenance professionals install this type of valve to meter air supply to actuators, cylinders, and other pneumatic components, providing precise flow restriction without requiring inline body space.

This compact banjo flow control valve is suited for light industrial and automation applications where space constraints demand a low-profile fitting. It is typically installed directly at the port of a pneumatic cylinder, solenoid valve, or similar component to provide one-way or bidirectional flow adjustment at the point of use. Its small form factor makes it a practical choice for panel builds, compact actuator assemblies, and tight-clearance pneumatic circuits found in both production equipment and process control systems.

Key Features

• Compact banjo body style saves space at the pneumatic component port
• Accepts 1/4 inch OD tubing for standard pneumatic circuit compatibility
• 1/8 inch male thread connection for direct port mounting
• Lightweight construction at 0.079 pounds for use in weight-sensitive assemblies
• Flow control type allows restriction adjustment at the point of use

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic systems using 1/4 inch OD tubing and 1/8 inch male thread port connections.

Installation Notes

Installation is typically performed by pneumatic technicians or automation maintenance personnel. Depressurize the pneumatic circuit completely before removing or installing any flow control valve. Apply appropriate thread sealant to the male thread per system requirements, and avoid over-tightening the banjo fitting to prevent cracking the valve body. Verify airflow direction and adjustment range after installation before returning the system to service.
