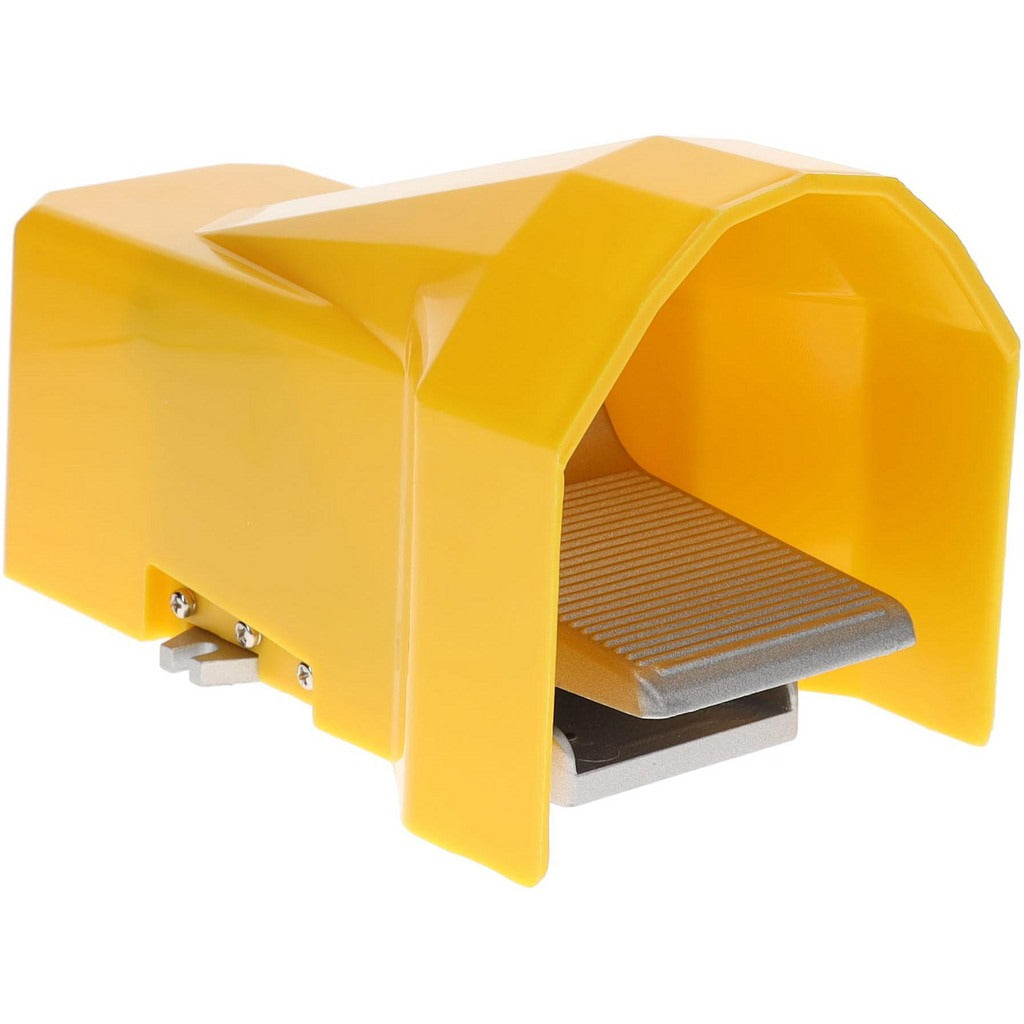

Pro-source 4750250511PRO Foot Pedal Valve 5-way 2-position

Product Description

The PRO-SOURCE 4750250511PRO is a manually operated, spring-actuated foot pedal valve designed for pneumatic control applications. This 5-way, 2-position valve features a protective guard over the pedal to reduce the risk of accidental actuation. With a Cv rating of 0.65 and NPT threading, it delivers reliable directional control of compressed air flow. It is a direct-acting mechanical valve, requiring no electrical signal or solenoid - actuation is purely mechanical through foot pressure and spring return. Installation and maintenance are handled by pneumatic technicians, pipefitters, or industrial maintenance personnel.

This valve is suited for industrial and manufacturing environments where hands-free actuation is required, such as clamping fixtures, press controls, lift tables, and other pneumatic automation equipment. The foot pedal guard helps protect the actuator in shop-floor environments where incidental contact from tools, debris, or foot traffic is a concern. NPT threaded ports make it compatible with standard compressed-air plumbing systems.

Key Features

• 5-way, 2-position directional control valve for pneumatic circuits
• Spring-return foot pedal actuator with protective guard
• Cv rating of 0.65 for consistent, metered airflow
• NPT threaded ports for standard compressed-air piping compatibility
• Fully mechanical operation - no electrical components or wiring required
• 5-port design supports double-acting cylinder control in a single valve body

Compatibility

Designed as an OEM-style replacement or new-installation foot pedal valve for industrial pneumatic systems using NPT-threaded compressed-air plumbing.

Installation Notes

Installation should be performed by a qualified pneumatic technician or pipefitter familiar with compressed-air system design. Depressurize and lock out the air supply before connecting or disconnecting any valve in the circuit. Ensure all NPT threaded connections are properly sealed with thread sealant rated for pneumatic service. Verify that system operating pressure and flow requirements are within the valve's rated Cv and pressure range before placing the valve in service.
