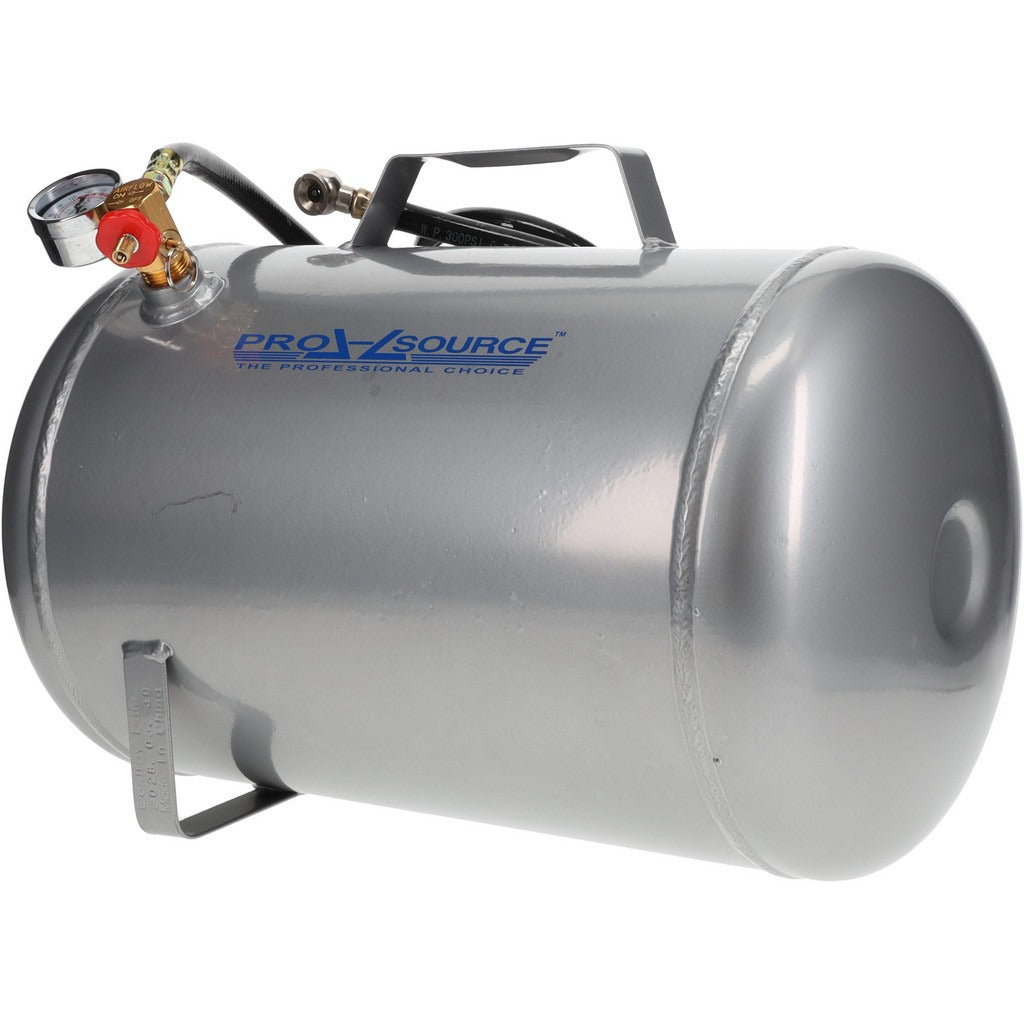

Pro-source 3548600576PRO Air Tank Receiver 5 Gal 125 Psi

Product Description

The PRO-SOURCE 3548600576PRO is a 5-gallon compressed air tank receiver rated for a maximum working pressure of 125 psi. It serves as a secondary storage vessel in compressed air systems, buffering compressor output to reduce short-cycling and maintain downstream pressure consistency. The tank features a 1/2-inch inlet and a 1/4 NPT port, making it compatible with standard air line fittings used in commercial and industrial pneumatic setups. At 14.3 pounds, it is compact enough for bench mounting or floor installation in tight mechanical rooms or service bays. HVAC technicians, plumbers, and general contractors commonly install these receivers to support pneumatic tools and control systems.

This air receiver is suited for light-duty to medium-duty compressed air applications in both residential and commercial settings. Typical installations include workshop compressor systems, pneumatic tool supply lines, and HVAC control air circuits. The compact 15.75-inch overall length and 9.45-inch depth allow it to fit in confined equipment rooms or alongside existing compressor units. It is appropriate for any trade application requiring supplemental air storage at pressures up to 125 psi.

Key Features

• 5-gallon capacity reduces compressor short-cycling in pneumatic systems
• 125 psi maximum working pressure suits standard shop and trade applications
• 1/2-inch inlet accommodates common compressed air supply connections
• 1/4 NPT port allows straightforward gauge or drain valve installation
• Compact overall dimensions support installation in space-limited areas

Compatibility

Designed as an OEM-style replacement or supplemental receiver for compressed air systems using standard 1/2-inch inlet and 1/4 NPT port fittings rated to 125 psi or below.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system safety requirements. Depressurize and lock out the air supply before making any connections to the receiver. Verify that all fittings and valves are rated at or above the system maximum working pressure before charging the tank. Local mechanical codes and ASME guidelines for pressure vessel installation should be followed.
