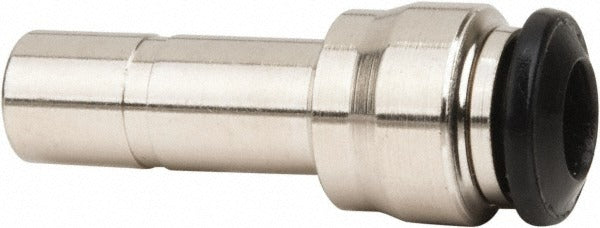

Pro-source 2559006465PRO Push-to-connect Tube Stem Fitting

Product Description

The PRO-SOURCE 2559006465PRO is a push-to-connect tube to stem tube fitting designed for fast, tool-free connections in compressed air and water systems. Constructed from nickel-plated brass, it offers corrosion resistance and durability in demanding trade environments. The fitting connects a tube with a 4.00 mm outside diameter to a stem with a 6.00 mm outside diameter. It is rated for a maximum working pressure of 250 psi and handles temperatures from 0 degrees F to 160 degrees F. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting in both residential and light commercial fluid and pneumatic service lines.

This fitting is suited for use with compressed air and water lines in a variety of installation scenarios, including pneumatic control systems, HVAC pneumatic actuators, and low-pressure water distribution applications. The push-to-connect design eliminates the need for threaded assembly or solder, making it a practical choice for quick repairs and new installations. It is sold in a package quantity of 5, which suits both service calls and small-scale installation projects. The Buna O-ring seal provides reliable performance across the rated temperature and pressure range.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion
• Nickel-plated brass construction provides corrosion resistance
• Rated to 250 psi maximum working pressure
• Operating temperature range of 0 degrees F to 160 degrees F
• Buna O-ring seal for reliable fluid and air tight connections
• Compatible with both compressed air and water service

Compatibility

Designed for use with compressed air and water systems requiring a push-to-connect tube to stem fitting with a 4.00 mm tube outside diameter and a 6.00 mm stem outside diameter.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or HVAC technicians depending on the application. Depressurize and isolate the line before installing or removing any push-to-connect fitting. Ensure tubing is cut cleanly and squarely and that the tube end is fully seated to engage the internal collet and O-ring seal. Follow applicable IPC or NEC guidelines for the specific system type.
