Pro-source 2556511063PRO Push-to-connect Tube Fitting 3pk

Product Description

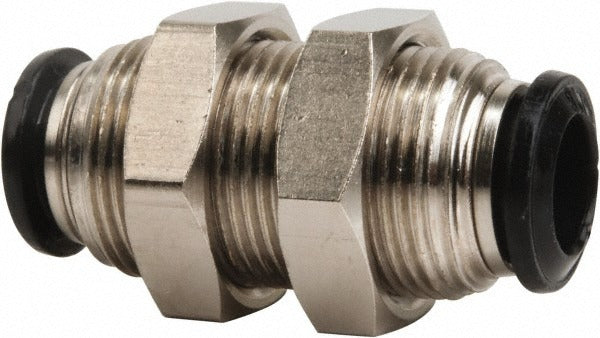

The PRO-SOURCE 2556511063PRO is a push-to-connect tube-to-tube fitting constructed from nickel-plated brass. It is rated for a maximum working pressure of 250 psi and accepts tubing with a 10 mm outside diameter. This fitting creates fast, tool-free connections in compressed air and water lines without the need for soldering, flaring, or compression sleeves. Each package contains 3 fittings. The Buna O-ring provides a reliable seal across a service temperature range of 0 to 160 degrees F. Plumbers, HVAC technicians, and industrial maintenance professionals install these fittings on pneumatic and fluid distribution systems where quick assembly and disassembly are required.

This fitting is suited for use in residential and commercial plumbing, compressed air distribution, and light industrial fluid systems. The push-to-connect design reduces installation time on both new construction and service calls. It is appropriate for potable water and compressed air lines where operating conditions fall within the rated pressure and temperature limits. Three fittings are included per package, making it a practical choice for multi-point installations or service inventory.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and release
• Nickel-plated brass body provides corrosion resistance for air and water service
• Rated to 250 psi maximum working pressure
• Buna O-ring seal for reliable performance across 0 to 160 degrees F
• Compatible with 10 mm outside diameter tubing
• Packaged in quantities of 3 per unit

Compatibility

Designed for use with compressed air and water systems using 10 mm outside diameter tubing. Suitable as an OEM-style or aftermarket replacement push-to-connect fitting in pneumatic and fluid distribution applications.

Installation Notes

Installation is performed by plumbers or HVAC technicians. Before servicing or replacing any fitting, shut off the system supply and relieve all pressure from the line. Ensure the tube end is cut square, deburred, and fully inserted to the fitting stop for a proper seal. Verify that the tubing outside diameter and pressure rating are within the fitting specifications before placing the system back in service.
