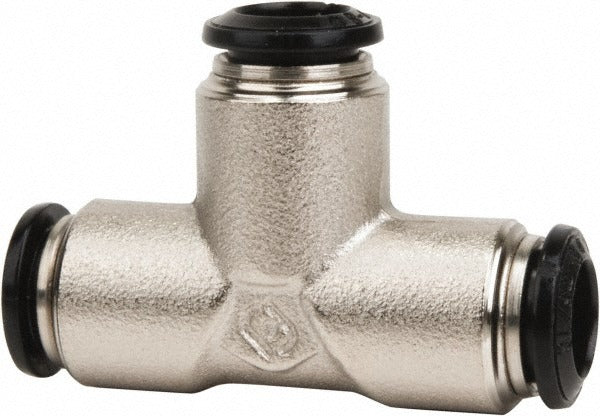

Pro-source 2556011263PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2556011263PRO is a push-to-connect tube-to-tube fitting designed for fast, tool-free connections in fluid and pneumatic systems. Constructed from nickel-plated brass, it handles a maximum working pressure of 250 psi and operates across a temperature range of 0 to 160 degrees F. The fitting accepts a 12 mm outside diameter tube and uses a Buna O-ring seal for reliable, leak-resistant performance. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in both new construction and service work where quick, repeatable connections are required.

This fitting is suited for residential and light commercial applications involving compressed air lines and water distribution systems. The push-to-connect design eliminates the need for solder, clamps, or threaded connections at the joint, making it a practical choice for retrofit installations, equipment connections, and maintenance work where downtime needs to be minimized. Each package contains 3 fittings. It is compatible with compressed air and water service lines using 12 mm OD tubing.

Key Features

• Nickel-plated brass construction resists corrosion in air and water service
• Push-to-connect design allows fast, tool-free tube insertion
• Rated to 250 psi maximum working pressure
• Buna O-ring seal provides reliable, leak-resistant connection
• Wide operating temperature range: 0 to 160 degrees F
• Tube x tube configuration for in-line connections

Compatibility

Designed for use with compressed air and water systems using 12 mm outside diameter tubing. Suitable for light commercial and residential pneumatic and plumbing applications.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters in accordance with applicable local plumbing codes and IPC guidelines. Before installing or removing this fitting, shut off and depressurize the supply line completely. Ensure tube ends are cut cleanly and squarely, and that tubing is fully inserted to the fitting stop for a secure connection. Do not exceed the rated working pressure or temperature limits of the fitting.
