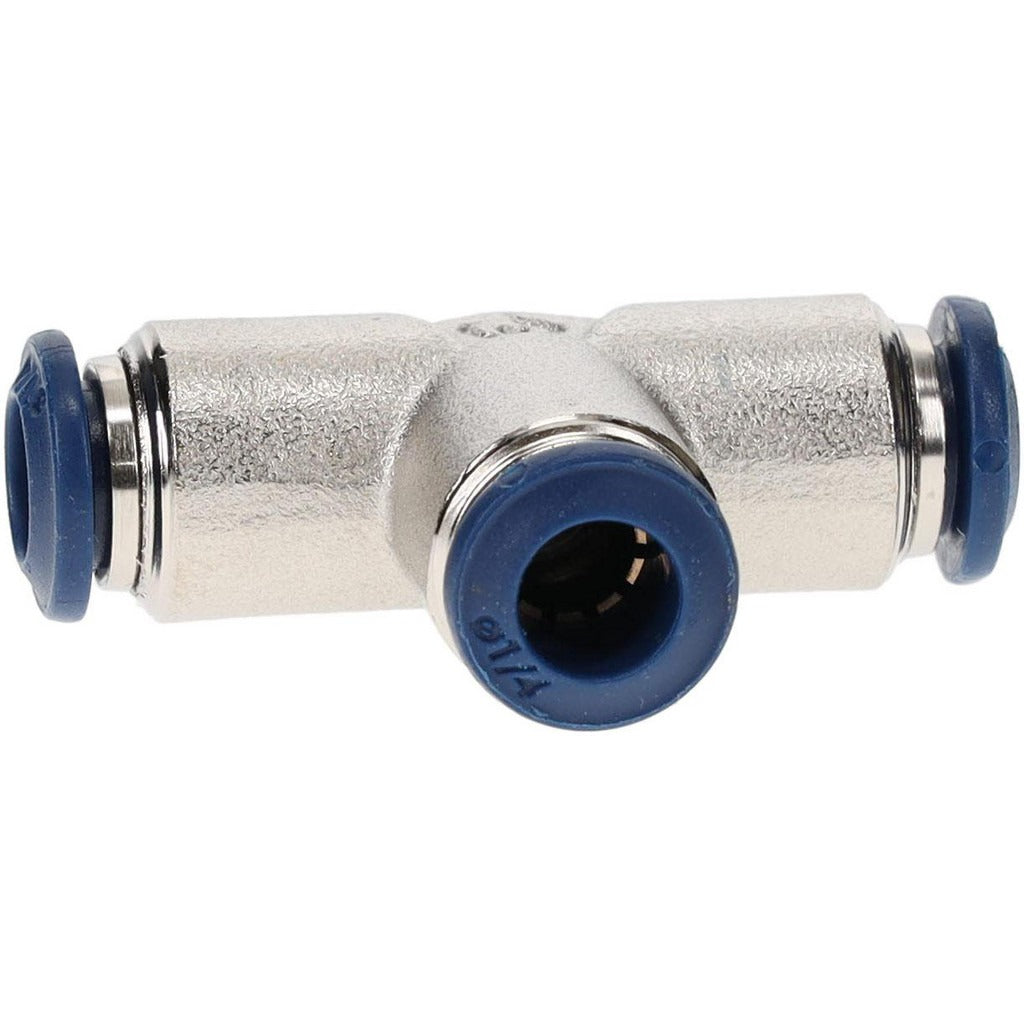

Pro-source 2556001465PRO Push-to-connect Tube Fitting 5-pack

Product Description

The PRO-SOURCE 2556001465PRO is a push-to-connect tube-to-tube fitting designed for fast, tool-free inline connections in fluid and pneumatic plumbing systems. Constructed from nickel-plated brass, it accepts tubing with a 1/4 inch outside diameter and is rated for a maximum working pressure of 250 psi. The Buna O-ring provides a reliable seal across a wide temperature range, from 0 degrees F to 160 degrees F. This fitting is commonly installed by plumbers, HVAC technicians, and industrial maintenance professionals wherever a quick, leak-free tube connection is required without soldering or compression fittings. Each package contains 5 fittings.

This fitting is suited for residential and light commercial applications involving pneumatic lines, refrigerant-free fluid transfer, or instrument tubing. Its push-to-connect design allows rapid field installation, making it well-suited for service calls and retrofit work where minimizing labor time matters. The nickel-plated brass construction provides corrosion resistance appropriate for dry or mildly humid environments. Compatible with 1/4 inch OD tubing in systems operating within the rated pressure and temperature limits.

Key Features

• Push-to-connect design allows tool-free, inline tube-to-tube connection
• Nickel-plated brass body offers corrosion resistance and durability
• Rated to 250 psi maximum working pressure
• Operating temperature range: 0 degrees F to 160 degrees F
• Buna O-ring for reliable sealing performance
• Sold in a convenient pack of 5 fittings

Compatibility

Designed for use with 1/4 inch OD tubing in push-to-connect tube-to-tube plumbing and pneumatic applications operating within rated pressure and temperature limits.

Installation Notes

Installation is performed by plumbers or HVAC technicians in accordance with applicable IPC or system-specific piping guidelines. Before connecting or disconnecting fittings, depressurize the line and verify the system is shut down. Ensure tubing is cut cleanly and squarely and that the OD matches the 1/4 inch specification before insertion. Do not exceed the rated working pressure of 250 psi or the maximum temperature of 160 degrees F during operation.
