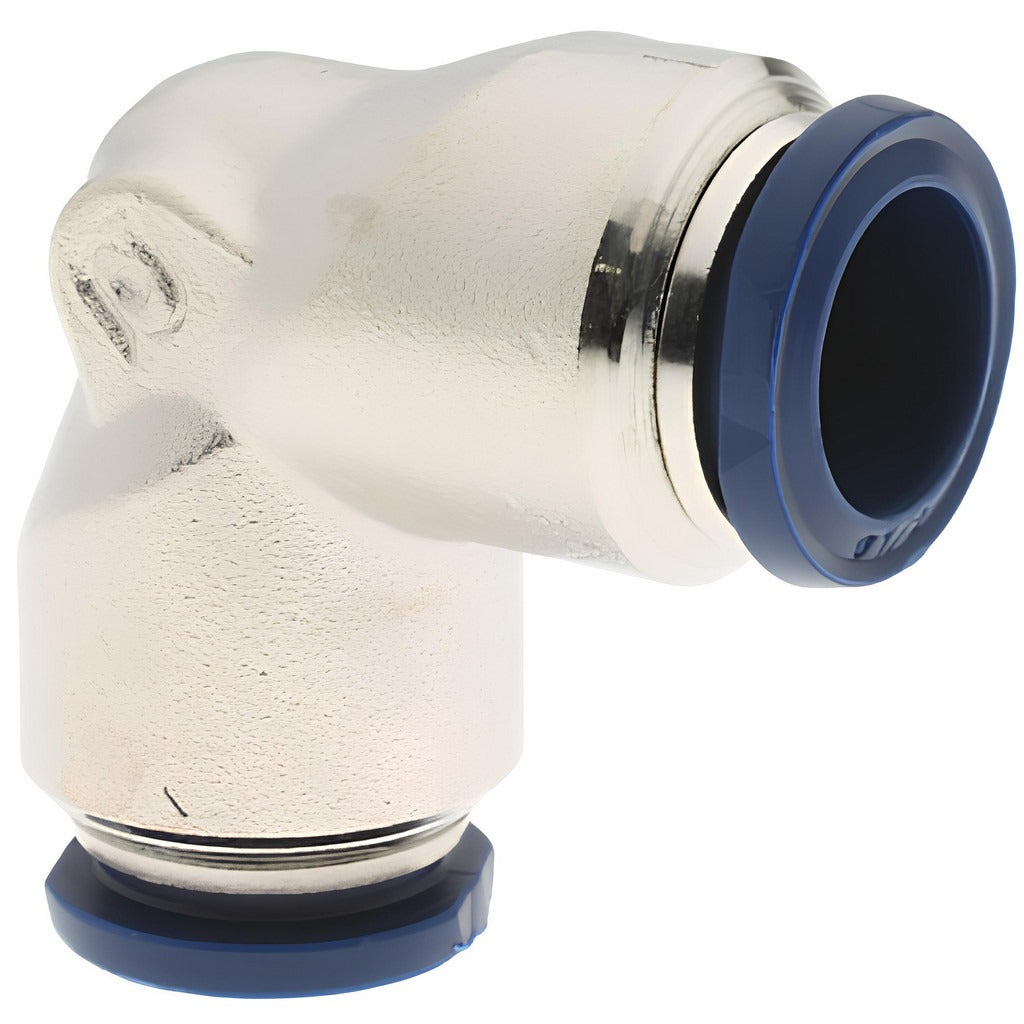

Pro-source 2555901263PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555901263PRO is a push-to-connect tube-to-tube fitting designed for fast, tool-free connections in fluid and pneumatic line installations. Constructed from nickel-plated brass, it accepts 1/2-inch outside diameter tubing on both ends and is rated to 250 psi maximum working pressure. The fitting handles temperatures from 0 degrees F to 160 degrees F, making it suitable for a wide range of plumbing, HVAC, and light industrial applications. Buna O-rings provide the internal sealing. Plumbers, HVAC technicians, and pipefitters use this style of fitting when a secure, leak-free connection is needed without soldering or compression tooling.

This fitting is suited for residential and light commercial installations where 1/2-inch OD tubing runs are used in water supply, refrigerant line sets, or compressed air distribution within its rated pressure and temperature limits. The push-to-connect design speeds up installation in tight spaces or retrofit work where torch access is limited. Sold in a package quantity of 3.

Key Features

• Push-to-connect design allows tool-free, solder-free tube connections
• Nickel-plated brass construction resists corrosion and wear
• Rated to 250 psi maximum working pressure
• Operating temperature range of 0 degrees F to 160 degrees F
• Buna O-ring seal for reliable leak-free performance
• Accepts 1/2-inch OD tubing on both ends

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch OD tube-to-tube connections in plumbing, HVAC, and light industrial fluid or pneumatic systems operating within the rated pressure and temperature range.

Installation Notes

This fitting is installed by plumbers and HVAC technicians in accordance with applicable IPC and local mechanical codes. Shut off and depressurize the line before fitting installation or removal. Ensure tubing ends are cut cleanly and deburred before inserting into the push-connect body to achieve a proper seal. Do not exceed the rated working pressure or temperature limits of the fitting.
