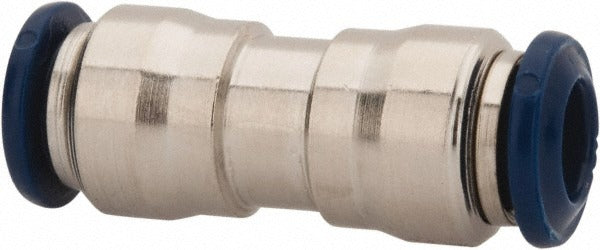

Pro-source 2555853265PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555853265PRO is a push-to-connect tube-to-tube fitting designed for fast, tool-free connections in compressed air and water systems. Constructed from nickel-plated brass with a Buna-N o-ring, it accepts 5/32-inch outside diameter tubing and is rated to 250 psi. The push-to-connect mechanism allows technicians and installers to make secure inline connections without threading, flaring, or compression tooling. This fitting is sold in a package of five units, making it practical for service kits and multi-point installations. It is appropriate for plumbing, pneumatic control, and light industrial fluid-handling work.

This fitting is suited for residential and light commercial applications involving compressed air distribution lines and water supply tubing. Typical install scenarios include pneumatic control circuits, instrumentation tubing runs, HVAC condensate or sensor lines, and general-purpose fluid conveyance where 5/32-inch OD tubing is specified. Compatible with compressed air and water service per the manufacturer specifications. The nickel-plated brass body provides corrosion resistance in damp mechanical room environments.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure retention
• Nickel-plated brass body for corrosion resistance in air and water service
• Buna-N o-ring seal compatible with compressed air and water media
• Rated to 250 psi working pressure
• Accepts 5/32-inch OD tubing in a tube-to-tube inline configuration
• Packaged in quantities of five for service and multi-point installations

Compatibility

Designed for use with compressed air and water service lines using 5/32-inch outside diameter tubing. Buna-N o-ring material is compatible with these media under standard working conditions.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or pneumatic system technicians. Before servicing any line, depressurize the system completely and verify zero pressure at the work point. Insert tubing squarely and fully into the fitting body until it seats; partial insertion will result in leaks or pull-out under pressure. Verify tube OD is within the specified tolerance and that cut ends are clean, square, and free of burrs before insertion.
