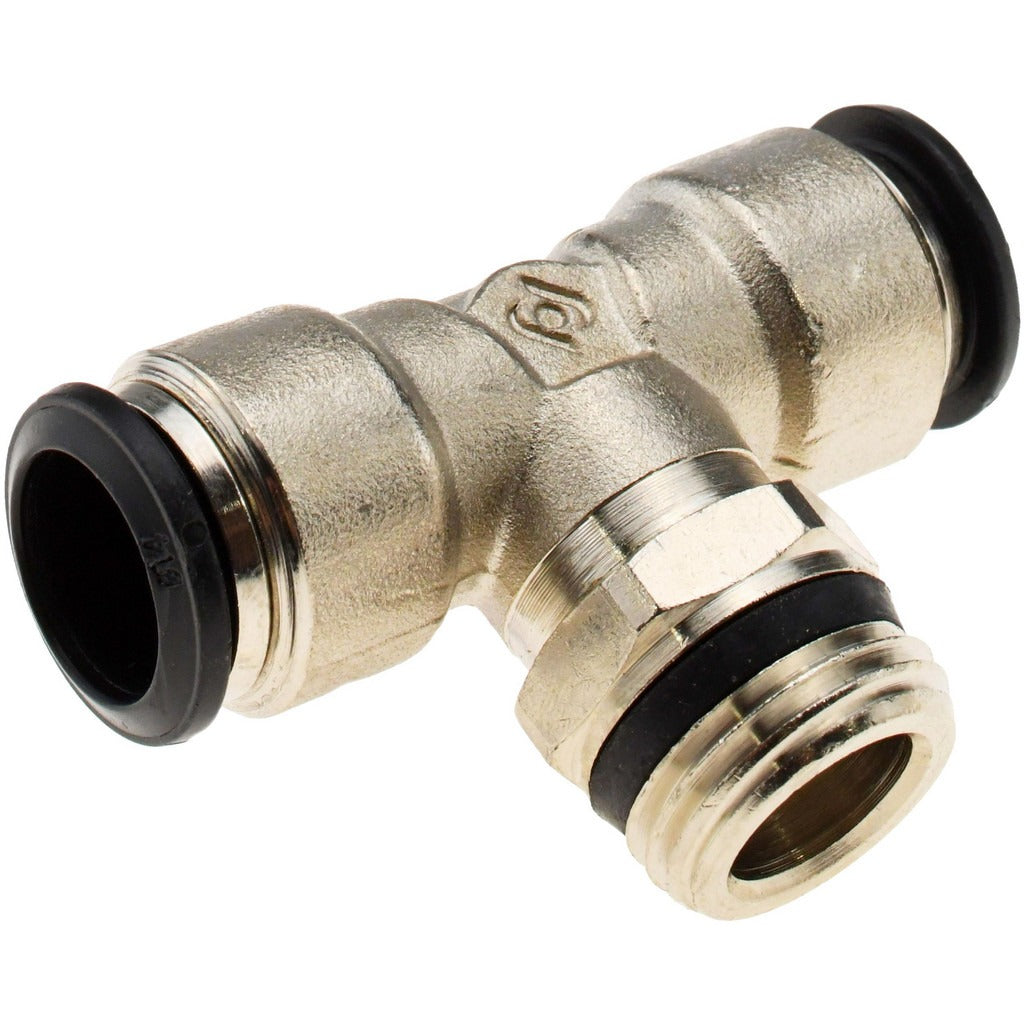

Pro-source 2555712263PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555712263PRO is a push-to-connect tube-to-universal-thread tube fitting made from nickel-plated brass. It provides a fast, tool-free tube connection on one end and a universal thread connection on the other, making it well suited for compressed air and water service lines. Rated to 250 psi, this fitting accommodates a 14 mm tube outside diameter and is sealed with a Buna-N O-ring for reliable performance across a range of fluid and pneumatic applications. Plumbers, pipefitters, and mechanical contractors install this fitting where quick tube connections to threaded ports are required.

This fitting is commonly used in residential and light commercial plumbing, compressed air distribution, and water supply applications. The push-to-connect design speeds up installation in tight spaces or where repeated disconnect and reconnect is expected. The universal thread end allows connection to standard threaded ports on valves, manifolds, and equipment in both compressed air and water systems. Each package contains 3 fittings, making it practical for multi-point installations or service stock.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure hold
• Universal thread end compatible with standard threaded ports on valves and equipment
• Nickel-plated brass construction provides corrosion resistance for air and water service
• Buna-N O-ring seal rated for use with compressed air and water media
• 250 psi pressure rating suitable for typical pneumatic and plumbing service lines
• Sold in a pack of 3 for multi-point installations or replacement stock

Compatibility

Designed for use with compressed air and water systems accepting a 14 mm tube outside diameter push-to-connect fitting with a universal thread port connection.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or mechanical contractor. Depressurize and isolate the line completely before removing or installing any fitting. Verify tube outside diameter and thread type match before assembly, and ensure the tube end is cut cleanly and squarely for a leak-free push-to-connect seal. Follow applicable IPC and local plumbing code requirements for pressure ratings and approved materials in the service environment.
