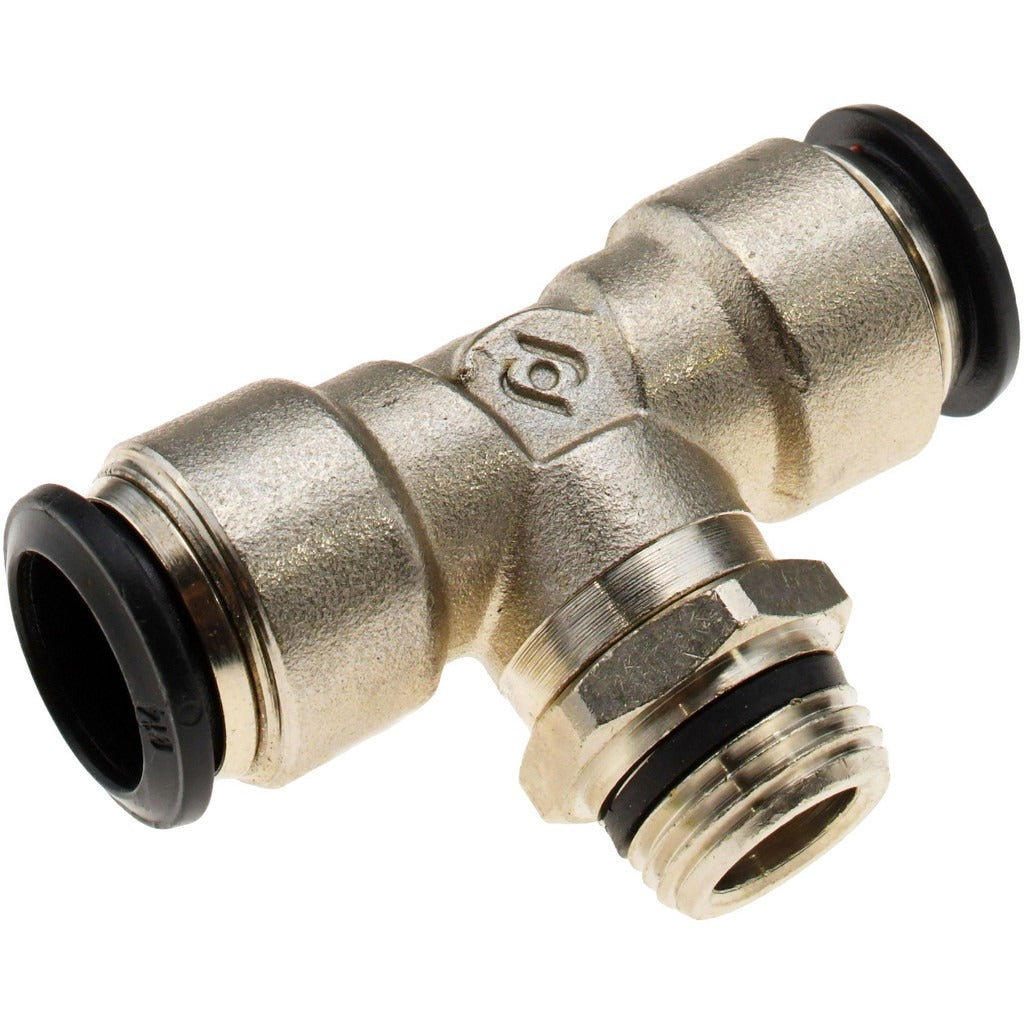

Pro-source 2555712063PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555712063PRO is a push-to-connect tube-to-universal-thread tube fitting designed for quick, tool-free tube connections in compressed air and water systems. Constructed from nickel-plated brass, it accepts a 14 mm outside diameter tube and features a Buna-N O-ring for a reliable, leak-resistant seal. Rated to 250 psi, this fitting is appropriate for moderate-pressure pneumatic and fluid lines. Licensed plumbers, HVAC technicians, and pipefitters typically install this style of fitting when servicing or assembling tubing runs that require fast makeup without ferrules or compression sleeves.

This fitting is suited for light commercial and residential compressed air distribution lines as well as potable and process water applications. The universal thread connection allows it to mate with a range of standard threaded ports without specialized tooling. Its compact profile makes it practical in tight panel installations and equipment enclosures where wrench clearance is limited. The package includes 3 fittings per unit, making it convenient for multi-connection service calls or small installation jobs.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and release
• Nickel-plated brass body resists corrosion in both air and water service
• Buna-N O-ring provides a secure seal against air and water leakage
• Rated to 250 psi for use in moderate-pressure systems
• Universal thread connection compatible with a range of threaded ports
• Packaged quantity of 3 per unit minimizes multiple small orders

Compatibility

Designed for use with compressed air and water tubing systems accepting a 14 mm outside diameter tube. The universal thread interface is intended as a general-purpose connection for standard threaded ports in pneumatic and fluid distribution assemblies.

Installation Notes

Depressurize and isolate the line before installing or removing any push-to-connect fitting. Ensure the tube end is cut cleanly and squarely, with no burrs, before inserting it into the fitting to achieve a proper seal. This fitting is installed by plumbers and HVAC mechanics and should comply with applicable local plumbing and mechanical codes. Do not exceed the 250 psi pressure rating or apply the fitting to fluids or gases not listed in the manufacturer specifications.
