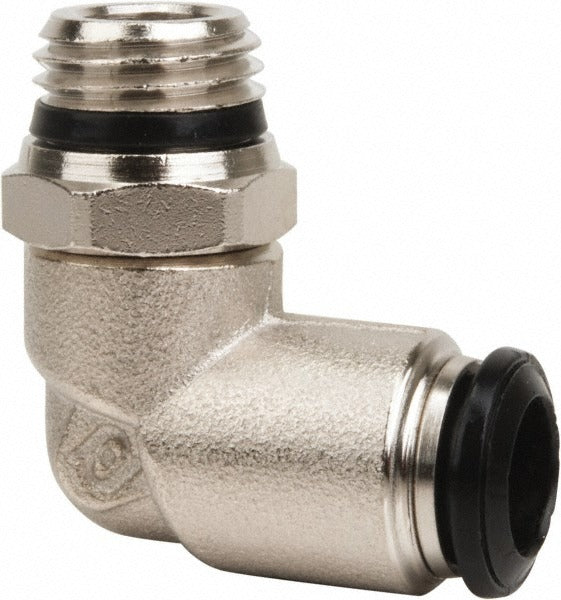

Pro-source 2555612063PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555612063PRO is a push-to-connect tube fitting with a universal thread connection, designed for use in compressed air and water systems. Constructed from nickel-plated brass, this fitting accepts a tube outside diameter of 14.00 mm and is rated for a maximum working pressure of 250 psi. The push-to-connect design allows for tool-free tube insertion, speeding up assembly and reducing installation time on pneumatic and fluid lines. Plumbers, pipefitters, and HVAC technicians working with compressed air distribution or water supply lines will find this fitting appropriate for both new installations and repair work.

This fitting is suited for residential and light commercial applications involving compressed air lines and water supply connections. The universal thread interface makes it adaptable across a range of standard threaded ports and manifolds. It is rated for service from 0 degrees F to 160 degrees F, covering typical indoor mechanical room and shop environments. Each package contains 3 fittings, making it practical for multi-point installations or keeping spares on hand during a service call.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Nickel-plated brass construction resists corrosion in air and water service
• Rated to 250 psi maximum working pressure
• Buna O-ring provides a reliable seal across the operating temperature range
• Compatible with compressed air and water media
• Operating temperature range of 0 degrees F to 160 degrees F

Compatibility

Designed for use with compressed air and water systems requiring a push-to-connect tube fitting with a universal thread connection. Accepts tubing with a 14.00 mm outside diameter.

Installation Notes

Installation is performed by plumbers, pipefitters, or HVAC technicians following applicable codes such as IPC or ASME B31.1 for compressed air and fluid piping. Depressurize and drain the system fully before removing or installing any fitting. Confirm tube outside diameter matches the fitting specification before insertion, and verify the tube end is cut cleanly and deburred to ensure a proper seal. Do not exceed the rated working pressure or temperature limits for the fitting.
